Product Details:
|
| Model: | IF-1050 | Total Thickness: | 1.0-3.0mm |
|---|---|---|---|
| Diameter: | 300-650mm | Length: | It Can Be Shipped In The Form Of Coil |
| Application: | IH Rice Cooker Bower | Feature: | High Strength, Good Plasticity, Good Corrosion Resistance, Good Oxidation Resistance, High Magnetic Conductivity, High Thermal Conductivity, Good Thermal Reflection Performance |
| High Light: | Dia 650mm Aluminum Composite Coil,3.0mm Thick Aluminum Composite Material,Anti Corrosion SS Aluminum Coil |
||

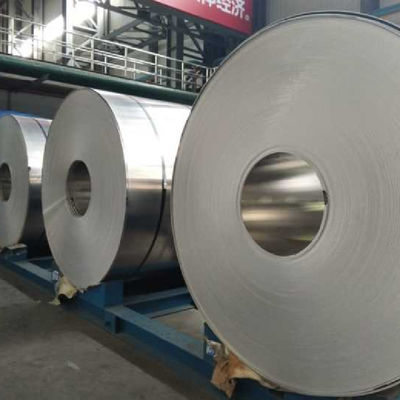

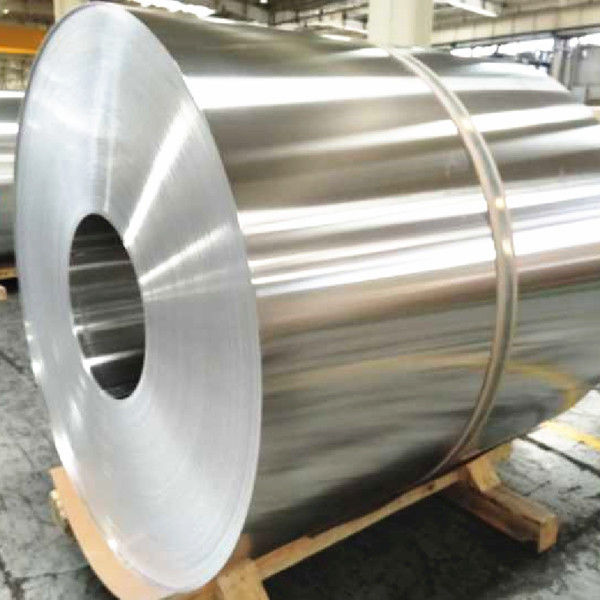

Product name:Stainless Steel Aluminum Composite Material For IH Rice Cooker Bower / Electric Pressure Cooker
Product description for Stainless Steel Aluminum Composite Material
This product is made of low carbon steel (DC01-DC07), stainless steel as the base material, aluminum as the auxiliary material, and can be single 1 double sided clad according to the needs of customers. The product has the advantages of high strength, good plasticity, good corrosion resistance, good oxidation resistance, high magnetic conductivity, high thermal conductivity, good thermal reflection performance and high recycling efficiency, and it is the best substitute for stainless steel. This product can be used for various surfaces processing and suitable for painting, coating and glazing; it can be used for cold bending, drawing, stamping and other down-stream processing.
Product use:
IH rice cooker bower, electric pressure cooker, pan, smart phone metal frame, battery box bottom plate, car radiator and other industrial applications.
We can customize R&D and produce multilayer metal composite materials with different combinations and proportions,which can achieve 1-8 series aluminum alloys and copper,steel,stainless steel, titanium, nickel and other metal composites, we can develop aluminum-based, steel-based, copper based and other series of metal composite materials for customers.
At present, the company's leading products are copper-aluminum,steel-copper,aluminum-steel, aluminum-copper, aluminum-titanium, and other metal composite materials; product specifications include plate, strip, and foil series. Product specifications: (0.03-10) mm x (20 -1050) mm.
The production design has an annual output of 30,000 tons of composite materials. The main equipment is
2 1650 hot-dip continuous casting and rolling,1250mm,650mm2,215050/1650 cold rolling mills, 8 hood annealing furnaces, 2 continuous heating and annealing furnaces pull-bend straightening, Cross sliing machine, washing machine and other ancillary equipment.
Specification for Stainless Steel Aluminum Composite Material
| Model | Specification | ||||
| IF-1050 | Thickness(mm) | Thickness ratio | Diameter(mm) | ||
| 1.0-3.0 | 1.3-1.8(IF)+0.2(1050) | 300-650 | |||
| Mechanical property | |||||
| Tensile strength(MPa) | Elongation rate(%) | Peel strength(N/mm) | |||
| 180 minimum | 20% minimum | 20 | |||
Our products are widely used in new energy vehicle batteries, 5G mobile communications, kitchen utensils (IH rice cookers, high-conductivity stainless steel woks, etc.), photovoltaics, LEDs, electronics, and construction.
First class testing equipment:
The laboratory is equipped with metallographic microscope, direct reading spectrometer, universal tensile sample machine, salt spray test box, transmission electron microscope, peel tester, hardness tester, atom probe and other equipment.
Production equipment:
650mm Rolling mill
Bell Type Annealing Furnace
1250mm Rolling Mill
Oxygen-free Hot-plating Continuous Casting and Rolling Production Line
