Product Details:
|
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Bent | Surface: | Coating/Insulation |
| Thickness: | 1-10mm | Width: | 8-200mm |
| Length: | According To Customers' Requirement | Applications: | New Energy Vehicle Battery Cooling |
| Process: | Bending/Coating | ||
| High Light: | Microchannel Aluminum Extruded Tube,H111 Temper Aluminum Extruded Tube,3003 aluminum extrusion tube |
||

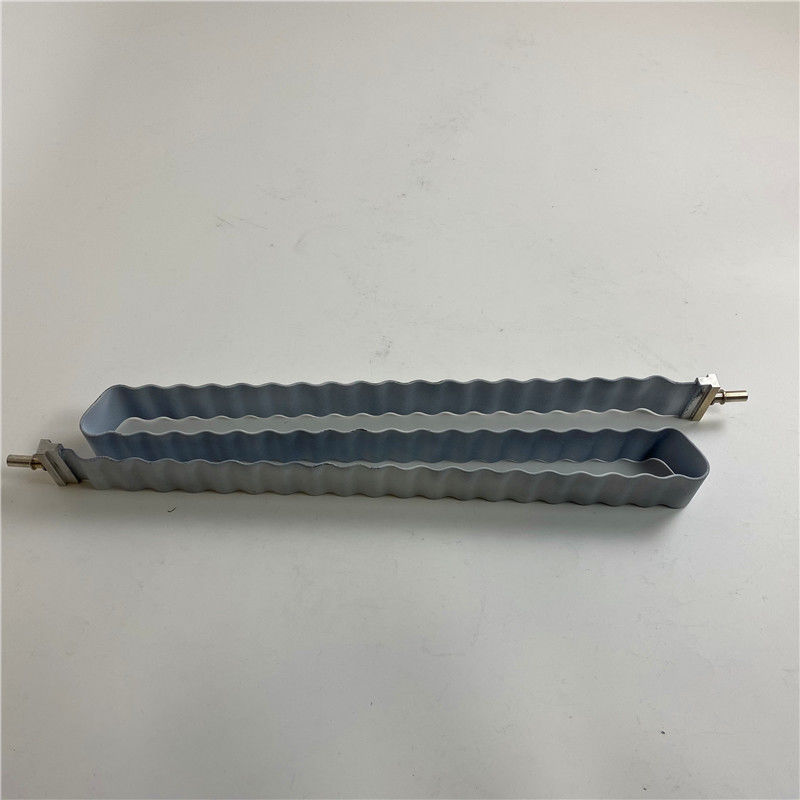

3003 Microchannel Aluminum Extruded Tube For New Energy Vehicle Battery Cooling
1. Product Introduction:
The Aluminium Multi Port Extruded tubes,also called micro-channel aluminum tubes,are unique tubes developed with highly refined manufacturing quality.
With their large internal surface area, they can achieve more efficient heat transfer and hence are widely used in highly effective heat exchangers.
2. Further process on the tube:

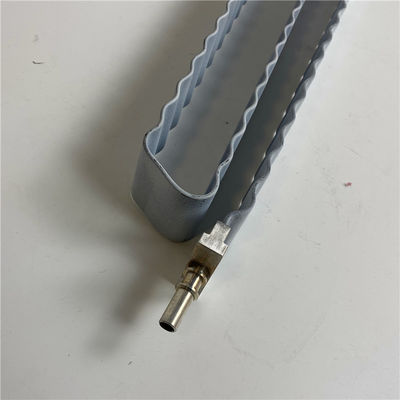

We could make further process on the Aluminum Extruded Tube,such as coating and bending and making inlet/outlet connections on the tube end,which can increase the touching area with the batteries in order to increase the heat transfer efficiency.
According to the temperature control requirements of battery pack,our company have developed a series of products,including brazing type water cooling plate,extrusion type water cooling plate and roll bond type cooling plate.They have to go through stamping,bending,welding,surface treatment,machining and other processes.Relying on our strong design team and project management team,as well as the production support with many customers in China and oversea countries,we have accumulated first-hand experience,which will surely make your project fall into the ground most quickly and reliably.It has always been our mission that using materials to make technology come true.
The Aluminium Multi Port Extrusion (MPE) or microchannel tube is unique tube developed with the highest manufacturing quality and is characterized by the following properties:
1) Low weight
2) Excellent conductor of heat and electricity
3) High corrosion resistance
4) High recycling value
5) High surface quality
6) High pressure resistance
3. Commonly used material chemical composition
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
4. Supply state and mechanical properties
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Application:New Energy Vehicles Battery Pack Cooling
6.FAQ:
Q: Are you a trading company or manufacturer?
A:Yes,we are a factory with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
