Product Details:
|
| Product Name: | Serpentine Aluminum Tube Extrusion | Alloy: | 3003,3102,1100,1050 |
|---|---|---|---|
| Application: | New Energy Vehicle Battery Cooling | Temper: | O,F,H111,H112 |
| Shape: | Serpentine/Bent/Snake Shape | Surface: | Coating/Insulation/Film |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Process: | Bending/Coating/Welding/Stamping/Extrusion | Packing: | Ply-wood Box Specialized For Export |
| High Light: | 1100 Aluminium Cold Plate,Serpentine Aluminium Cold Plate,F Temper 1100 Aluminum Plate |
||

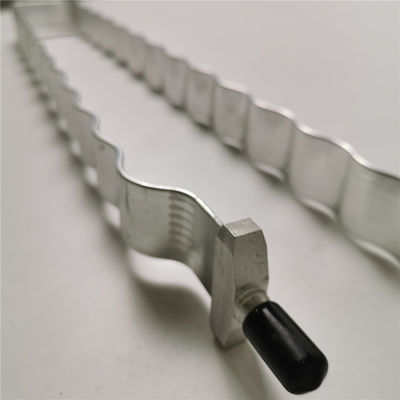

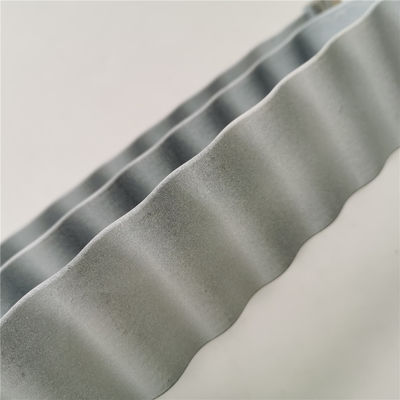

Serpentine Aluminum Tube Battery Management Aluminum Cooling Plate
1. Product Introduction:
Our Serpentine Aluminum Tube Battery Management Aluminum Cooling Plate is actually made of Micro-channel Extruded Aluminium Tubes,we also call it multiport aluminum tubes or aluminum tube extrusions, which are unique tubes developed with highly refined manufacturing quality. According to customers' different requirements the tube structures can be customized and the tube size can be controlled strictly by our precise toolings. We are having rich experience in the tooling making and calibration. With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.
Besides, we also have professional R&D team providing the customized solutions and helpful recommendation according to customers' specific requirements.
Another, we could also provide tooling design service together with sample supply for prototype manufacturing. Here you can find one stop sourcing for short sample delivery time and bulk orders cost efficiency, because we could combine our supply chain with brazing technology, extrusion technology, CNC processing, painting, stamping and welding etc.
2. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Application:
Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate,below some application for your reference.
5. Products for your reference:

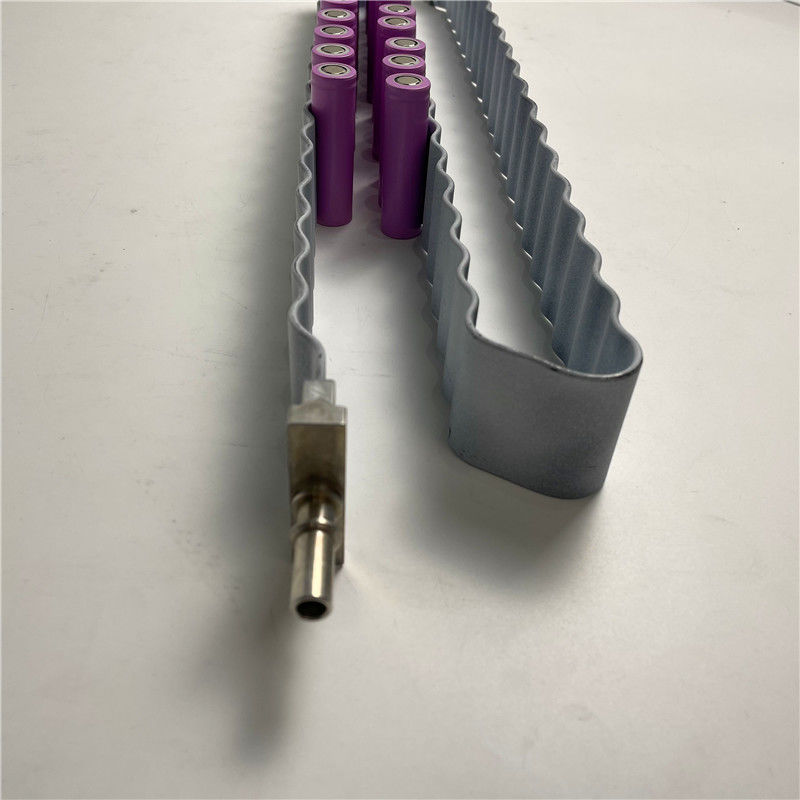

Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
6. Our advantages
1. Since 2004, we have rich experience in this industry in China;
2. Good reputation in household foil areas;
3. We started our production from aluminum ingot, so we can control the quality as well;
4. We have our own development department for new material research;
5. All parts of ladder is self manufacturing, we have price advantage.
6. Good experience and cooperation with big clients in the world;
7. With Certificate ISO9001-2008;
8. Sample order is acceptable;
9. High performance cost ratio;
10. Fast delivery time;
11. Good communication skills, and good service and understandings for customers.
