Product Details:
|
| Product Name: | Extruded 3003 Aluminum Serpentine Tubes For Sustainable Energy Power Generation | Alloy: | 3003,4343,3102,1100,1050,6061 Etc |
|---|---|---|---|
| Application: | Sustainable Energy Power Generation Cooling | Shape: | Serpentine/Bent/Snake Shape |
| Temper: | O,F,H111,H112 Etc | Surface: | Coating/Insulation/Film Etc |
| Specification: | Based On Customers' Requirements | Process: | Bending/Coating/Welding/Stamping/Extrusion |
| High Light: | 3003 Aluminum Serpentine Tube,Extruded 3003 Aluminum Tube,Extruded Aluminum Serpentine Tube |
||
Extruded 3003 Aluminum Serpentine Tubes for Sustainable Energy Power Generation
1. Product Introduction:

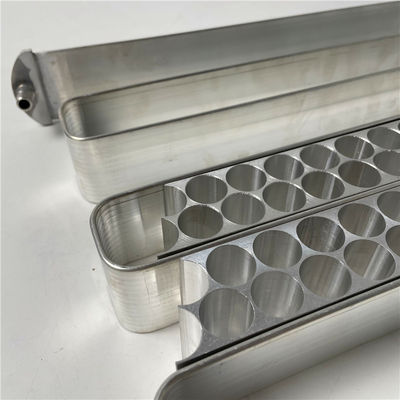

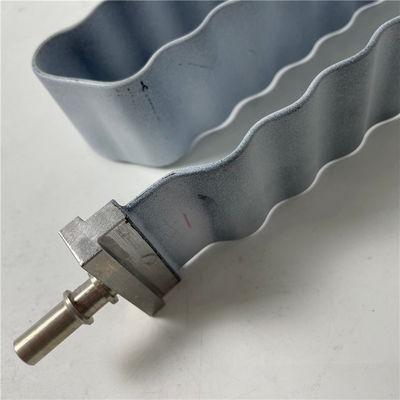

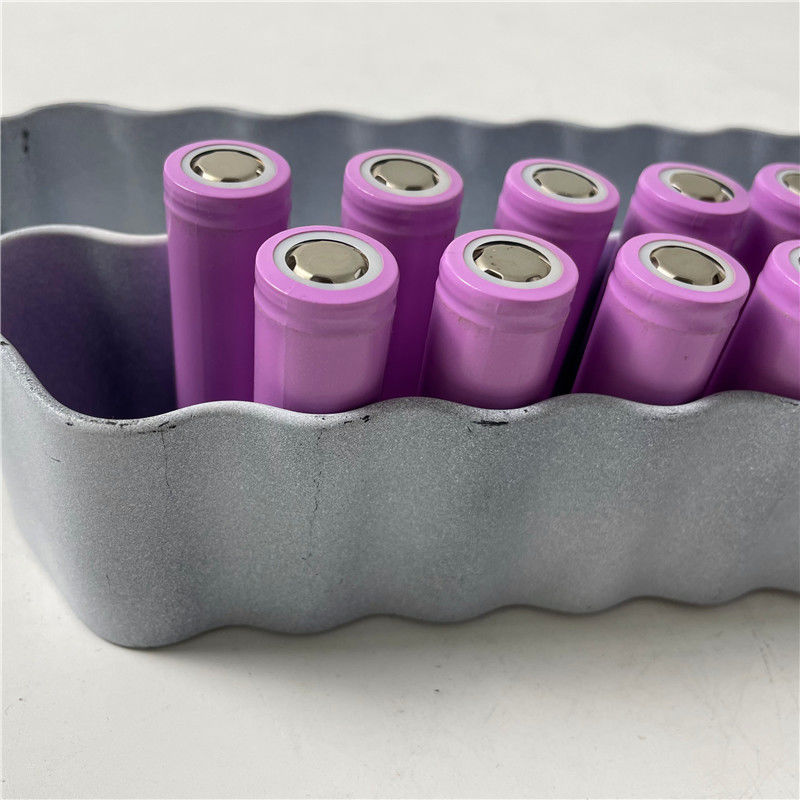

We supply serpentine extruded tubes in different alloys, such as 1 series,3 series,6 series and so on. For 3 series alloy,it has good anti-corrosion property ,For 6 series alloy,it has good strength advantage.And we can manufacture in different shapes, like flat,snake shape and so on.These are used for different batteries cooling in new energy vehicles, normally Cylindrical Battery,Square Battery,and soft packing battery based on customers' battery type.
For the serpentine extruded tubes, they are actually made of multiport aluminum tubes,which can also be called aluminum tube extrusions.The tube structures can be customized according to customers' different requirements,and the tube size can be controlled strictly by our precise toolings. We have our own tooling center and we are very professional in designing and building the tools to control the tube size accurately.With our extrusion production line improved,we can make the tubes with over 100mm width and the flat surface.
2. Product specification:
1. Specification: we can do various sizes for the Aluminum liquid cold plate as per customer's requirements
2. Alloy Code: 3003/6061/6063 or other series aluminum alloy
3. Surface treatment: such as anodizing ,polishing, turning ,coating, mill finish etc.
4. Design: OEM, ODM, design service can be provided.
5. Equipment: CNC, extruding machine, cold drawn machine, heating oven, straightening machine,cutting machine, etc
6. Team Support: Professional design team, technology team and sales team
3. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
4. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
5. Application:
Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate, some application for your reference.
6. Our advantages
1. Since 2004, we have rich experience in this industry in China;
2. Good reputation in household foil areas;
3. We started our production from aluminum ingot, so we can control the quality as well;
4. We have our own development department for new material research;
5. All parts of ladder is self manufacturing, we have price advantage.
6. Good experience and cooperation with big clients worldwide;
7. With Certificate ISO9001-2008;
8. Sample orders are acceptable;
9. High performance cost ratio;
10. Fast delivery time;
11. Good communication skills, and good & satisfcatory service for customers.
