Product Details:
|
| Color: | Silver Or Other Color | Surface: | Mill Finishing Etc |
|---|---|---|---|
| Use Area: | Battery Cooling, Thermal Management Etc | Temper: | O,H Etc |
| Thickness: | 1-5mm | Dimention: | Based On Customers' Requirements |
| Material: | Aluminum Alloy | Code: | 3003/4343/7072 Etc |
| High Light: | 7072 Aluminum Liquid Cooling Plate,4343 Aluminum Liquid Cooling Plate,3003 Aluminum Water Cold Plate |
||

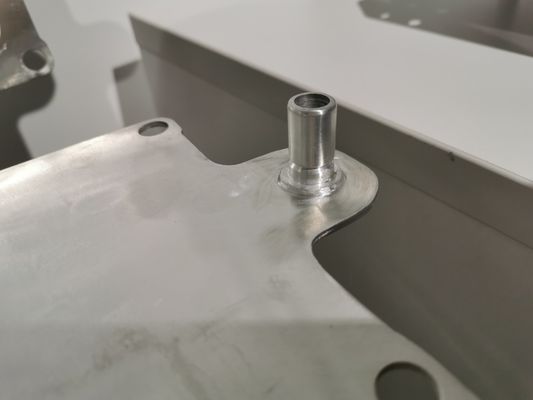

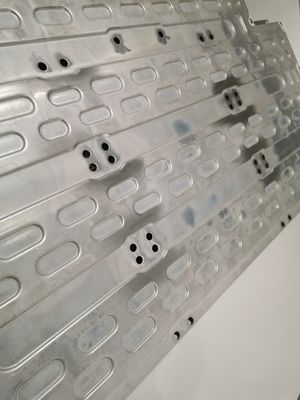

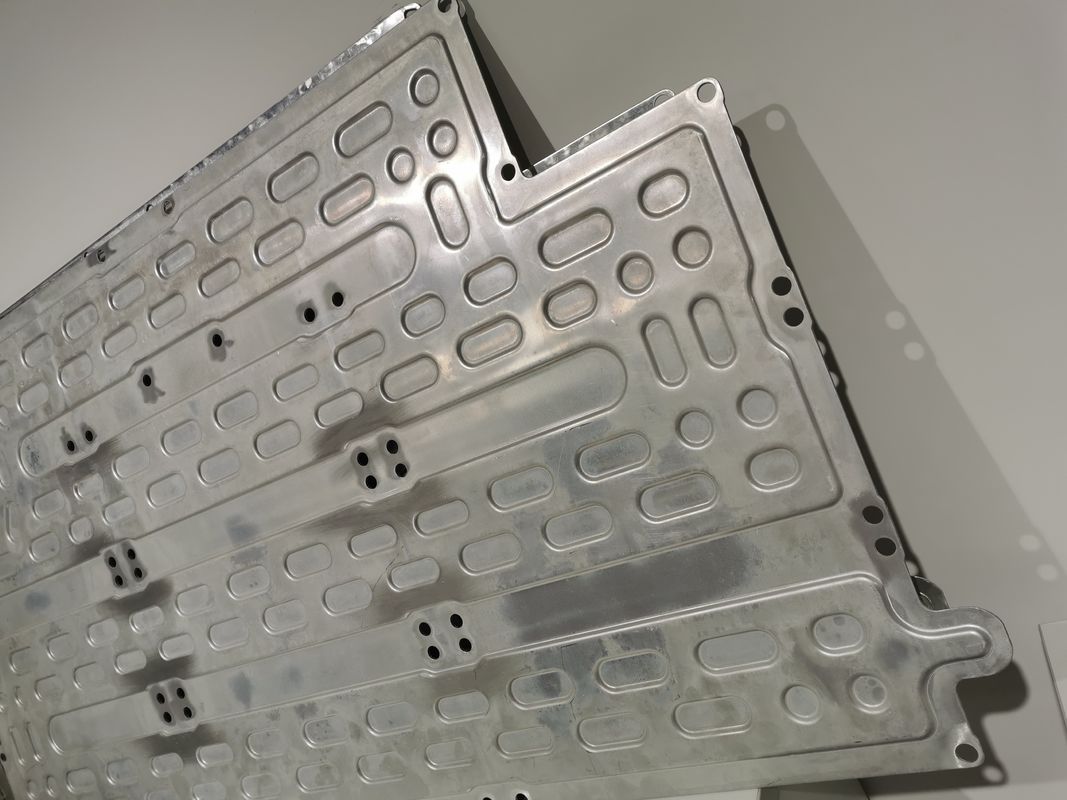

Liquid Cooling Plate For Prismatic Batteries Thermal Management Clean Emission
Water cooing plates, or liquid cold plates are widely used for heat exchange for thermal management in the electrical mobility industry.
1. Descriptions of Liquid Cooling Plates
1). Applications: widely used in new energy cars, electrical vehicles, battery cooling systems, thermal management solutions etc
2). Technology: Brazing technique, CNC maching, Welding and so don
3). Main Equipments: Fully automatic tunnel brazing wire, CNC machining center, oil pressing,
Water nozzle brazing machine, argon arc welding machine,
Ultrasonic cleaning equipment, Prespraying equipment etc
4). Main tesing equipment: Gas inspection equipment (water inspection),
Gas inspection equipment (dry inspection),
Press tester, Flow resistance tester, Salt spray tester
Material tension testing machine
Corrosion tester in runner, Vacumn Helium leak detection equipment
1) Cladding Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
2) Core Materials
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
2. Our advantage of Aluminum Cooling Plate:
1). Since 2006, we have rich experience in this aluminum thermal management industry in China;
2). Good reputation in aluminum material field;
3). Designing ability: We have professional designing team to turn your idea into real product, or provide you suggestions
4). Competitive price advantage;
5). Good experience and cooperative relationship with worldwide clients;
6). Certified with ISO9001-2008;
7). Sample acceptable;
8). High performance cost ratio;
9). Fast delivery time: 10-25 days.
3. Terms and conditions:
1, Trade term: CIF / CFR / FOB/ EXW etc
2, Payment term: 30% deposit TT before production+70% balance before shipment;
or 100% Irrevocable L/C at sight
or we can discuss further about this part.
3, Shipment time: Normally it is about 15-35 days.
4. FAQ:
Q: Are you a trading company or manufacturer?
A: Yes, we are a factory with over 14 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Normally it will take 15-20 days for new moulds and free samples (within 5 kgs);
after confirmation, 25-30 days are needed for mass production.
Q: OEM/ODM available?
A: Yes, we can accept OEM/ODM for aluminum cooling plates.
Q: Could you provide sample?
A: Yes, samples will be provided according to customers' technical requirements.
Q: What is the lead time of samples?
A: We have several different solutions:
Parts can be arranged promptly sample if we have any in stock;
1~2 days if no stock and the sample structure is not complicated;
3~5 days if no stock sample and the sample has complex structure.
