Product Details:
|
| Product Name: | 500W Aluminum Air Battert Stack | Material: | Aluminum Plates, Graphene |
|---|---|---|---|
| Function: | Self-generating Device | Weight: | 20 Kg |
| Storage Capacity: | 18 Kwh | Maximum Power: | 800W |
| Nominal Voltage: | 21.6V | Electrolyte: | 4-6mol/L KOH |
| Size: | 519*236*327 Mm | Working Mode Of Electrolyte: | Cycle |
| High Light: | 800W Aluminum Air Battery,Self Generating Aluminum Air Battery |
||

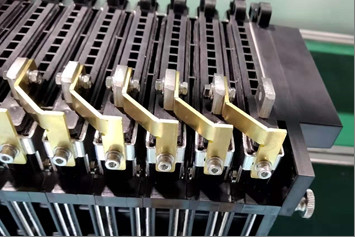

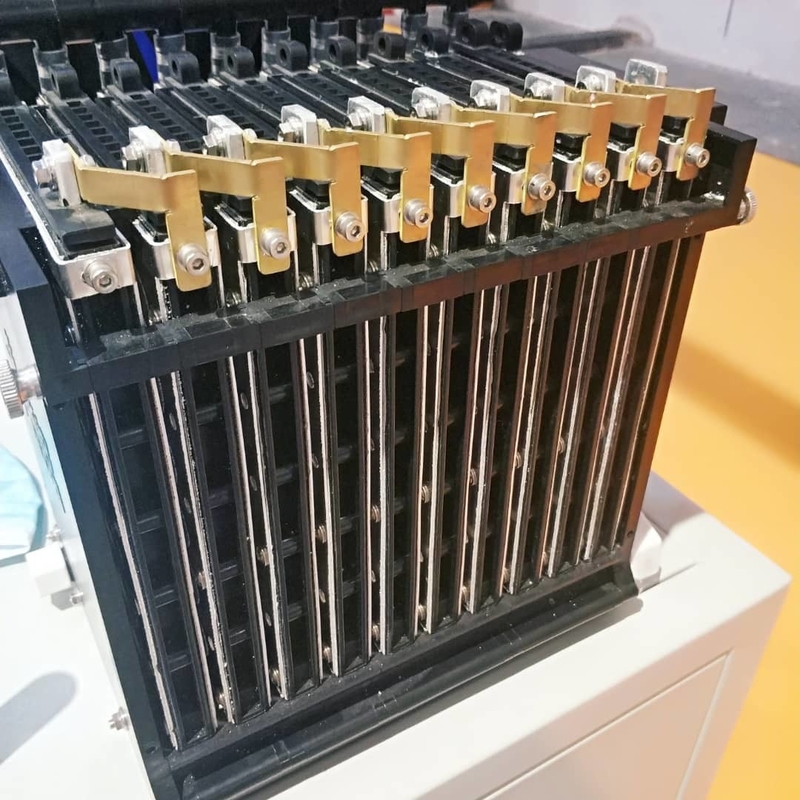

Self-Generating Equipment Emergency Aluminum Air Battery Generate Electricity
1. Descriptions
Aluminum air batteries generate electricity from the reaction of oxygen in the air and aluminum. Their energy density has one of the highest energy densities in all batteries, but they are not widely used because of the high anode cost and the problem of removing by-products when using traditional electrolytes, which also limits their uses. Military applications. However, aluminum batteries for electric vehicles have the potential for up to eight times the mileage range of lithium-ion batteries and a significantly lower total weight.
This battery stack is very suitable for emergency use when the power is off. It could be used for loading off grid device or as a backup power in remote mountain areas, hospital emergency power, industrial emergency power, mining industrial power etc. Aluminum air battery is a modular product and could be connnected in series.
2. Specifications
| Number of aluminum plates | 18 pcs |
|
Voltage(OCV) |
＜36 V |
|
Working voltage |
18-23V (4-6mol/L KOH,@10-40℃) |
|
Maximum current |
45A |
|
Size |
519*236*327mm |
|
Storage capacity |
Approxiately 18kWh |
|
Module weight |
16 kg |
|
Electrolyte |
4-6mol/L KOH |
|
Working mode of electrolyte |
Cycle |
| Cut off voltage | 18V |
| Maximum current | 45A |
| Nominal voltage | 21.6V |
| Nominal current | 30A |
| Nominal power | 650W |
| Maximum power | 800W |
| Electrolyte | 6M KOH solution |
3. Advantages
1. Low noise
The noice of startup operation is below 50dB, and it can be used quietly in the community all day long to avoid disturbing people.
2. Big capacity
The current power product can store power of 50-100kwh, which can supply the base station with uninterrupted power supply for 25h, reducing the manual handling cost of diesel generator.
3. Power adjustable
Modular design of power supply, according to the base station electricity data, can allocate the power of aluminum fuel power, save cost.
4. Customized
The voltage and the current could be adapted to meet your need. This 18 pcs aluminum air battery stack is standard, we could increase and decrease the aluminum plates to change the output power or storage capacity.
