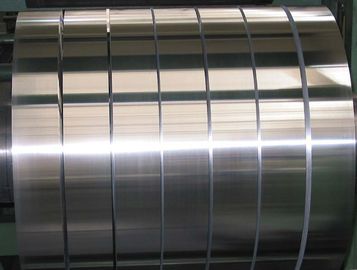

Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm

Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm
Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm

Large Image :  Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: ISO9001-2008 , SGS
Model Number: TR - CA020
Payment & Shipping Terms:
Minimum Order Quantity: 5 metric tons
Price: negotiation
Packaging Details: Standard export packaging
Delivery Time: 30 working days after received your down payment
Payment Terms: T/T or LC
Supply Ability: 50,000 mt per year

Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm

Description
Alloy: 1200 And Etc. Temper: HO And Etc
Thickness: 0.14mm Width: 550mm
I. D.: 150mm O.D.: 700mm
Electric Conductivity: 35.33569 Other Requirements: Other Sizes And Specifications Are Available According To Customer's Request
High Light:

aluminium foil safety

,

aluminum foil sheets

,

RF Cable aluminum foil sheets

1200 O 0.14mm x 550mm Aluminum RF cable foil for Waterproof Layer





1. Our chemical composition:



Alloy

Si Fe Cu Mn Mg Zn Cr Ti code
1200 1.00 0.05 0.05 -- -- 0.05 1
1060 0.25 0.35 0.05 0.03 0.03 0.05 2





2. Our mechanical property:

Alloy Code temper

Tensile Strength

Rm(MPa)

Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)

1200 O 60-100 ≥15 ≥23
1060 O 60-110 ≥15 ≥23

:



3. Specification of aluminium strip:


1) Alloy: 1035,1060 and etc.,
2) Temper: HO and etc.,
3) Thickness: 0.01-0.2mm

4) Width: 100 - 1250mm
5) I. D.: 300mm,400mm,500mm
6) Normal O. D.: 900-2000mm(max)
7) Electric conductivity:35.33569

8) Other sizes and specifications are available according to customer's request





4. Application



Radio-shielding application of cables, wrapping and shielding application of cable. Cable foil is used as a skin for heat-insulating and electromagnetic shielding to provide high performance for Cable industry.





5. Features



1. Insulation shield for cable; It can be used for protecting the high frequency transmission of telecommunication cable; power cable and electric wire from the interference of electromagnetic and radio wave;
2. Aluminum foil are widely used for coaxial cable shield and electronic product like EHV cables and RF cables; shielding layer of many other kinds cables;telephone lines and ventilation ducts, etc;
3. Electromagnetic interference shielding;isolate electromagnetic waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to peel; stick force resistance;



6. Our advantages



1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in EHV cable industry;

3. We start our productions from aluminum ingot , so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate ISO9001-2008;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers.



Cold Resistance Aluminum RF Cable Foil For Waterproof Layer 1200 O I. D 300mm 0
