Product Details:
|
| Alloy: | 8006,8011 | Thickness: | 0.08-0.3mm |
|---|---|---|---|
| Width: | 100-1300mm | Coluor: | Gold , Blue |
| Inside Diameter: | 75mm ,150mm , 200mm , 300mm | Temper: | HO , H22 , H24 , H26 |
| High Light: | aluminium foil rolls,industrial aluminium foil |
||

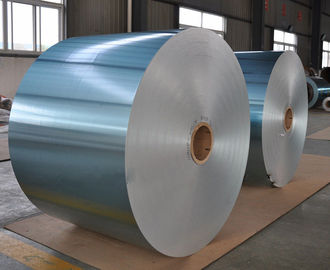

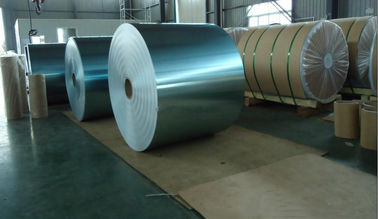

Oxidation Resistance With Blue Color Aluminum Heat Transfer Foil For Evaporator
Description:
Specifications of Aluminum :
1 . Grade
1000 Series: 1050 1060 1070 1100 1200 1235 etc.
3000 Series: 3003 3004 3005 3102 3104 3105 3A21 etc.
5000 Series: 5005 5052 5083 5086 5154 5182 5251 5754 etc.
6000 Series: 6061 6063 6082 6A02 etc.
7000 Series: 7050 7075 7475 etc.
8000 Series: 8006 8011 8079 etc.
2 . Length: per customer's request
3 . Temper: all tempers, H1X, H2X, H3X, O, HXXX
4 . Continuous casting and hot rolled both availabl
Mechanical Performance ( For Reference Only )
Temper
| Tensile Strength Rm(MPa) | Yield Strength Rp0.2(Mpa) | Extend Ratio A50(%) |
| | | |
| | | |
| 115 -145 | 12 | 5.0 |
| | 8 | 4.0 |
| 160 | 1 | - |
Hydrophilic Foil Coating Layer Performance
| Item | Technical data |
| Film Thickness | 1.0-2.0um ( one side average thickness) |
| 2 | Hydrophilicity | Primary contact angle? o Continuous contact angle? 20o |
| 3 | Adherencce Strength | Erichsen test result ( pressed depth 5mm ), no peeling off. Gridding test (100 / 100 ) : No separating |
| Corrosion Resistance | Salt & Spray test ( 72 hours ) : R . N ? 9.5 |
| Alkai resistance | Dipped in 20o% Na OH under 20oC for 3 minutes, absolutely no blister |
| Impregnant resistance | Sample weight loss ? 1 % |
| 7 | Heat resistance | Under 200oC keep 5 minutes, performance and colo unchanged Under 300oC keep 5 minutes, coating film become a bit yellow |
| Oil proof | 24 Hours, no blister on the coating layer |
| Coating film odor | No strange odor |
| Abrasion to mold | Same as ordinary aluminium foil |
Why to choose Trumony Aluminum as your supplier?
1 . Since 2007, we already build good relationship with a lots of overseas customers.
2 . Good reputation in Aluminum and Copper Areas.
3 . Abundant economic strength.
4 . Good experience and cooperation with customers.
5 . We own factory to make further process to cut the coils to be detailed strip and plates as clients’ demand.
6 . Good communication skills, and excellent service and understandings for customers’
needs
7 . Delivery the goods on time.
8 . Perfect quality of the goods with all the mill certificate.
9 . Strong Sea-worthy package.
FEATURE
1. Available for packed by Auto Machine .
2. effective and Security.
3. Resistance Oxygen, the pinhole rate is low
4, customers’ special requirement can be satisfied in some point.
