Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner

China Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner supplier
Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner supplier Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner supplier Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner supplier Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner supplier

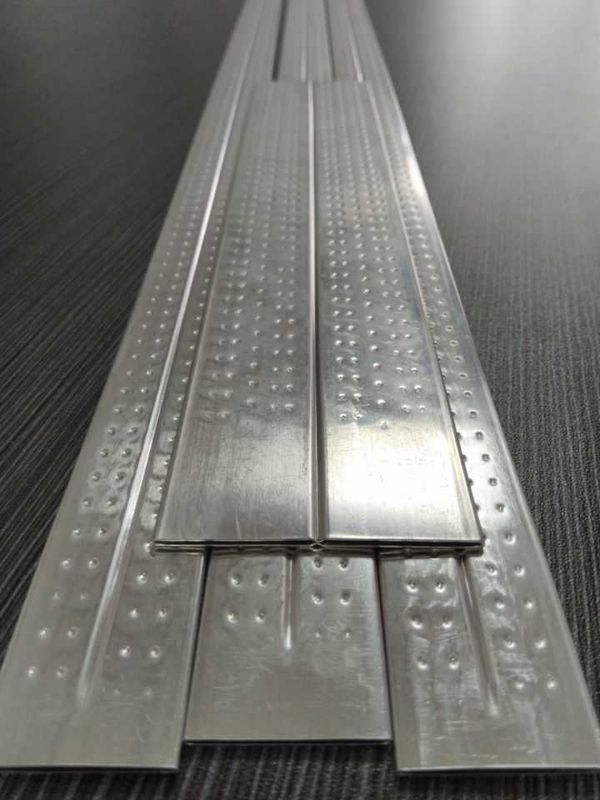

Large Image :  Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner

Product Details:

Place of Origin: China
Brand Name: Trumony Aluminum Limited
Certification: ISO9001, ASTM, JIS, GB, EN, ASTMB
Model Number: TR

Payment & Shipping Terms:

Minimum Order Quantity: 5 tons
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 35 workdays after confirming
Payment Terms: L/C, T/T
Supply Ability: 40,000 mt per year
Contact Now
Detailed Product Description
Temper: O ~ H112 Usage: Radiator / Heat Exchanger / Condenser
Surface: According To Customers' Requirement Sample: Negotiable
Wall Thickness: 0.22mm-0.5mm, Tolerance ± 0.015mm HS Code: 7606



Parallel Flow Brazing tube is the high-tech aluminum products under the process of hot extrusion from refined aluminum ingot and then zinc spraying for anti-corrosion.

Parallel Flow Brazing tube is the core materials of new generation parallel flow air conditioning heat exchangers. It is outstanding in enviromental-friendly, efficient, energy-saving and cost reduction and was approved vividly in automobile air conditioning system. With restriction and prohibition of the application of the traditional refrigerant, it is a trend that household and commerical air conditioning heat exchanger needs revolution.

Chemical Composition
No Alloy Si Fe Cu Mn Mg Cr Zn V Ti
01 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 --- ≤ 0.05 ≤ 0.05 ≤ 0.03
02 1100 ≤ 0.95(Si+Fe) 0.05-0.20 ≤ 0.05 --- --- ≤ 0.10 --- ---
03 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
04 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 --- --- ≤ 0.30 --- ≤ 0.10
05 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05





Mechanical Properties
No Alloy Temper Tensile strength Yield strength Elongation
01 1050 O/F/H111/H112 ≥ 65 ≥ 20 ≥ 25
02 1100 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
03 1197 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
04 3102 O/F/H111/H112 ≥ 75 ≥ 20 ≥ 25
05 3R03 O/F/H111/H112 ≥ 80 ≥ 25 ≥ 20
Number Inspection Item Test according to
1 Raw & auxiliary materials testing Alloy, specification Raw & auxiliary materials testing standard
HX/QP8.2.4-1-2012
Surface quality
2 Casting Chemical composition Chemical composition of aluminum alloy (inner quality standard)
HX/QP8.2.4-9-2007
3 Saw-cutting Size Aluminum alloy ingot inspection standard HX/QP8.2.4-2-2007
Surface quality Aluminum alloy ingot inspection standard HX/QP8.2.4-2-2007
4 Milling surface Size Aluminum alloy ingot after milling surface inspection standard HX/QP8.2.4-10-2009»
Surface quality Aluminum alloy ingot after milling surface inspection standard HX/QP8.2.4-10-2009
5 Welding Size Skin & core materials welding inspection standard
HX/QP8.2.4-9-2009
Welding quality Skin & core materials welding inspection standard
HX/QP8.2.4-9-2009
6 Heating Temperature & time Pusher-type aluminum sheet & ingot heating furnace operating standard HX/QP7.5.1-1-6-2007
7 Hot-rolling Emulsion quality Hot-rolling emulsion inspection standard
HX/QP8.2.4-4-2007
Size Hot-rolling materials inspection standard
HX/QP8.2.4-3-2007
Surface quality Hot-rolling materials inspection standard
HX/QP8.2.4-3-2007
8 Cold rough-rolling Thickness Aluminum (cladded) strip & sheet & foil products inspection standard
HX/QP8.2.4-7-2011
Rolling oil quality Cold-rolling procustion process lubricant inspection standard
HXQP8.2.4-5-2007
Surface quality Aluminum (cladded) strip & sheet & foil products inspection standard
HX/QP8.2.4-7-2011
9 Cold finished-rolling Thickness Aluminum (cladded) strip & sheet & foil products inspection standard
HX/QP8.2.4-7-2011
Surface quality Aluminum (cladded) strip & sheet & foil products inspection standard
HX/QP8.2.4-7-2011
Rolling oil quality Cold-rolling procustion process lubricant inspection standard
HXQP8.2.4-5-2007
10 Tension-levelling Surface quality Aluminum (cladded) strip & sheet & foil products inspection standard
HX/QP8.2.4-7-2011

Parallel Flow Brazing Aluminum Tube For Automobile Radiator / Air ConditionerParallel Flow Brazing Aluminum Tube For Automobile Radiator / Air Conditioner
