Product Details:
|
| Shape: | Round / Oval | Treatment: | Welding |
|---|---|---|---|
| Materail: | Aluminum Alloy | Temper: | O ~ H112 |
| O.D: | According To Request | Thickness: | According To Request |
| Color: | Alloy | HS Code: | According To Request |
| Highlight: | aluminum auto parts,aluminum car radiator |
||

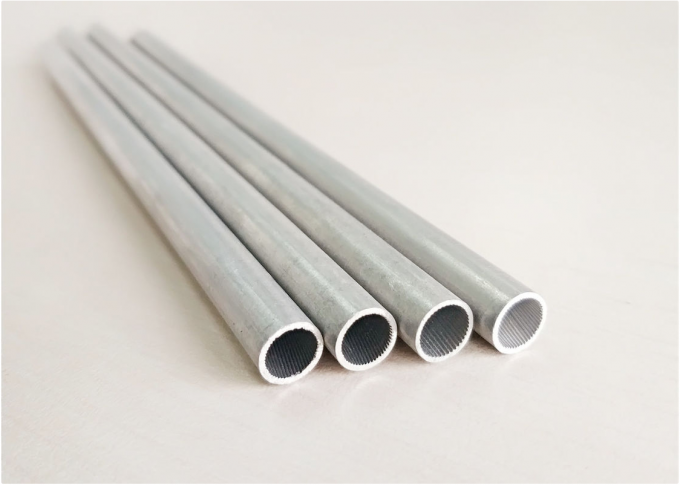

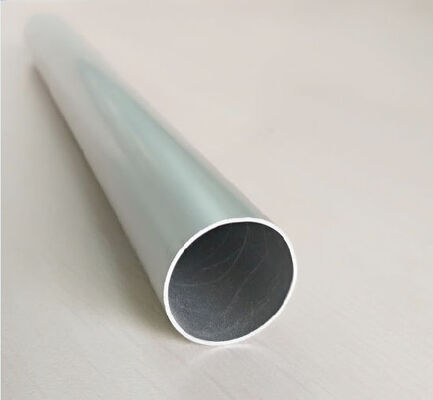

Product name: Welded smooth aluminum round tubes for manufacturing of Automotive air-conditioning elements.
Material:
Core Alloy 3003,3103
Clad Alloy: 4045/4343
Regular sizes:
| Tube size(OD*wall thickness) |
| 20x1.16mm |
| 20x1.3mm |
| 20x1.5mm |
| 20x2.05mm |
| 22x1.3mm |
| 23x1.5mm |
| 25x1.3mm |
| 25x1.5mm |
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) | Yield Strength(Mpa) | Elongation(%) |
| TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | -- | ≥0.5 | |
| TR-166Etc. Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
| OD | OD Tolerance | ID Tolerance | Roundness | straightness | Circular run-out |
| φ16-20 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ |
| φ20-30 | ±0.02 | ±0.02 | 0.01↓ | 0.015↓ | 0.05↓ |
| φ30-50 | ±0.05 | ±0.05 | 0.02↓ | 0.020↓ | 0.08↓ |
| φ50-80 | ±0.15 | ±0.10 | 0.05↓ | 0.025↓ | 0.10↓ |
| Our advantage | ||
| Since 2004, we have rich experience in this industry in China; | ||
| Good reputation in household foil areas; | ||
| We start our productions from aluminum ingot,so we can control the quality as well; | ||
| We have our own development department for new material research; | ||
| All parts of ladder is self manufacturing, we have price advantage. | ||
| Good experience and cooperation with big client in the world; | ||
| With Certificate ISO9001-2008; | ||
| Sample order is acceptable | ||
| High performance cost ratio; | ||
| Fast delivery time; | ||
| Good communication skills, and good service and understandings for customers;. | ||
| Applications | |
| In the kitchen - the largest domestic use | |
| Roasting poultry and meat - shrinkage | |
| Cooking delicate fish and vegetables 'en papillae' | |
| Lidding storage pots (not in with steel cans) | |
| Protecting parts of poultry *microwave 'burn' | |
| Making small storage containers the refrigerator | |
| Wrapping for the freezer | |
| Sealing saucepans to retain steam | |
| Baking 'jacket' potatoes | |
| Lining cake tins, 'lift-out' strips | |
| Wrapping sandwiches and snacks | |
| Keeping food and 'left-over' refrigerator - cakes, meat, | |
| Saving cleaning - lining a grill lining the oven floor | |
| 5. Features | |
| 1. The luster is luminous, | |
| 2. Non-toxic, odorless, impermeable, | |
| 3. Withstand high heat and extreme cold, | |
| 4. Minimize cleanup and ensure food fresh. | |
| 5. Environment friendly, recoverable and recyclable |
|
Other sizes not mentioned in the above table could also be produced as per customer requirement.
Application field:
Air condition,
refrigeration and cooling system;
Automotive air condition;
Solar application
High precision welded smooth aluminum round tubes has the following advantages:
| Low material cost |
| High heat transfer rate |
| Reliable brass solder |
| Light weight |
| Strong anti-corrosion |
| High precision |
| High surface finish |
Package: coils or Straight with fixed length
