Product Details:
|
Tpye: | Plate | Package: | Export Worthy Packing |
---|---|---|---|
Name: | Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe | Cnc Machining Or Not: | CNC Machining |
Tolerance: | Customized | Size: | Customer's Requst |
Temper: | O/H14/H24/H16/H18/H24 | Alloy: | 4343/3003/4343 |
High Light: | aluminium alloy tube,oval aluminum tubing |

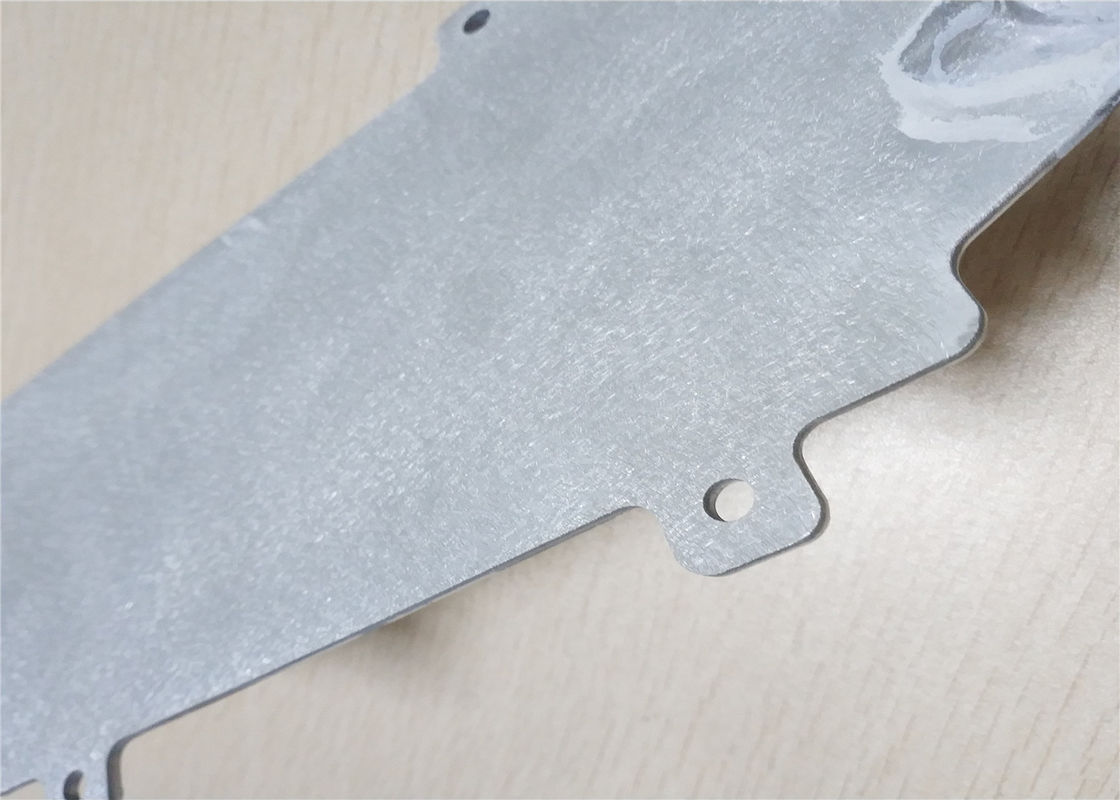

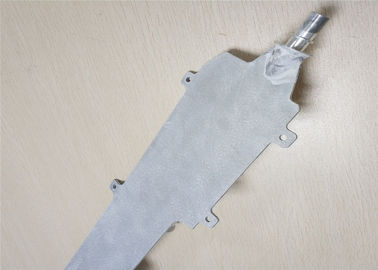

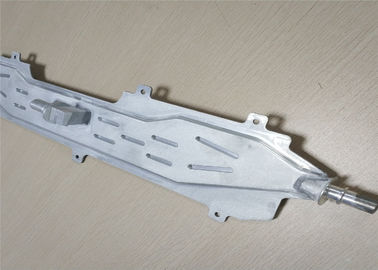

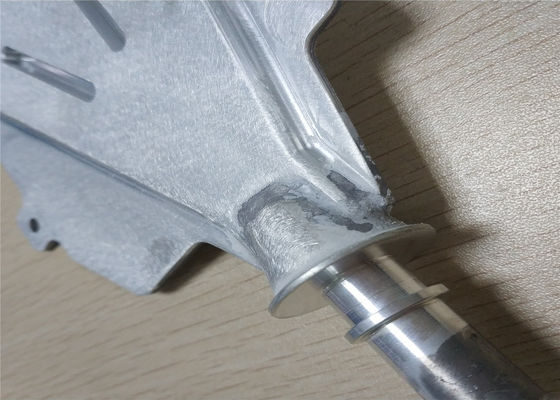

New Energy Vehicle Aluminum Heat Sink Cooling Plate Heat Pipe
Product Description:
There are varies of specifications, covering automotive, household, commercial, light industrial condensers. Precision flat tubes for all aspects such as evaporators, as well as various types of aluminum profiles.
The products are widely used in the field of conduction and heat transfer of a series of products, such as new energy vehicles, lithium batteries, energy storage batteries and son on. We has worked with well-know international companies to develop relevant technical solutions and sample or supply.
Chemical Composition | ||||||||||
No | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
1 | 1050 | ≤ 0.25 | ≤ 0.40 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | --- | ≤ 0.05 | ≤ 0.05 | ≤ 0.03 |
2 | 1100 | ≤ 0.95(Si+Fe) | 0.05-0.20 | ≤ 0.05 | --- | --- | ≤ 0.10 | --- | --- | |
3 | 1197 | ≤ 0.15 | ≤ 0.20 | 0.40-0.55 | 0.10-0.20 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
4 | 3102 | ≤ 0.40 | ≤ 0.70 | ≤ 0.10 | 0.05-0.40 | --- | --- | ≤ 0.30 | --- | ≤ 0.10 |
5 | 3R03 | ≤ 0.15 | ≤ 0.15 | ≤ 0.01 | 0.90-1.10 | ≤ 0.03 | ≤ 0.03 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
Mechanical property | ||||
Alloy Code | Temper | Tensile Strength Rm(Mpa) |
Yield Strength (Mpa) |
Elongation(%) |
TR-010,TR-020,TR-030,TR-040, TR-050,TR-110,TR-310,TR-116, TR-316,TR-111,TR-313,TR-121, TR-131,TR-141,TR-150,TR-151, TR-156Etc. |
O | 95-135* | ≥35* | ≥15* |
H14 | 140-185 | ≥125 | ≥1.5 | |
H24 | 140-185 | ≥125 | ≥3 | |
H16 | 185-225 | 160 | ≥1 | |
H18 | ≥185 | —— | ≥0.5 | |
TR-166Etc. Tube material | H24 | 185-235 | ≥150 | ≥8 |
TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
H24 | 140-185 | ≥125 | ≥8 |
