Product Details:
|
| Tpye: | Plate | Material: | Aluminum |
|---|---|---|---|
| Package: | Export Worthy Packing | Alloy: | 4343/3003/4343 |
| Name: | Flexible Battery Pack Aluminum Radiator Parts Extrusion Micro Channel Pipe | Application: | Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine And AUTO |
| Tolerance: | Customized | Size: | Customer's Requst |
| High Light: | 4343 alloy round aluminum tubing,Heat Transfer Oval Aluminum Tubing,Extruded Channel Multi Port Tube |
||

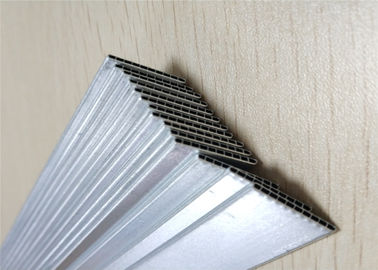

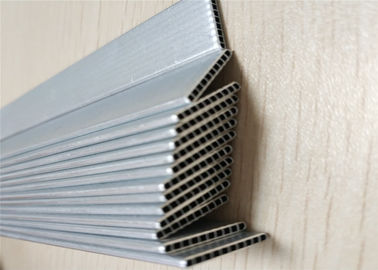

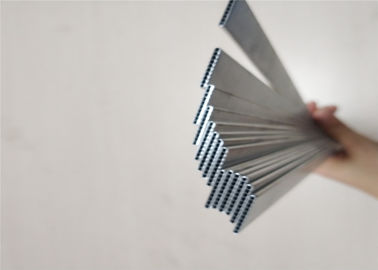

Aluminum Condenser Auto Parts Extruded Channel Multi Port Tube for Heat transfer
Our parts are with good quality and can be used on various types of condenser. We also have strong design team which can assist in cutsomer design.
Beside increased global performances, an all-aluminum brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:
Condensers
Evaporators
Oil coolers
Radiators
Heater cores
The micro-channel tube also called The Multi-Port Extrusion (MPE)- is a highly refined quality product characterized by the following properties:
Low energy costs
High performance
Low space and weight
High corrosion and pressure resistance
High recycling value
Pressure drop and silent solution
Low refrigerant fill
Our Aluminum Micro Channel Tube can be widely used for heat sink / transfer.
Like evaporator, air conditioner, condenser, heat exchanger, freezer, oven gas, boiler and so on.
The material can be 1050/1060/1070/3003/3102 or as customer’s request.
Temper O-H112,H112,F.
We can do many kinds of sizes, such as 4.0x0.5mm, 6.0x1.0mm,7.0x1.0mm, 7.94x1.0mm,8x1.0mm,9.52x1.0mm,10x1.0mm,12.7x1.2mm,15.88x1.2mm,16.0x1.0mm, 9.05x1.5mm.
FAQ
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new moulds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q:OEM/ODM available?
A:Yes,we can!
Q: Can you assist in design?
A: Yes, we can! We have a strong and experienced design team.
Q:Could you provide sample?
A:Yes, We are honored to offer you samples for quality check.
Q:Is sample order accepted?
A:Yes,we accept sample order and we can provide design service!
| Mechanical property | ||||
| Alloy Code | Temper | Tensile Strength Rm(Mpa) |
Yield Strength (Mpa) |
Elongation(%) |
| TR-010,TR-020,TR-030,TR-040, TR-050,TR-110,TR-310,TR-116, TR-316,TR-111,TR-313,TR-121, TR-131,TR-141,TR-150,TR-151, TR-156Etc. |
O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3 | |
| H16 | 185-225 | 160 | ≥1 | |
| H18 | ≥185 | —— | ≥0.5 | |
| TR-166Etc. Tube material | H24 | 185-235 | ≥150 | ≥8 |
| TR-116,TR-316 Etc.tube material | H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 | |
| Mechanical Properties | |||||
| No | Alloy | Temper | Tensile strength |
Yield strength |
Elongation |
| 1 | 1050 | O/F/H111/H112 | ≥ 65 | ≥ 20 | ≥ 25 |
| 2 | 1100 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 3 | 1197 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| 4 | 3102 | O/F/H111/H112 | ≥ 75 | ≥ 20 | ≥ 25 |
| 5 | 3R03 | O/F/H111/H112 | ≥ 80 | ≥ 25 | ≥ 20 |
| CHEMICAL COMPOSITION (%) | ||||||||||||||||||||||
| Item | Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | The rest | Al | ||||||||||||
| Single | In total | |||||||||||||||||||||
| Demand (%) | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Min | Max | Allowance | |
| / | 0.4 | / | 0.7 | / | 0.1 | 0.05 | 0.4 | / | / | / | 0.3 | / | / | / | 0.1 | / | / | / | / | |||
| Test result | 0.079 | 0.244 | 0.001 | 0.392 | 0.001 | 0.008 | 0.0005 | 0.009 | / | / | Allowance | |||||||||||
