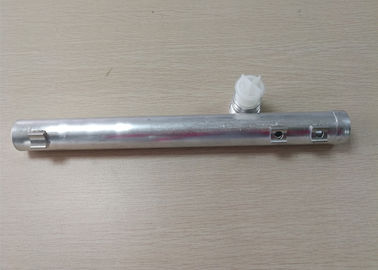

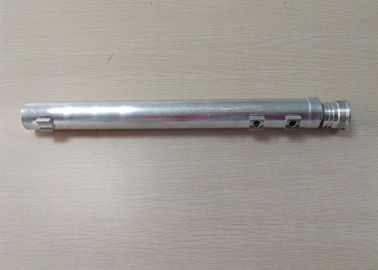

3102 Integrated Aluminum Car Parts Liquid Storage Tank For Evaporators / Condensers

3102 Integrated Aluminum Car Parts Liquid Storage Tank For Evaporators / Condensers

3102 Integrated Aluminum Car Parts Liquid Storage Tank For Evaporators / Condensers

Product Details:

Place of Origin: China
Brand Name: Trumony
Certification: IATF;ISO

Payment & Shipping Terms:

Packaging Details: Ply-wood box specialized for export
Payment Terms: L/C, T/T
Supply Ability: 70000 pcs/month
Contact Now
Detailed Product Description
Shape: Round Alloy: 3000 Series
Temper: O - H112 Diameter: 30/32/35mm
Air Tightness: No Leakage Under 3.5MPa Pressure Pressure Durability: No Break Under 11MPa
High Light:

aluminum auto parts

,

aluminum radiator parts



Product name: 3003 / 3102 Integrated Aluminum Liquid Storage Tank for Automobile Evaporators / Condensers





We are supplying the integrated storage tank series which are widely used for automobile condensers/evaporators.


Our aluminum liquid storage tank has the following features:

1) Extrusion molding only one time, ensure no leakage at the bottom of the tube
Once extrusion molding, the tube bottom is a blind hole, eliminating the user tube bottom welding process and the trouble of repeated brazing due to the bottom cover leakage, the process ensures that there is no leakage at the bottom.Convenient installation of pressure reducing valve for new energy vehicles.
2) Less Weight
According to the characteristics of seamless pressure resistance of cold extrusion products, the wall thickness of the liquid storage tank is designed to be 2MM, and the appearance is free of cutting. The weight of the liquid storage tank is two-thirds of the weight of the original traditional product.More in line with the national energy-saving and new energy vehicles lightweight requirements.
3) Less Wall Thickness Tolerance, ensure burst pressure.
Strict cold extrusion process system can control the wall thickness tolerance of the tank to be less than 0.1mm to ensure the blasting pressure after the product passes the furnace:>150KG

4) Higher production efficiency and product pass rate
Product weight loss and the bottom of the blind hole structure, greatly reduces the product demand amount of heat in the process of brazing, avoid brazing process products due to pitting local high temperature or temperature is too low to produce the phenomenon of false welding, by lowering the temperature or increase the chain speed or increase the product put density method, improve the production efficiency and the qualified rate of the product, save energy and reduce the production cost.



Specifications:



Outside diameter 35mm
Outside diameter 31.5mm
O-type ring 22x2.5mm
Core alloy 3003
Plug 030-DT-S10
Length As per customers' requirement





Appearance: No visible scratches, defects, oil



Application:Automobile evaporators/condensers
