Product Details:
|
| Product Name: | Serpentine Aluminum Tube | Alloy: | 3003,3102,1100,1050 |
|---|---|---|---|
| Application: | Electrical Vehicle 21700 Battery Pack | Temper: | O,F,H111,H112 |
| Shape: | Serpentine/Bent/Snake Shape | Surface: | Coating/Insulation/Film |
| Specification: | Various Size As Customer's Requirements | Length: | According To Customers' Requirement |
| Process: | Bending/Coating/Welding/Stamping/Extrusion | Packing: | Ply-wood Box Specialized For Export |
| High Light: | 21700 Battery Cell Aluminum Cooling Plate,IATF Serpentine Aluminum Cooling Plate,21700 Battery Cell Aluminum Cold Plate |
||

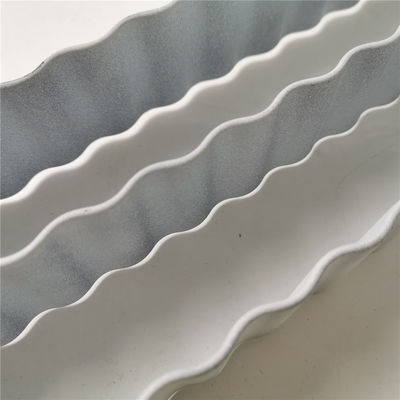

Serpentine 21700 Battery Cell Cooling Aluminum Cooling Plate
1. Product Introduction:
We are supplying the aluminum cooling plate in different forms and technologies,including extruded type aluminum cooling plate,which is serpentine aluminum tube,and brazing type aluminum cooling plate which is deep process of the aluminum sheet.There are used for different battery packing,but the application is the same,which is all used for electrical vehicel battery cooling.
We are not only manufacturer, but also design and development company, better heat exchanger solutions are our specialty.
We have done lots of project for heat cooling, electrical vehicle, also called new energy car battery cooling, solar usage cooling, 5G parts cooling, unmanned aerial vehicle cooling and almost all industrial cooling application.

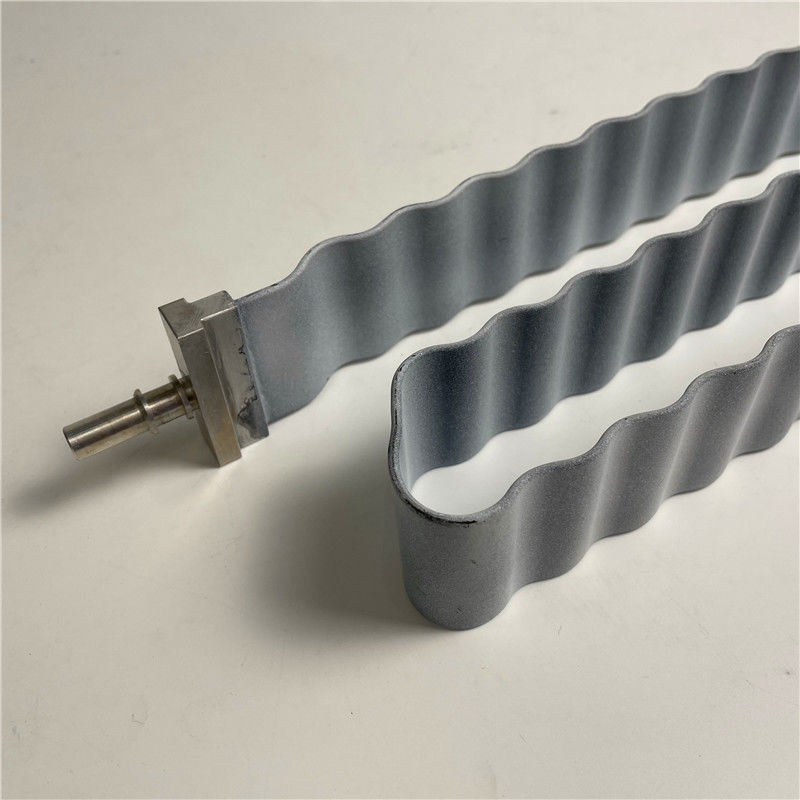

For the serpentine aluminum tube,it is also called snake tube and water cooling plate.
Snake tube is made by our extruded channel tube, we have many mold for many kind of flow channel port.
Water cooling plate is made by plate, we can assist in design for many channel type and different size. Mounting holes can also be made by us.
Besides, we also have our own CNC center, so we can make inlet and outlet connector or bulk head fitting per customers’ request.
2. Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Both 3003 and 3102 are the alloys with very good anti-corrosion property,so they are widely used for heat exchange.
3. Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
|
1050 |
O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
4. Application:
Different range of heat exchanger or collection, such as new energy automobile/vehicles(Cylindrical battery, prismatic battery, soft packing battery), solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate,below some application for your reference.
5. Products for your reference:
Cylindrical Battery Thermal Management
Square Battery Thermal Management
Electric Thermal Management
All Aluminum Liquid Cooling Tray
Soft Packing Battery Thermal Management
Motor Thermal Management
6. FAQ:
Q: Are you a trading company or manufacturer?
A: we are a manufacturer with more than 10 years history in this industry.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, balance paid before shipment.
Q: How long does it take for samples and mass production?
A: Usually it will take 15-20 days for new molds and free samples (within 5 kg),;
after confirmation, 25-30 days for mass production.
Q: OEM/ODM available?
A: Yes,we can!
Q: Could you provide sample?
A: Yes, We are honored to offer you samples for quality check.
Q: Is sample order accepted?
A: Yes,we accept sample order and we can provide design service!
