Product Details:
|
| Product Name: | 500W Aluminum Air Battert Stack | Material: | Aluminum Plates, Graphene |
|---|---|---|---|
| Function: | Self-generating Device | Weight: | 20 Kg |
| Storage Capacity: | 18 Kwh | Maximum Power: | 800W |
| Nominal Voltage: | 21.6V | Electrolyte: | 4-6mol/L KOH |
| Size: | 519*236*327 Mm | Nominal Power: | 650W |
| High Light: | Graphene Aluminum Air Battery,500W Aluminium Fuel Cell Battery,500W Aluminum Air Battery Stack |
||

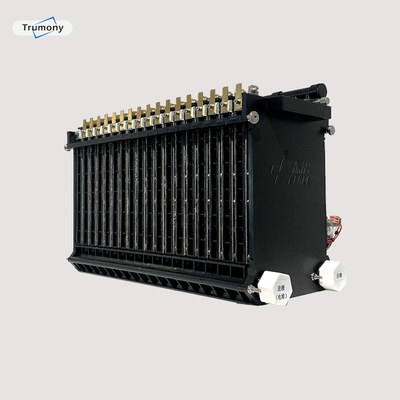

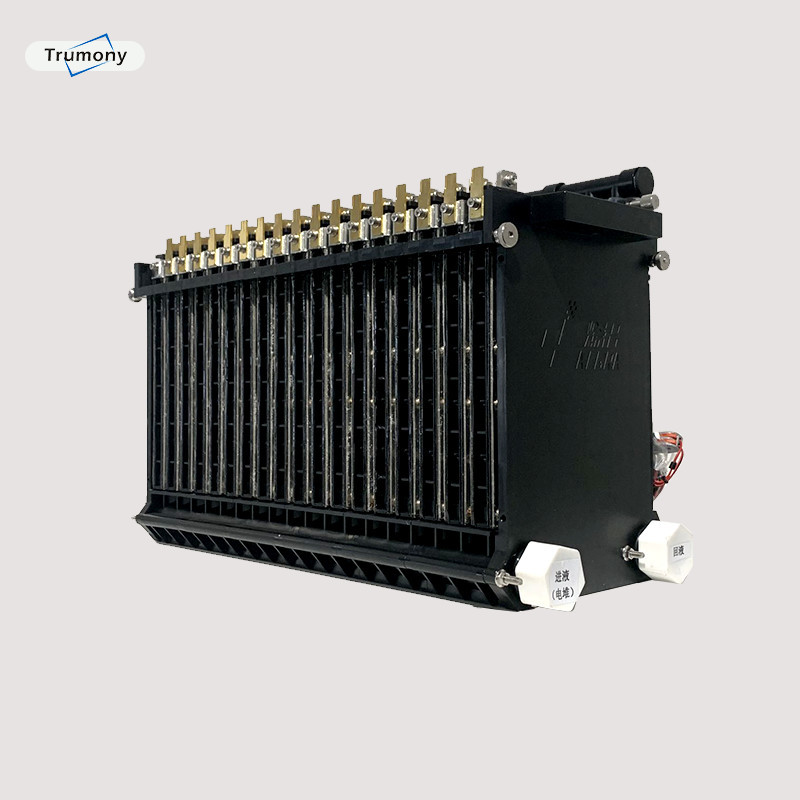

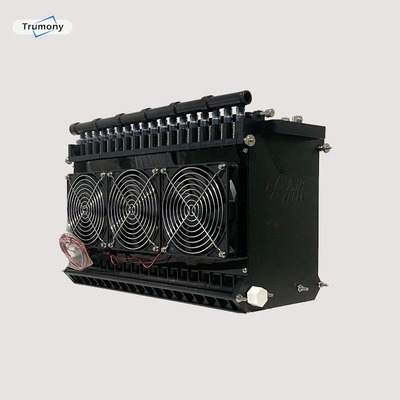

Graphene Aluminum Air Battery New Energy Electric Vehicle Battery Stack Store Power
1. Descriptions
Graphene aluminum air battery new energy electric vehicle battey stack stack power has 18 aluminum plates. It means the power storage is about 15kwh. Aluminum air battery generates electricity by consuming aluminum plates. One aluminum-air battery stack can last about 15 hours at full load. We can quickly replace the aluminum plate when the aluminum plate is used up.
This battery stack is very suitable for emergency use when the power is off. It could be used for loading off grid device or as a backup power in remote mountain areas, hospital emergency power, industrial emergency power, mining industrial power etc. Aluminum air battery is a modular product and could be connnected in series.
2. Specifications
| Number of aluminum plates | 18 pcs |
|
Voltage(OCV) |
＜36 V |
|
Working voltage |
18-23V (4-6mol/L KOH,@10-40℃) |
|
Maximum current |
45A |
|
Size |
519*236*327mm |
|
Storage capacity |
Approxiately 18kWh |
|
Module weight |
16 kg |
|
Electrolyte |
4-6mol/L KOH |
|
Working mode of electrolyte |
Cycle |
| Cut off voltage | 18V |
| Maximum current | 45A |
| Nominal voltage | 21.6V |
| Nominal current | 30A |
| Nominal power | 650W |
| Maximum power | 800W |
| Electrolyte | 6M KOH solution |
3. Advantages
1. Low noise
The noice of startup operation is below 50dB, and it can be used quietly in the community all day long to avoid disturbing people.
2. Big capacity
The current power product can store power of 50-100kwh, which can supply the base station with uninterrupted power supply for 25h, reducing the manual handling cost of diesel generator.
3. Power adjustable
Modular design of power supply, according to the base station electricity data, can allocate the power of aluminum fuel power, save cost.
4. Customized
The voltage and the current could be adapted to meet your need. This 18 pcs aluminum air battery stack is standard, we could increase and decrease the aluminum plates to change the output power or storage capacity.
