Product Details:
|
| Product Name: | Black Aluminium Foil Micro Channel Snake Cooling Tubes For EV Cylindrical Cells | Keyword: | Snake Cooling Tubes For EV |
|---|---|---|---|
| Shape: | Serpentine Tubes | Color: | Black |
| Grade: | 1000,3000 Series | Surface: | Stick With Thermal Conductive Film |
| Temper: | H14 | Application: | EV Cylindrical Cells |
| Material: | Aluminium | Pack: | Cartons + Pallets |
| High Light: | Snake Shape Aluminium Cold Plate,EV Aluminum Cooling Plate,Cylindrical Aluminium Cold Plate |
||

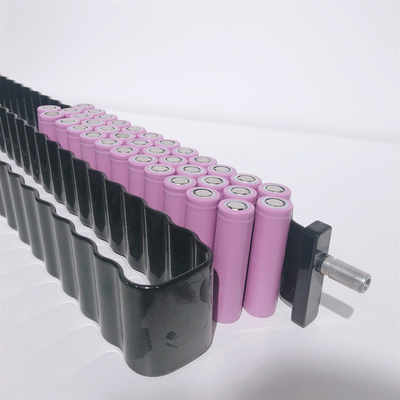

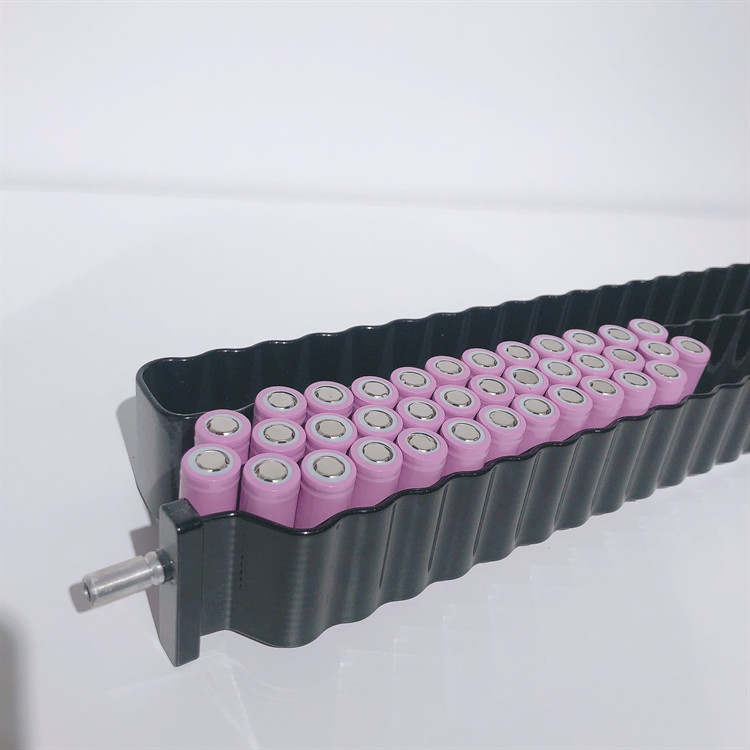

Black Aluminium Foil Micro Channel Snake Cooling Tubes For EV Cylindrical Cells
Description
Black Aluminium Foil Micro Channel Snake Cooling Tubes For EV Cylindrical Cells is actually made of Micro-channel Extruded Aluminium Tubes,we also call it multiport aluminum snake tubes or aluminum micro channel serpentine cooling cold pipes, which are unique tubes developed with highly refined manufacturing quality.
According to customers' different requirements of the tube design, we all can be customized the size tube and can be controlled strictly by our precise toolings. We are having very rich experience in the tooling making and calibration. With our extrusion production line improved,we are now able to produce the tube with more than 100mm width and the flat surface.
Specification of snake tube
| No. | Item | Data |
| 1 | Name | Black Aluminium Foil Micro Channel Snake Cooling Tubes For EV Cylindrical Cells |
| 2 | Alloy | 3003 |
| 3 | Temper | H14 |
| 4 | Thickness | 2-5mm |
| 5 | Application |
For electric vehicle cylindrical cell, such as type18650,21700 and 46800, we also supply aluminum cooling cold plate for EV prismatic batteries and pouch pack. |
| 6 | Service |
1. Tooling development 2. Making all kinds of heat exchangers 3. Assistance in parts design |
Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Supply state and mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Application
The micro channel aluminum cooling coldplate or brazing aluminum cooling plate have different ranges of heat exchange or collection, such as new energy automobile/vehicles, solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate.
FAQ
Q: Are you a trading company or manufacturer?
A: Yes,we are a manufactory with more than 10 years rich experience in aluminum cooling plate . and have clients more than 56 countries.
Q: What is your terms of payment ?
A: Normally 30% TT in advance, 70% TT balance paid before shipment. LC a sight is accepted.
Q: How long does it take for samples and mass production?
A: Normall our brazing cooling plate delivery time is around 25-30days after receiving your deposit .
Q: OEM/ODM available?
A: Yes,we accept OME or ODM. You can send your drawing in 3D to us. Or we can provide design package service for you .
Q: Could you provide sample?
A: Yes, We are willing to provide the samples for quality referece . If you customize the cooling tube or cooling plate for your customized design, it will generate the tooling cost and samples cost .
Q: Could you specify the cooling system for our reference ?
A: Yes,generally, we have 2 kinds cooling soultion for the EV batteries, for example snake tubes for cylindrical cells (18650,21700); water cooling plate for prismatic cells, and plate channel for pouches.We do hope to utilize our expertise to have chance to establish long-term cooperation with you , as battery thermal management is very critical in an operation of EV.
