Product Details:
|
| Product Name: | Aluminium Micro Channel Serpentine Cooling Cold Tubes For Electric Car Battery | Keyword: | Micro Channel Serpentine Cooling Cold Tubes |
|---|---|---|---|
| Shape: | Serpentine Cooling Tubes | Color: | Black |
| Grade: | 1000,3000 Series | Surface: | Coating With Black |
| Temper: | H14 | Application Battery: | 18650,21700,46800 |
| Material: | Aluminium | Pack: | Cartons + Pallets |
| High Light: | Electric Car Aluminium Cold Plate,Micro Channel Aluminium Cold Plate |
||

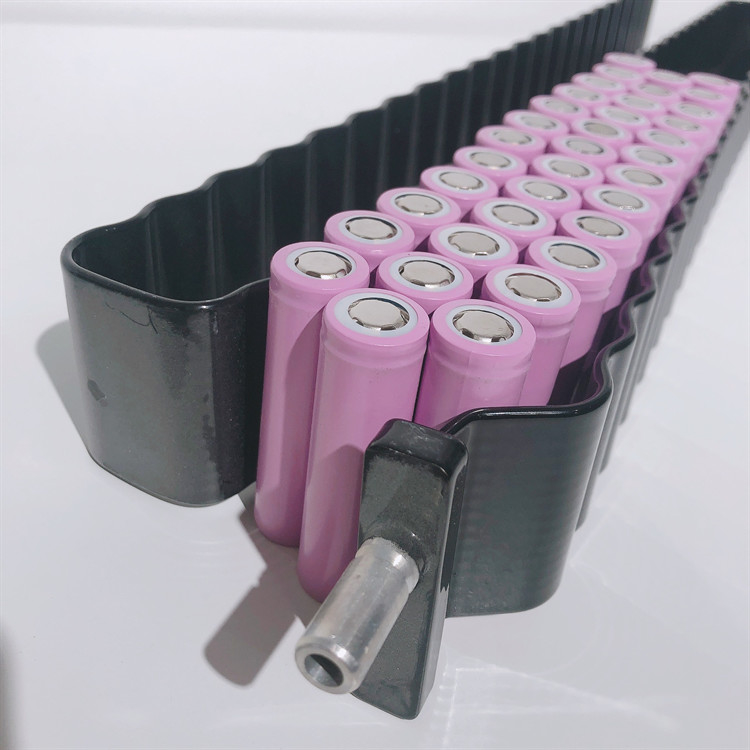

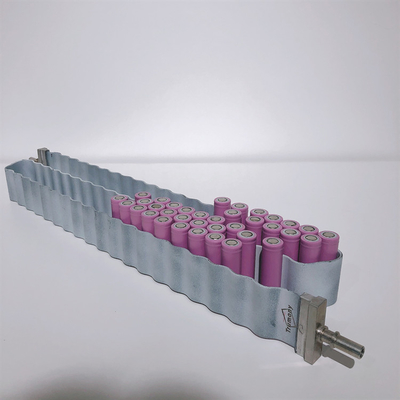

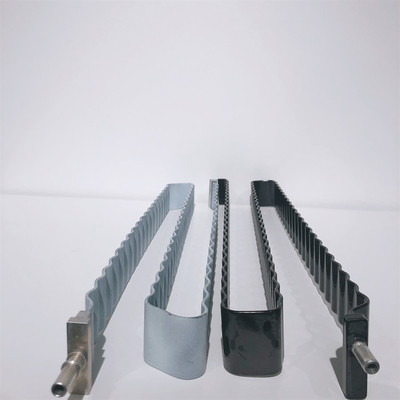

Aluminium Micro Channel Serpentine Cooling Cold Tubes For Electric Car Battery
Description
Aluminium Micro Channel Serpentine Cooling Cold Tubes For Electric Car Battery are made by Micro-channel Extrusion Aluminium Tubes,we also call it micro channel snake cooling tube or aluminum micro channel serpentine cooling cold tubes, which are unique tubes developed with highly refined manufacturing quality.
As the micro channel cooling tube size, we have some stock molds for available. Certainly, we also can customize as your request drawing . Then we produce them through extruded machines. At the begin , if you want to check the quality or do any testing, our stock samples are available for you .
Specification of snake tube
| No. | Item | Data |
| 1 | Name | Black Aluminium Foil Micro Channel Snake Cooling Tubes For EV Cylindrical Cells |
| 2 | Alloy | 1060,3003, |
| 3 | Temper | O,H14,H16 |
| 4 | Size | As your request |
| 5 | Thickness | 2-5mm |
| 6 | Application |
For electric vehicle cylindrical cell, such as type18650,21700 and 46800, we also supply aluminum cooling cold plate for EV prismatic batteries and pouch pack. |
| 7 | Service |
1. Tooling development ( R&D assitance) 2. Making all kinds of heat exchangers ( various production line to support ) 3. Assistance in parts design( CNC Center) |
Commonly used material chemical composition:
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
Mechanical properties:
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
Application
The brazed aluminium cooling plate or micro channel aluminum snake cooling tubes have different ranges of heat exchange or collection, such as new energy electric vehile/ cars, solar panel, solar energy collector, photovoltaic power generation collector, collector, superconducting plate, soaking plate,temperature uniforming plate.
More products suggestion
| Square battery thermal management | Cylindrical battery thermal management |
| Electric thermal management | Motor thermal management |
| All aluminium liquid cooling tray | Soft packaging battery thermal management |
FAQ
Q: Are you a manufacturer?
A: Yes,we are a manufacturer with more than 10 years for aluminium cooling system . and have clients more than 56 countries.Our thermal system products are including microchannel snake tubes, cooling cold plate and different heat exchangers.
Q: What is your terms of payment ?
A: We accept TT or LC. ( 30% TT in advance, 70% balance paid before shipment.)
Q: How long does it take for samples and mass production?
A: Normally our aluminum cooling plate leam time is approx. 25-30days after confirming the tooling samples .
Q: OEM/ODM available?
A: OME or ODM is OK for us . You can send your 3D drawing to us.
Q: Could you provide sample?
A: Yes, We are willing to provide the samples for quality referece . If you customize the cooling tube or cooling plate for your customized design, it will generate the tooling cost and samples cost .
Q: Could you specify the cooling system for our reference ?
A: Yes,generally, we have 2 kinds cooling soultion for the EV batteries, for example snake tubes for cylindrical cells (18650,21700); water cooling plate for prismatic cells, and plate channel for pouches.We do hope to utilize our expertise to have chance to establish long-term cooperation with you , as battery thermal management is very critical in an operation of EV.
