Product Details:
|
| Item: | Snake Cooling Tube For Cylindrical Cell | Specification: | 55*3mm, 50*2.5mm & Per Your Request |
|---|---|---|---|
| Fixed Length: | As Your Drawing | Design Service: | YES |
| Shape: | Straight, Bending, Snake, , | Surface Treatment: | Powder Spray, Insulation Coating, Film Coated, Mill Finished |
| Package: | Exported Wooden Packing | Processing Method: | Stamping, Punching, Bending, Welding, Brazing, Extrusion, Cutting |
| Key Words: | Cooling Ribbon For EV, Aluminum Channel Plate, Water Cooling Tube For EV | Application: | Passenger Cars, Heavy Duty, Trucks, Minibus, Racing Car, Commercial Cars, Marine, Aircraft |
| High Light: | Battery Side Cooling Aluminum Plate,Battery Side Water Cooling Plate,Battery Side Cooling Aluminium Plate |
||
Battery Side Cooling Aluminum Water Coolant Plate for Power Process Industries
The role of cooling plate is to keep maximum lithium-ion battery and optimum performance. We are aluminum manufacturer, it’s one of our biggest advantages to provide aluminum based cooling components for EV battery. We have strict quality control system with certificated TS 16949. As rich experienced and good communication, we have good reputation in clients.
Features:
*Design options:
1) Punching cooling plate
It used for prismatic cells and battery pack, bottom & side cooling solution;

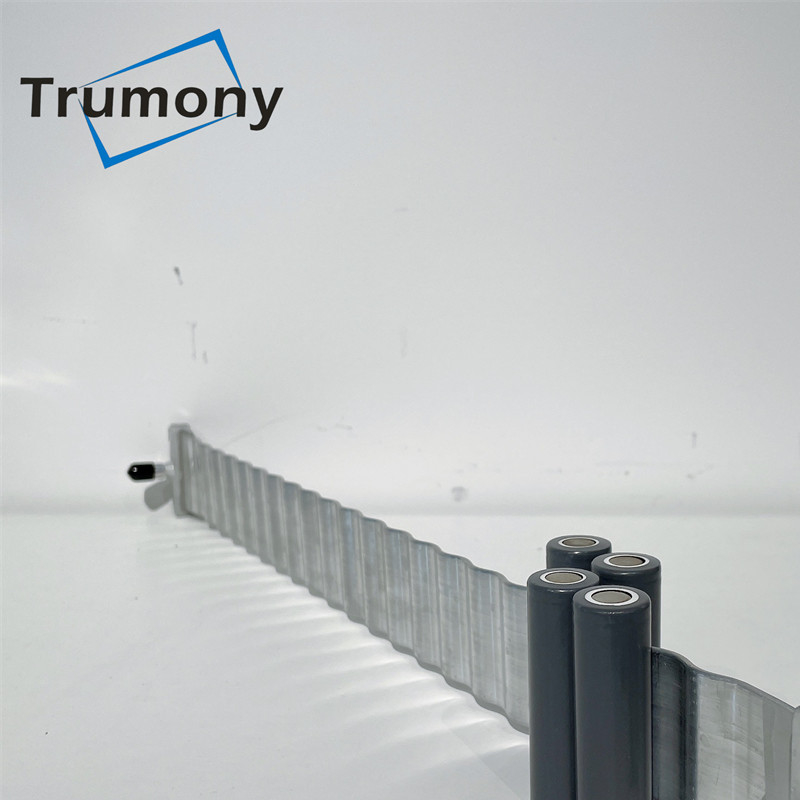

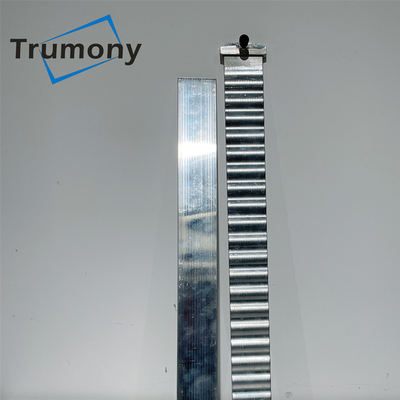

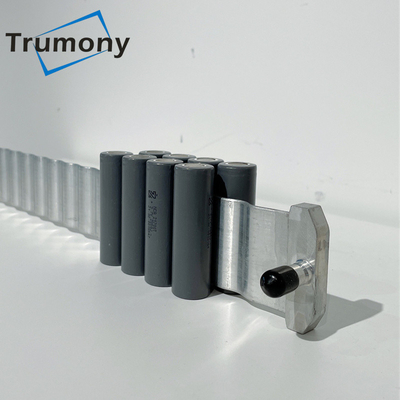

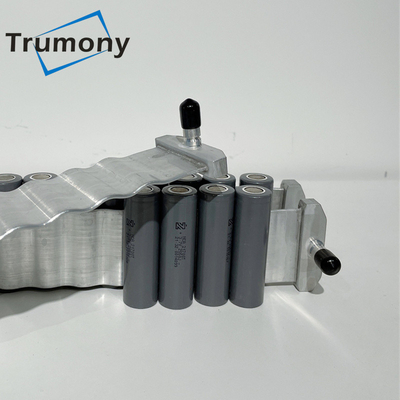

2) Serpentine cooling ribbon
Applied for cylindrical cells: 18650, 21700, 3270, 4680 and etc;
3) Micro-channel tube with manifold
For battery pack side or bottom battery cooling;
4) Roll bonding cooling plate;
5) Friction stir welding plate
It has a simpler welding process, higher production efficiency, higher weld strength, and can avoid problems such as pores and liquid leakage in high-temperature fusion welding.
Our Advantages:
1. Tooling development — we do it in house, so we can make initial testing prompt and accurate.
2. Making all kinds of heat exchangers — we can do customized shape, to make the parts fit into different packs.
3. Assistance in parts design — we have experienced engineer team, they can provide professional suggestions regarding feasibility of carrying out new designs.
4. One station service — we can do heat exchangers, as well as its related insulation and silicon pad. So client can get integrated solution.
Test Ability:
|
Chemical Composition Test |
YES |
|
Pysical Test & Optics Test |
YES |
|
Roughness Test & Hardness Test |
YES |
|
Elongation Test |
YES |
|
Salt Spray Test |
YES |
|
Burst Test |
YES |
|
Nitrogen & Helium Test |
YES |
|
Flow Resistance Test |
YES. Inside &outside corrosion test |
|
Voltage Test |
YES |
|
Under Water Test |
YES. Check the leakage for welding |
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 1100 | ≤0.95(Si+Fe) | 0.05~0.20 | ≤0.05 | -- | -- | ≤0.10 | --- | --- | |
| 3102 | ≤0.40 | ≤0.70 | ≤0.1 | 0.05~0.4 | --- | --- | ≤0.3 | --- | ≤0.10 |
It can be customized according to customers' request!
Mechanical Properties
| Alloy | Temper | Tensile Strength | Yeild Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥200MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥200MPa | ≥25% |
FAQ:
Q: Are you a trading company or manufacturer?
A: Yes,we are a factory with more than 10 years history in this industry.
Q: What method of processing technology?
A: We have brazing line, stamping line, extrusion line, and roll boned process line. Also CNC centre is available.
Q: If we don't have design, can you assist in design?
A: Yes, we can! We have a strong and experienced design team. Flow path design, thermal simulation, mechanical simulation and design optimation are support. Kindly share with us your detail project, service8@trumony.com, we'd love to do DFM for you.
Q: How fast you can make prototype?
A: About 3~5wks. The precise lead time will depends on your design and producing process
