Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger

Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger

    • Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
    • Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger
  • Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger

    Product Details:

    Place of Origin: China
    Brand Name: Trumony
    Certification: TS16949-2008
    Model Number: TR-4343/3003+1%Zn/4343

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Tons
    Price: Negociable
    Packaging Details: Strong Wooden Pallets
    Delivery Time: 30 Working days
    Payment Terms: L/C, T/T
    Supply Ability: 800,000 Per Year
    Contact Now
    Detailed Product Description
    Alloy: 4343/3003+1%Zn/4343 Feature: Cladding, Brazing
    Thickness: As Customer Request

    Application:



    Products are widely delivered in the form of strip or sheet for manufacturing radiator, condensers, evaporators,heter, charge air coolers/intercoolers,engine oil coolers/transmission oil coolers. air cooled condensers,airfin heat exchangers etc.



    Cladding Alloy Aluminum Heat Transfer Fin Foil For Industry Heat Exchanger

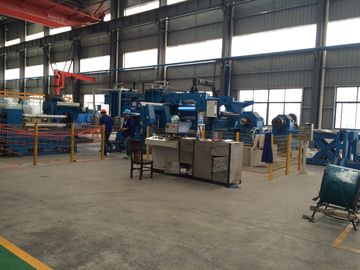

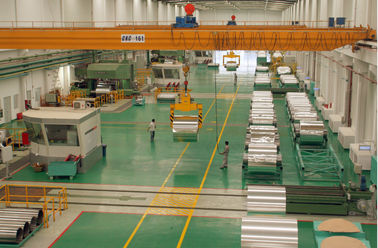

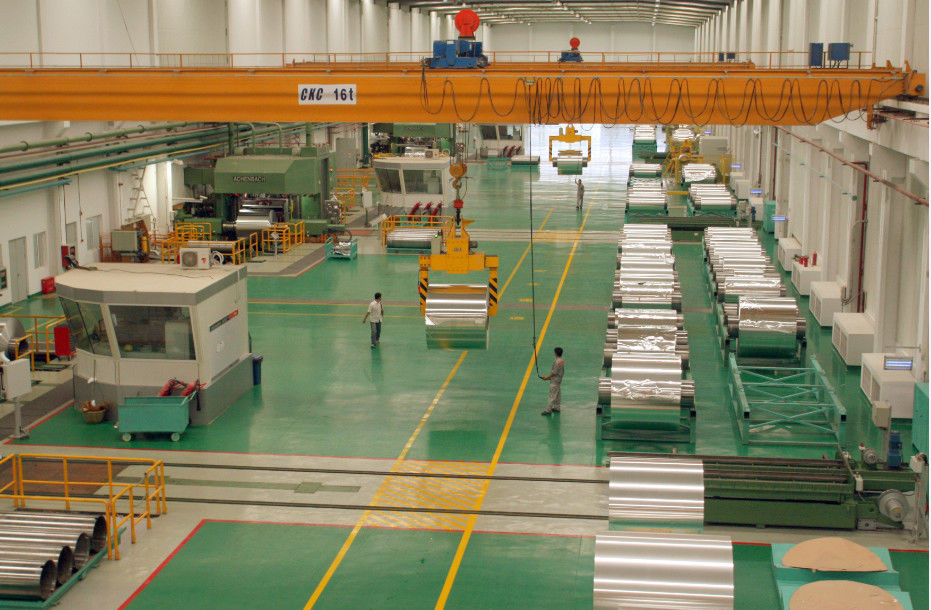

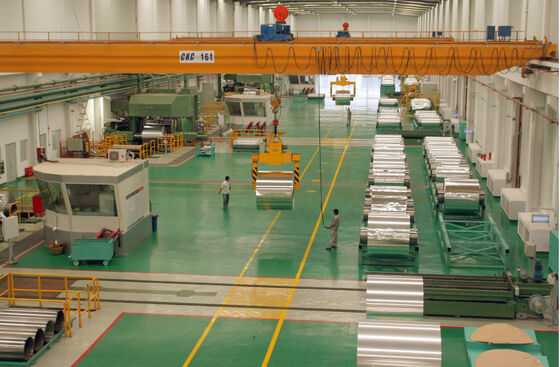

    Description of our production



    Chemical composition of core material,cladding material about aluminum alloy and composite-material for welding heat exchanger



    Core Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
    3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
    3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
    3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
    3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5

    3005

    0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



    Cladding Material

    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
    4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
    4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
    4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
    4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
    7072 0.7 0.1 0.1 0.1 0.8-1.3 6
    5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



    Main mechanical of aluminum alloy and composite-material for welding heat exchanger

    Alloy Code temper

    Tensile Strength

    Rm(MPa)

    Yield Strength Rp0.2(Mpa)

    Extend Ratio

    A50(%)

    TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
    H14 140-185 ≥125 ≥1.5
    H24 140-185 ≥125 ≥3.0
    H16 185-225 ≥160 ≥1.0
    H18 ≥185 - ≥0.5
    TR-166 Etc.tube material H24 185-235 ≥150 ≥8
    TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
    H24 140-185 ≥125 ≥8

    Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
