Product Details:
|
| Alloy: | 3003+1.5%Zn+Zr/3003/3005/3003+1%Zn | Temper: | HO , H14 , H16 , H18,H14SR |
|---|---|---|---|
| Thickness: | 0.5mm,1.5mm,2.0mm Or Other Thickness As Per Customers' Requirement | Width: | 1070mm,1200mm,1250mm Or Other Width As Per Customers' Requirement |
| Length: | 2000mm,2400mm Or Other Length As Per Customers' Requirement | Application: | Radiator/condenser/evaporator/intercooler/oil Cooler/heater |
| Surface: | Mill Finish | ||
| High Light: | aluminium sheet metal,polished aluminium sheet |
||

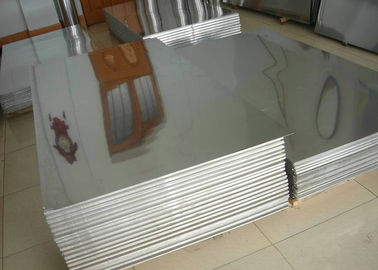

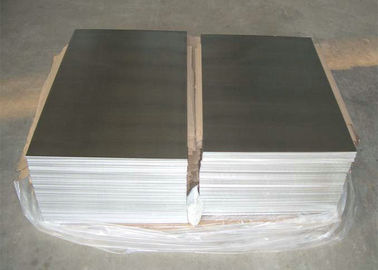

HO H14 H16 H18 Alloy Aluminum Heat Transfer Plates For Auto Radiator Mill Finish
Specification of aluminum plate
1)Core Alloy:3003,3003+1.5%Zn+Zr
2)Cladding alloy: 4343, 4045, 7072, 5052 etc
3)Cladding rate: 4%-18%
4)Temper:HO,H14,H24
5)Regular Thickness:0.5mm,1.2mm,1.5mm,2.0mm or other thickness as per customers' requirement
6)Regular Width: 1070mm,1200mm,1250mm or other width as per customers' requirement
7)Regular length: 2000mm,2400mm or other length as per customers' requirement
8)Other sizes is available according to customers' request
Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.1 | 0.05 | 0.03 | 1 |
| 3003+1%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 0.5-1.50 | 0.05 | 0.05 | 2 |
| 3003+1.5%Zn | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | － | 1.0-2.0 | 0.05 | 0.05 | 3 |
| 3003+1.5%Zn+Zr | 0.5-1.0 | 0.7 | 0.05-0.20 | 1.0-1.6 | － | 1.0-2.0 | 0.05-0.2 | - | 4 |
| 3003+0.5%Cu | 0.6 | 0.7 | 0.30-0.70 | 1.0-1.5 | － | 0.10 | 0.05 | 0.1 | 5 |
| 3005 | 0.6 | 0.7 | 0.20-0.40 | 1.0-1.5 | 0.20-0.60 | 0.25 | － | 0.01 | 6 |
Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.2 | － | 0.05 | 1 |
| 4343+1%Zn | 6.8-8.2 | 0.8 | 0.25 | 0.1 | － | 0.5-1.5 | － | 0.05 | 2 |
| 4045 | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.2 | － | 0.2 | 3 |
| 4045+1%Zn | 9.0-11.0 | 0.8 | 0.3 | 0.05 | － | 0.5-1.5 | － | 0.2 | 4 |
| 4004 | 9.0-10.5 | 0.8 | 0.25 | 0.1 | 1.0-2.0 | 0.2 | － | 0.2 | 5 |
| 7072 | 0.7 | 0.1 | 0.1 | 0.1 | 0.8-1.3 | － | － | 6 | |
| 5005 | 0.3 | 0.7 | 0.2 | 0.2 | 0.5-1.1 | 0.5-1.0 | － | 0.03 | 7 |
FAQ:
1, Q: Are you manufacturer?
A: Yes, as a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible, alloy, temper, thickness, width, quantity,application,etc.
4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable material.
5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides, our policy is to offer samples as possible as we can, About sample shippment,you need to pay for the freight,usually freight collect by express.
