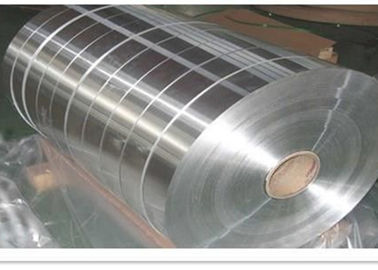

Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14

Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14

    • Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14
    • Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14
  • Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14

    Product Details:

    Place of Origin: China
    Brand Name: Trumony
    Certification: TS16949 , ISO14001 and OHSAS 18001
    Model Number: TR-FR110

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 metric tons
    Price: negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 30 working days after received your down payment
    Payment Terms: T/T or LC
    Supply Ability: 100,000 mt per year
    Contact Now
    Detailed Product Description
    Core Alloy: 3003+1.5%Zn+Zr Clad Alloy: 4343
    Thickness: 0.127mm Width: 25.4mm
    I.D.: 305mm O.D.: ≤1370mm

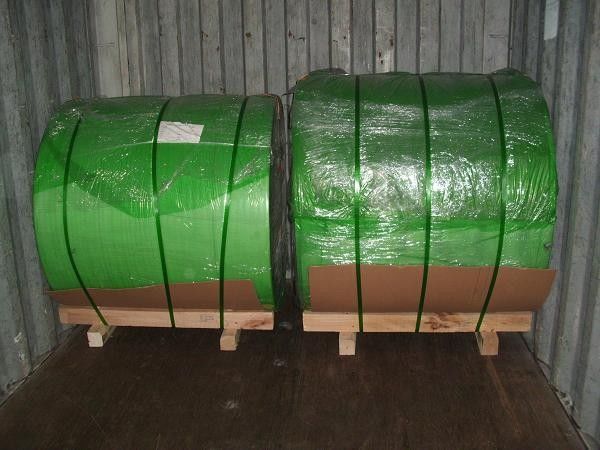

    Packaging: Eye To Sky / Wall Temper: H14
    High Light:

    aluminum foil roll

    ,

    aluminium foil packaging

    0.127 x 25.4mm 4343 / 3003+1.5%Zn / 4343 H14 Aluminum Claddinging Foil Roll for Condenser





    1. Description of our production



    Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger



    1) Core Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
    3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
    3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
    3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
    3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
    3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



    2) Cladding Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
    4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
    4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
    4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
    4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
    7072 0.7 0.1 0.1 0.1 0.8-1.3 6
    5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



    3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger



    Alloy Code temper

    Tensile Strength

    Rm(MPa)

    Yield Strength Rp0.2(Mpa)

    Extend Ratio

    A50(%)

    TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
    H14 140-185 ≥125 ≥1.5
    H24 140-185 ≥125 ≥3.0
    H16 185-225 ≥160 ≥1.0
    H18 ≥185 - ≥0.5
    TR-166 Etc.tube material H24 185-235 ≥150 ≥8

    TR-116,TR-316 Etc.tube

    material

    H14 140-185 ≥125 ≥3
    H24 140-185 ≥125 ≥8



    Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..



    Additional: We can produce special specification according to customer’s request.



    4) Produce capability



      Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
    Sheet 500-1070 0.5-5.0 500-2500 -
    Strip 12-1070 0.2-3.0 - 150,200,300,400,500
    Foil 12-1070 0.05-0.2 - 150,200,300,400,500



    Composite ratio 4-18%(per side)



    Percent Clad(per side) 4-8% > 8-18%
    Cladding tolerance ±1.5% ±2.0%





    2. Our advantage



    1. Since 1988, we have rich experience in this industry in China;



    2. Good reputation in Aluminum and Copper Areas;



    3. We start our productions from aluminum ingot,so we can control the quality as well;



    4. We have our own development department for new material research;



    5. Good experience and cooperation with big client in the world;



    6. With Certificate TS16949, ISO14001 and OHSAS 18001;



    7. High performance cost ratio;



    8. Fast delivery time;



    9. Good communication skills, and good service and understandings for customers;.





    3. Features



    Our product line covers all kinds of alloyed material and specifications which is widely used in the automobile and construction machinery and equipment cooling systems, power station cooling system, micro-channel cooler and all kinds of both commercial and residential air-conditioners.



    Cladding Aluminium Foil Roll With 4343 / 3003 + 1.5% Zn / 4343 Temper H14 0
