Product Details:
|
| Alloy: | 1100 | Temper: | H18 |
|---|---|---|---|
| Thickness: | 0.08mm | Width: | 345mm |
| I.D.: | 75mm | O.D.: | 750-850mm |
| Rm(MPa): | 100-135 | A50(%): | 16 Min |
| Cup Drawing Value(mm): | 5.5 Min | Other Requirements: | According To Customers' Requests |
| High Light: | heavy duty aluminum foil,aluminium foil packaging |
||

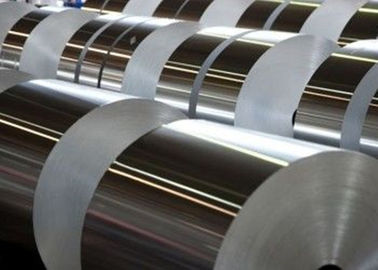

0.08 x 345mm 1100 H18 Customer-made Aluminum Fin Stock for Auto Air Conditioner
1. Description of our production
Our chemical composition:
|
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
| 8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
| 1100 | 0.95 | 0.05-0.2 | 0.05 | － | -- | － | － | 2 | |
| 1200 | 1.00 | 0.05 | 0.05 | － | － | － | 0.05 | 3 | |
Our mechanical property:
| Temper |
Tensile Strength Rm(MPa) |
Erichsen(mm) | Elongation(%) |
| O | 80-110 | 6.0 | 20 |
| H22 | 100-135 | 5.5 | 16 |
| H24 | 115-145 | 5.0 | 12 |
| H26 | 125-160 | 4.0 | 8 |
| H18 | 160 | - | 1 |
Produce capability:
| Product | Width(mm) | Thickness(mm) | O.D.(mm) | Inside Diameters(mm) |
| Fin stock | 60-1440 | 0.08-0.2 | 400-1400 | 75,150,200,300,400 |
2. Our advantage
1. Since 1988, we have rich experience in this industry in China;
2. Good reputation in Aluminum and Copper Areas;
3. We start our productions from aluminum ingot,so we can control the quality as well;
4. We have our own development department for new material research;
5. Good experience and cooperation with big client in the world;
6. With Certificate ISO9001-2008;
7. High performance cost ratio;
8. Fast delivery time;
9. Good communication skills, and good service and understandings for customers;.
3. Application:
1. Household air conditioner
2. Refrigerator
3. Auto AC
4. Auto water tank
4. Features:
Our fin foil is Halogen-free; so healthy environment for welder, it can be use for high temperature;
Besides, it can be used for different products & different Application like for weld backing; heat exchanger; air cooler material; air cooling fin; Air conditioning; Ducting; oil cooler; engineering machinery; Sealing & for Insulation purpose; etc;
