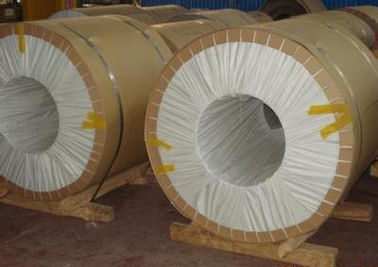

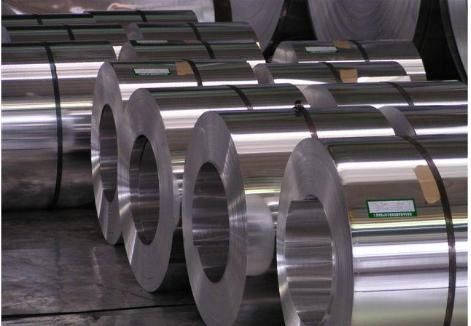

Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343

Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343

    • Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343
    • Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343
  • Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343

    Product Details:

    Place of Origin: China
    Brand Name: Trumony
    Certification: TS16949 , ISO14001 and OHSAS 18001
    Model Number: TR-FR210

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 metric tons
    Price: negotiation
    Packaging Details: Standard export packaging
    Delivery Time: 30 working days after received your down payment
    Payment Terms: T/T or LC
    Supply Ability: 100,000 mt per year
    Contact Now
    Detailed Product Description
    Core Alloy: 3003+1.5%Zn+Zr Clad Alloy: 4343
    Thickness: 0.08mm Width: 1070mm
    I.D.: 254mm O.D.: ≤1500mm
    Packaging: Eye To Wall Temper: H16

    4343/3003+1.5%Zn+Zr/4343 H16 0.08 x 1070mm Aluminum Foil Roll for Automotive Heat Exchangers





    1. Description of our production



    Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger



    1) Core Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
    3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
    3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
    3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
    3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
    3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



    2) Cladding Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
    4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
    4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
    4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
    4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
    7072 0.7 0.1 0.1 0.1 0.8-1.3 6
    5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



    3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger



    Alloy Code temper

    Tensile Strength

    Rm(MPa)

    Yield Strength Rp0.2(Mpa)

    Extend Ratio

    A50(%)

    TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
    H14 140-185 ≥125 ≥1.5
    H24 140-185 ≥125 ≥3.0
    H16 185-225 ≥160 ≥1.0
    H18 ≥185 - ≥0.5
    TR-166 Etc.tube material H24 185-235 ≥150 ≥8

    TR-116,TR-316 Etc.tube

    material

    H14 140-185 ≥125 ≥3
    H24 140-185 ≥125 ≥8



    Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..



    Additional: We can produce special specification according to customer’s request.



    4) Produce capability



      Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
    Sheet 500-1070 0.5-5.0 500-2500 -
    Strip 12-1070 0.2-3.0 - 150,200,300,400,500
    Foil 12-1070 0.05-0.2 - 150,200,300,400,500



    Composite ratio 4-18%(per side)



    Percent Clad(per side) 4-8% > 8-18%
    Cladding tolerance ±1.5% ±2.0%





    2. Our advantage



    1. Since 1988, we have rich experience in this industry in China;



    2. Good reputation in Aluminum and Copper Areas;



    3. We start our productions from aluminum ingot,so we can control the quality as well;



    4. We have our own development department for new material research;



    5. Good experience and cooperation with big client in the world;



    6. With Certificate TS16949, ISO14001 and OHSAS 18001;



    7. High performance cost ratio;



    8. Fast delivery time;



    9. Good communication skills, and good service and understandings for customers;.





    3. Application:



    We dedicated to the production of clad and unclad aluminum materials for braze-type automobile heat exchangers like radiator, intercooler, condenser, evaporator and industrial heat exchangers, like air coolers for power plants, air conditioner etc.and other aluminum alloy products.





    4. FAQ:



    1, Q: Are you manufacturer?

    A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.



    2, Q: Do you accept customized orders?

    A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.



    3. Q: How can I get one quotation faster?

    A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.



    4, Q: What's your MOQ?

    A: Normally 1 metric tons are requested as the minimum order quantity on our side.



    5, Q: What's your payment term?

    A: 30% deposit in advance via T/T,balance before shipment.



    Automotive Heat Exchangers Aluminium Foil Roll 4343 / 3003 + 1.5% Zn + Zr / 4343
