Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe

China Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe supplier
Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe supplier Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe supplier

Large Image :  Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe

Product Details:

Place of Origin: China
Brand Name: Trumony
Certification: ISO 9001:2000,ISO/TS16949:2002
Model Number: 3003

Payment & Shipping Terms:

Minimum Order Quantity: 5 ton
Price: negotiable
Packaging Details: woods
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 600000mt per year
Contact Now
Detailed Product Description
Alloy: 3003 Temper: H111
Shape: Round Application: Automotive Heat Transfer
Packing: Ply-wood Pallet Specialized For Export Typical Wall Thickness: 0.5mm

Internally Enhanced Round Aluminum Tube 3003 / 3103 Threaded Pipe





Product Description:

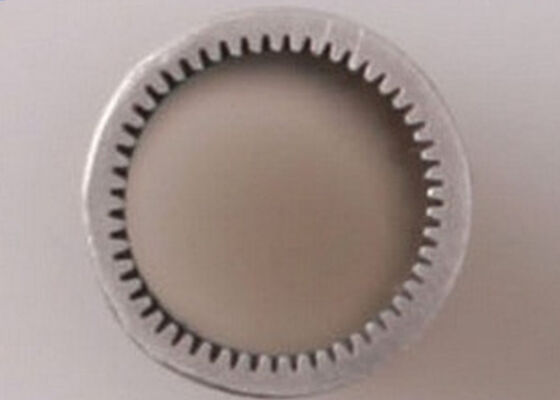

The Aluminum Inner Grooved Tube is following a helical pattern and have been optimized to improve heat transfer. The improvement in heat transfer coefficient of the tube is two times what can be achieved with
traditional smooth bore tubes3. This increased efficiency can help achieve a more compact design of the heat exchangers and a reduction in refrigerant load. different grooves depth and geometry satisfy the specific regional requirements and refrigerants in use.



Parameter for Aluminum Inner Grooved Tube



Specification bottom wall thickness Tooth height Tooth number Helix Angle Rib-top Angle g/m
φ7mm 0.4-0.5 0.05-0.18 40-50 18° 50° 28+/-3
φ9.52mm 0.45-0.55 0.05-0.18 45-55 18° 50° 45+/-3
φ7.94mm 0.4-0.5 0.05-0.18 40-50 18° 50° 40+/-3



The parameters in above form can also be adjusted as per customer's request.
Tensile:120MPa min
Elongation:35% min
Expanding:40% min
Density:2.7



Application:Air-conditioner heat exchanger system



Product feature:


1. Light-weight
2. Good thermal conductivity properties and electrical conductivity
3. Good corrosion resistance
4. Good forming and bending properties
5. High recycling value
6. Small deviation range
7. High surface quality



Production time:15-20 working days

Features



1. Insulation shield for cable; It can be used for protecting the high frequency transmission of telecommunication cable; power cable and electric wire from the interference of electromagnetic and radio wave;
2. Copper foil are widely used for coaxial cable shield and electronic product like EHV cables and RF cables; shielding layer of many other kinds cables;telephone lines and ventilation ducts, etc;
3. Electromagnetic interference shielding;isolate electromagnetic waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to peel; stick force resistance;



FAQ:



1, Q: Are you manufacturer?

A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.



2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.



3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
