Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant
Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

Large Image :  Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: IATF16949:2016
Model Number: btp02
Payment & Shipping Terms:
Minimum Order Quantity: 1 Ton
Price: Negotiable
Packaging Details: wooden pallet
Delivery Time: 35 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 60000 Ton per Year

Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

Description
Material: Aluminum Finish: Mill Finish
Application: Battery Pack Cooling Grade: 3003
Temper: HO Name: Extruded Aluminum Profiles
High Light:

extruded aluminum profiles

,

profile aluminum extrusion



Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

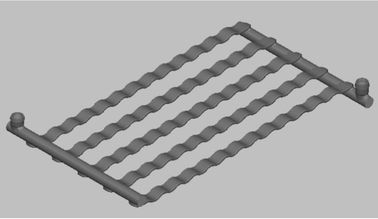

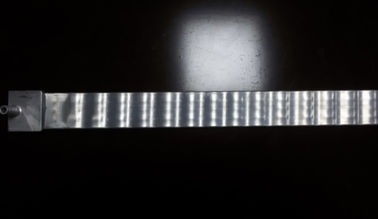

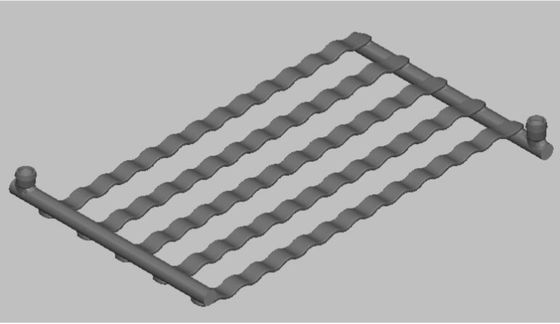

Thermal plate was done by brazing process after aluminum sheets were pressed. It was made from high anti-crosion alloy, 3 series, and well brazed by 4045 brazing material.

Thermal plate was used as bottom plate in battery pack, with running coolant inside, it carries heat generated by batteries to manifolds.

Brief reference of material:
3003

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 0.6 0.7 0.20 1.5 - 0.05 0.10 0.05 - - Rem
Min - - 0.05 1.0 - - - - - - -


4045

Element Si Fe Cu Mn Mg Cr Zn Bi Zr Ti Al
Max 11.0 0.8 0.30 0.05 0.05 0.05 0.10 0.05 - 0.20 Rem
Min 9.0 - - - - - - - - - -


Customized design of plate is available. We have rich experience in battery thermal management, once heat transfer efficiency, space and general info is given, we can provide overall design for battery thermal management, and make recommendation for materials.



Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant 0
