Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

MOQ:	1 Ton
Price:	Negotiable
Standard Packaging:	wooden pallet
Delivery Period:	35 days
Payment Method:	L/C, D/P, T/T
Supply Capacity:	60000 Ton per Year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

IATF16949:2016

Model Number

btp02

Material:

Aluminum

Finish:

Mill Finish

Application:

Battery Pack Cooling

Grade:

Temper:

Name:

Extruded Aluminum Profiles

Highlight:

extruded aluminum profiles

profile aluminum extrusion

Battery Cooling Aluminium Extruded Profiles

Product Description

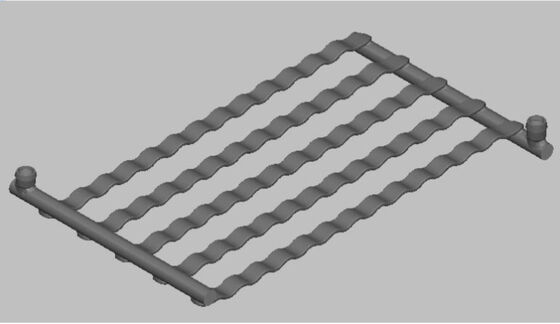

Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant

Thermal plate was done by brazing process after aluminum sheets were pressed. It was made from high anti-crosion alloy, 3 series, and well brazed by 4045 brazing material.

Thermal plate was used as bottom plate in battery pack, with running coolant inside, it carries heat generated by batteries to manifolds.

Brief reference of material:
3003

Element	Si	Fe	Cu	Mn	Mg	Cr	Zn	Bi	Zr	Ti	Al
Max	0.6	0.7	0.20	1.5	-	0.05	0.10	0.05	-	-	Rem
Min	-	-	0.05	1.0	-	-	-	-	-	-	-

4045

Element	Si	Fe	Cu	Mn	Mg	Cr	Zn	Bi	Zr	Ti	Al
Max	11.0	0.8	0.30	0.05	0.05	0.05	0.10	0.05	-	0.20	Rem
Min	9.0	-	-	-	-	-	-	-	-	-	-

Customized design of plate is available. We have rich experience in battery thermal management, once heat transfer efficiency, space and general info is given, we can provide overall design for battery thermal management, and make recommendation for materials.

Battery Cooling Aluminium Extruded Profiles Cold Plate For BEV With Coolant 0
