Product Details:
|
| Name: | Thermal Silicone Pad | Thermal Conductivity: | 1.5-12 W/m*K |
|---|---|---|---|
| Application: | EV Battery Pack | Hardness: | 5~80Shore 00 |
| Density: | 1.8-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Volume Resistivity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | Feature: | Insulation |
| High Light: | Thermal Interface Gap Filler Pads,Insulation Thermal Silicone Pad,Lithium Battery Pack Thermal Silicone Pad |
||

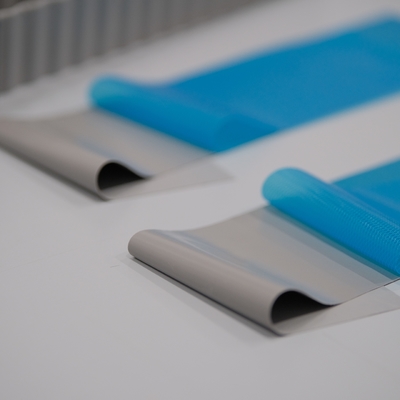

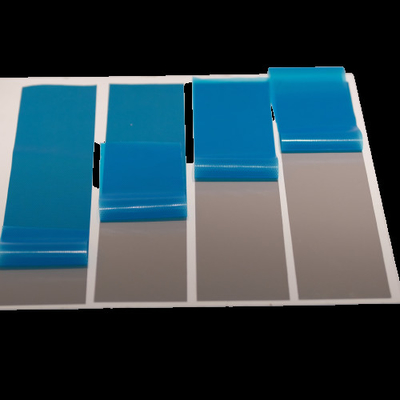

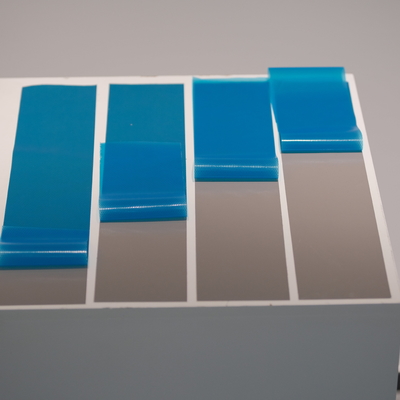

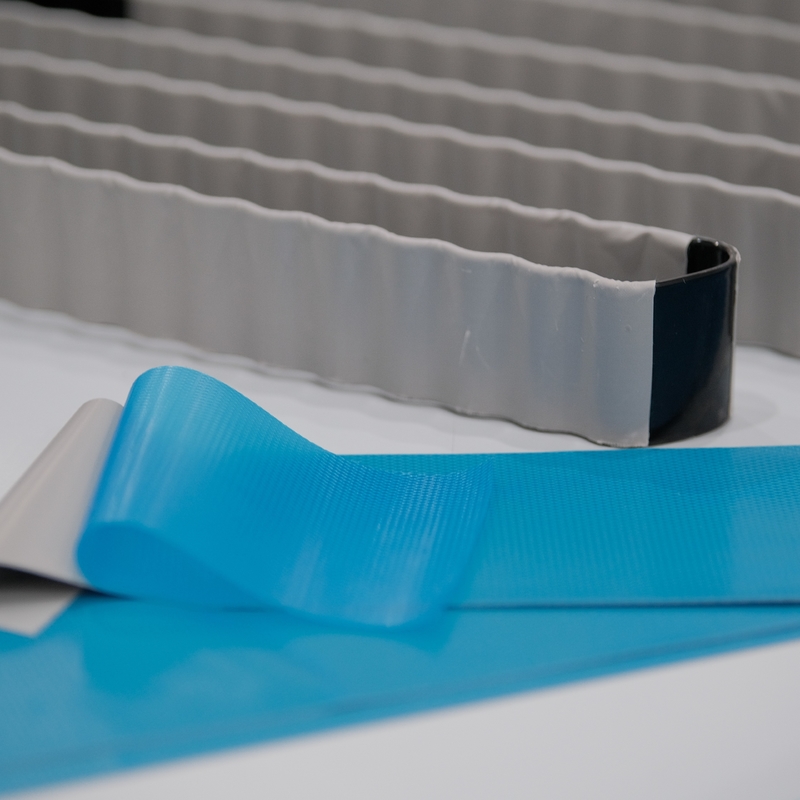

Thermal Interface Materia Thermal silicone pad For Lithium Battery Pack
Thermal silicone pad has a certain degree of flexibility, excellent insulation, compressibility, natural viscosity of the surface, specially for the use of gap heat transfer design scheme production, can fill the gap, complete the heat transfer between the heating part and the heat dissipation part, but also play the role of insulation, shock absorption, can meet the equipment miniaturization and ultra-thin design requirements, is very technological and usability. Thermal silicone pad is an excellent thermal conductive filling material and is widely used in electronic and electrical products.
| Thermal silicone pad Series | ||||||
| Item No. |
Thermal Conductivity (W/m*K)
|
Hardness (Shore 00) |
Density (g/cc) |
Voltage Resistance (KV/MM) |
Volume Resistivity (Ω*cm) |
Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
1, The main purpose of the selection of thermal silicone padis to reduce the contact thermal resistance between the surface of the heat source and the contact surface of the heat dissipation device, thermal silicone pad can fill the gap of the contact surface well;
2, The air is a bad conductor of heat will seriously hinder the transfer of heat between the contact surface, and the heat transfer thermal silicone pad between the heat source and the radiator can squeeze the air out of the contact surface;
3, With the supplement of heat-conducting thermal silicone pad , can make the contact surface between the heat source and the radiator better and full contact, really face-to-face contact, so that the reaction on the temperature can be as small as possible.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal silicone pad and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal silicone pad ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
