Product Details:
|
| Thermal Conductivity: | 0.2-12 W/m*K | Application: | EV Battery Pack，ESS Battery Pack |
|---|---|---|---|
| Density: | 1.8-3.5g/cc | Volume Resistivity: | Volume Resistivity: |
| Color: | Gray/Blue/Pink/Customize | Hardness: | 5~80Shore 00 |
| Flame Rating: | V0 UL-94 | ||
| High Light: | Effective Thermal Pads,Good Conductivity Thermal Pads,Improved Heat Transfer Thermal Pads |
||

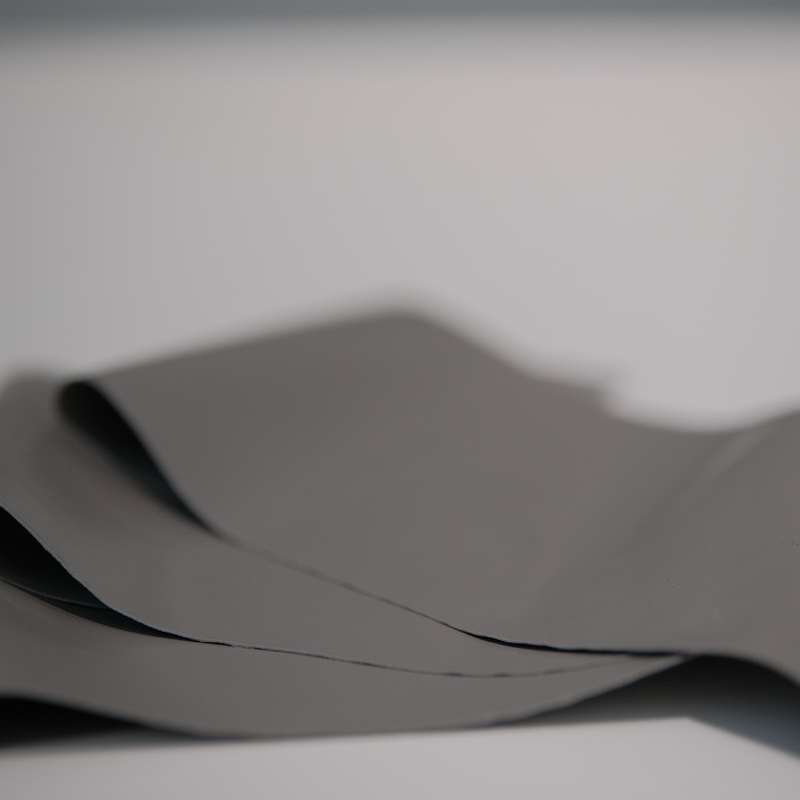

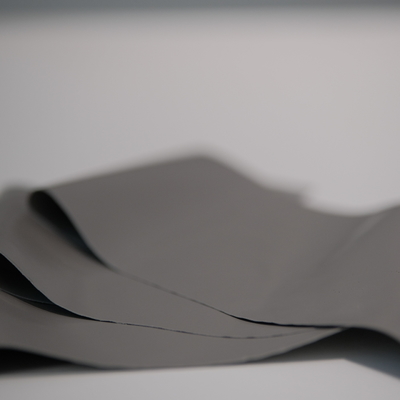

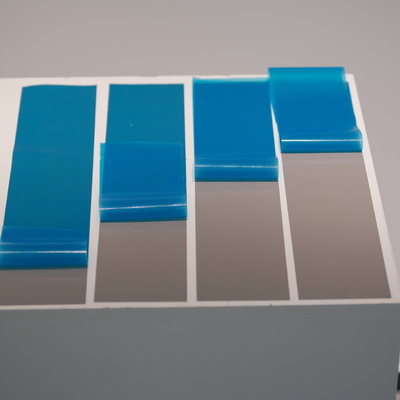

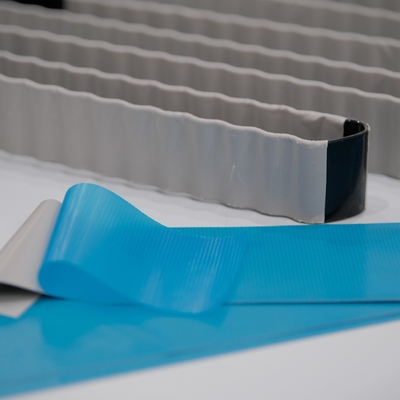

Effective Thermal Pads for Improved Heat Transfer in High Temperature Environments
our premium-grade thermal pads, expertly engineered to provide superior heat dissipation solutions for a wide array of electronic devices and systems. Crafted with precision and functionality in mind, these thermal pads excel in bridging the critical gap between heat-generating components and their respective cooling elements, ensuring optimal thermal management and enhanced system reliability.
Key Features:
1. Exceptional Thermal Conductivity
2. Gap-Filling Capabilities
3. Non-Curing & Non-Corrosive
4. Electrical Insulation
5. Wide Operating Temperature Range
Technological Parameters:
| Thermal Pads Series | ||||||
| Item No. |
Thermal Conductivity (W/m*K)
|
Hardness (Shore 00) |
Density (g/cc) |
Voltage Resistance (KV/MM) |
Volume Resistivity (Ω*cm) |
Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
Our Advatage
Trumony silicone thermal pad are environmentally friendly, flexible and compressible; high efficiency, high insulation, high flame retardant and high compression capacity; high and low temperature resistance, non-oxidation, low oil output, good weather resistance; suitable for various demanding application areas, with good thermal conductivity and suitable for filling mechanism gaps, improving heat transfer efficiency between heating elements and metal radiators.
Advantages of Thermal silicone pad:
1, The main purpose of the selection of thermal silicone padis to reduce the contact thermal resistance between the surface of the heat source and the contact surface of the heat dissipation device, thermal silicone pad can fill the gap of the contact surface well;
2, The air is a bad conductor of heat will seriously hinder the transfer of heat between the contact surface, and the heat transfer thermal silicone pad between the heat source and the radiator can squeeze the air out of the contact surface;
3, With the supplement of heat-conducting thermal silicone pad , can make the contact surface between the heat source and the radiator better and full contact, really face-to-face contact, so that the reaction on the temperature can be as small as possible
FAQ
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 10-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal silicone pad and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal silicone pad ?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
