5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding
  • Name
  • Name

5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding

MOQ: 5 Tons
Price: Negotiable
Standard Packaging: Fumigated wooden pallet specialized for export
Delivery Period: 30 working days
Payment Method: L/C, T/T
Supply Capacity: 800,000 ton per year
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO9001/IATF
Alloy:
5083/5754/5052
Temper:
HO/H111/H112
Thickness:
1.5-120mm
Width:
1000-3100mm
Length:
1000-13000mm
Application:
Shipbuilding/Railtransportation/Automobile Manufacturing
Highlight:

aluminum alloy sheet

,

alloy sheet metal

Product Description

Product name: 5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding/Railtransportation/Automobile manufacturing





We are supplying the aluminum alloy sheet for shipbuilding,the regular alloy are 5083,5754,5052,5086 etc.The width of the aluminum alloy sheet can reach 3100mm,and length can reach 13000mm.The aluminum alloy sheet is the first selection of designers in high-speed ship,such as express ferries,LNG spherical tank type fluid reservoirs,hydrofoils,offshore working ships and yachts,and is widely used to shipboards,bottom plating,portholes,carrier plates,and side plates of ship containers,etc.



Specifications:



Alloy: 5083,5A05,5A06,5754,5052,5383,5A03,5086

Temper:HO,H111,H112,H116,H24,H32,H321

Size:Thickness(1.5-120mm);Width(1000-3100mm);Length(1000-13000mm)



Chemical composition:



ALLOY NO. Si Fe Cu Mn Mg Cr Zn Ti OTHER AL
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 0.1     Remainder
5252 0.08 0.1 0.1 0.1 2.2-2.8   0.05     Remainder
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 0.2 0.15   Remainder
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 0.25 0.15   Remainder
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1



Product Features:



Large width,anti corrosion,small elastic modulus,easy to welding,easy processing,without low temperature brittleness as well as non-magnetic.



Technical parameter:



Typical alloy: 5083
Temper:

HO,H32,H116
Thickness(mm): 1.5-120mm
Width(mm): 100-3100mm
Length(mm): 1000-13000mm
Application: Shipbuilding/Railtransportation/Automobile manufacturing



Terms and conditions:



Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.

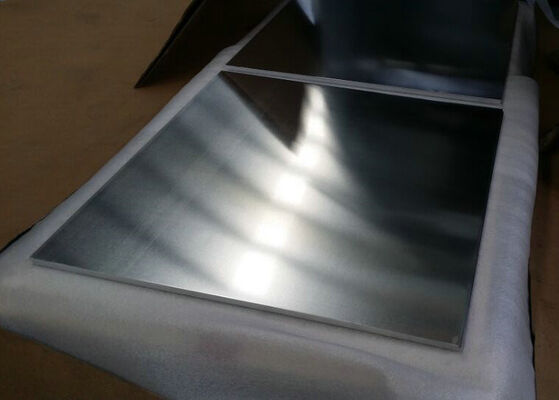

5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding 0
