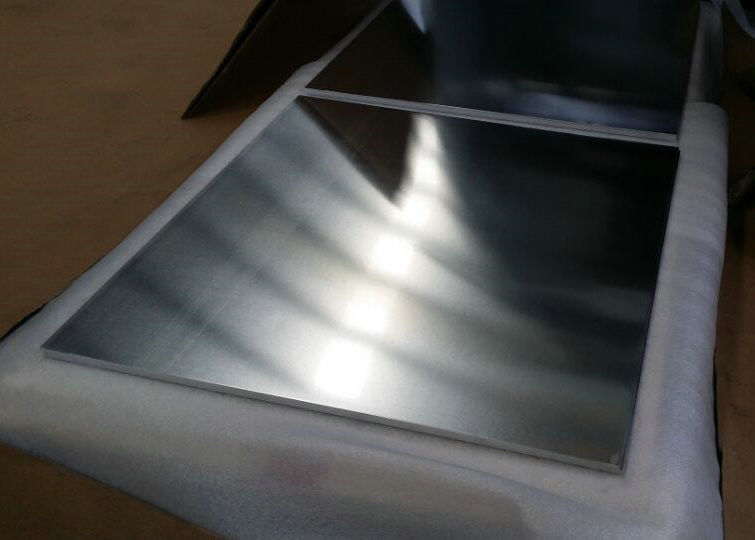

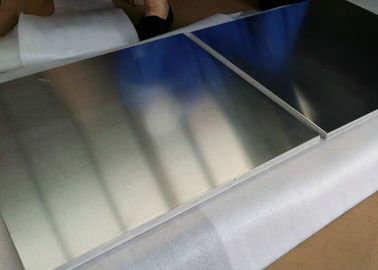

5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: ISO9001/IATF

Trading Properties

Minimum Order Quantity: 5 Tons

Price: Negotiable

Payment Terms: L/C, T/T

Supply Ability: 800,000 ton per year

aluminium discs circles

Specifications

Alloy:	5083/5754/5052	Temper:	HO/H111/H112
Thickness:	1.5-120mm	Width:	1000-3100mm
Length:	1000-13000mm	Application:	Shipbuilding/Railtransportation/Automobile Manufacturing
High Light:	aluminum alloy sheet , alloy sheet metal

Product Description

Product name: 5083 Marine Grade Hot Rolled Aluminium Alloy Sheet For Shipbuilding/Railtransportation/Automobile manufacturing

We are supplying the aluminum alloy sheet for shipbuilding,the regular alloy are 5083,5754,5052,5086 etc.The width of the aluminum alloy sheet can reach 3100mm,and length can reach 13000mm.The aluminum alloy sheet is the first selection of designers in high-speed ship,such as express ferries,LNG spherical tank type fluid reservoirs,hydrofoils,offshore working ships and yachts,and is widely used to shipboards,bottom plating,portholes,carrier plates,and side plates of ship containers,etc.

Specifications:

Alloy: 5083,5A05,5A06,5754,5052,5383,5A03,5086

Temper:HO,H111,H112,H116,H24,H32,H321

Size:Thickness(1.5-120mm);Width(1000-3100mm);Length(1000-13000mm)

Chemical composition:

ALLOY NO.	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	OTHER	AL
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.15-0.35	0.1			Remainder
5252	0.08	0.1	0.1	0.1	2.2-2.8		0.05			Remainder
5754	0.4	0.4	0.1	0.5	2.6-3.6	0.3	0.2	0.15		Remainder
5083	0.4	0.4	0.1	0.4-1.0	4.0-4.9	0.05-0.25	0.25	0.15		Remainder
5182	0.2	0.35	0.15	0.2-0.5	4.0-5.0	0.1	0.25	0.1

Product Features:

Large width,anti corrosion,small elastic modulus,easy to welding,easy processing,without low temperature brittleness as well as non-magnetic.

Technical parameter:

Typical alloy:	5083
Temper:	HO,H32,H116
Thickness(mm):	1.5-120mm
Width(mm):	100-3100mm
Length(mm):	1000-13000mm
Application:	Shipbuilding/Railtransportation/Automobile manufacturing

Terms and conditions:

Trade term:CIF / CFR / FOB
Payment term:30% before production+70% before shipment;or 100% Irrevocable L/C at sight;Or we can further cummunicate with each other about this part.
Shipment:Normally it is about 30-35days
MOQ:5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
Quantity tolerance:+/-10% of total quantity as confirmed PI.
