Corrosion Resistant 0.06mm 3003MOD Double Cladded Aluminium Foil Rolls 120 - 150Mpa

MOQ:	5 metric tons
Price:	negotiation
Standard Packaging:	Standard export packaging
Delivery Period:	30 working days after received your down payment
Payment Method:	T/T or LC
Supply Capacity:	100,000 mt per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO14001 , TS16949 , OHSAS 18001

Model Number

TR-FR020

Alloy:

3003+1.5%Zn

Temper:

Thickness:

0.06mm

Width:

I.D.:

305+/-5mm

O.D.:

1750mm Max

Packaging:

Eye To Sky

Other Requirements:

Other Requirements Are Available According To Customer's Request

Highlight:

aluminum foil roll

aluminium foil packaging

Product Description

0.06 x 27mm 3003+1.5%Zn H14 Corrosion-resistant Aluminum Double Claded Fin for Automotive Radiator

1. Description of our production

Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger

1) Core Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
3003	0.6	0.7	0.05-0.20	1.0-1.5	－	0.1	0.05	0.03	1
3003+1%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	0.5-1.50	0.05	0.05	2
3003+1.5%Zn	0.6	0.7	0.05-0.20	1.0-1.5	－	1.0-2.0	0.05	0.05	3
3003+1.5%Zn+Zr	0.5-1.0	0.7	0.05-0.20	1.0-1.6	－	1.0-2.0	0.05-0.2	-	4
3003+0.5%Cu	0.6	0.7	0.30-0.70	1.0-1.5	－	0.10	0.05	0.1	5
3005	0.6	0.7	0.20-0.40	1.0-1.5	0.20-0.60	0.25	－	0.01	6

2) Cladding Material

Alloy	Si	Fe	Cu	Mn	Mg	Zn	Zr	Ti	code
4343	6.8-8.2	0.8	0.25	0.1	－	0.2	－	0.05	1
4343+1%Zn	6.8-8.2	0.8	0.25	0.1	－	0.5-1.5	－	0.05	2
4045	9.0-11.0	0.8	0.3	0.05	－	0.2	－	0.2	3
4045+1%Zn	9.0-11.0	0.8	0.3	0.05	－	0.5-1.5	－	0.2	4
4004	9.0-10.5	0.8	0.25	0.1	1.0-2.0	0.2	－	0.2	5
7072	0.7		0.1	0.1	0.1	0.8-1.3	－	－	6
5005	0.3	0.7	0.2	0.2	0.5-1.1	0.5-1.0	－	0.03	7

3) Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

4) Produce capability

	Width(mm)	Thickness(mm)	Length(mm)	Inside Diameters(mm)
Sheet	500-1070	0.5-5.0	500-2500	-
Strip	12-1070	0.2-3.0	-	150,200,300,400,500
Foil	12-1070	0.05-0.2	-	150,200,300,400,500

Composite ratio

4-18%(per side)

Percent Clad(per side)	4-8%	＞ 8-18%
Cladding tolerance	±1.5%	±2.0%

2. Our advantage

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in Aluminum and Copper Areas;

3. We start our productions from aluminum ingot,so we can control the quality as well;

4. We have our own development department for new material research;

5. Good experience and cooperation with big client in the world;

6. With Certificate TS16949, ISO14001 and OHSAS 18001;

7. High performance cost ratio;

8. Fast delivery time;

9. Good communication skills, and good service and understandings for customers;.

3. Application:

1. Oil Cooler

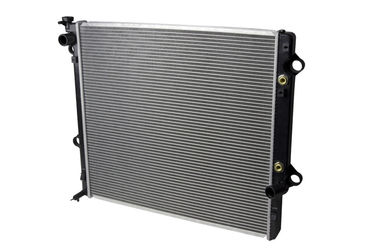

2. Automobile Radiator

3. Automobile Heater Core

4. Condenser

5. Evaporator

4. FAQ:

1, Q: Are you manufacturer?

A: Yes, we are established in 1988. As a manufacturer our customers are welcome to visit our factory.

2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible, alloy, temper, thickness, width, quantity,application,etc.

4. Q: If I can not offer above information,what should I do?

A: Try your best to offer more information,we will help you design suitable material.

5. Q: What is your company sample policy?

A: As one supplier,we see that sample is necessary for our both sides, our policy is to offer samples as possible as we can, About sample shippment,you need to pay for the freight,usually freight collect by express.
