PRODUCTS DETAILS

Home > Products >

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

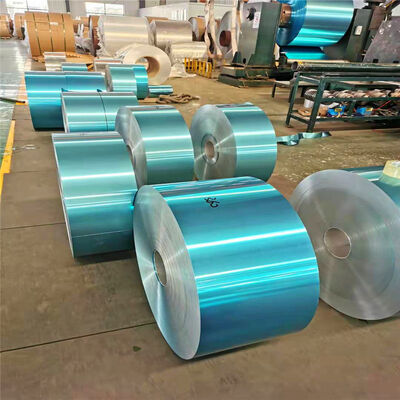

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer

MOQ:	5-6 ton for one master coil
Price:	negociated
Standard Packaging:	Fumigated pallet specialized for export/Ply-wood box specialized for export
Delivery Period:	25-35 days
Payment Method:	L/C, T/T
Supply Capacity:	100,000 ton per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO14001/IATF16949

Model Number

Alloy:

1100/8011

Temper:

O/H22/H24/H26

Thickness:

0.08-0.2mm

Width:

60-1440mm

75/150/200/300/400mm

400-1400mm

Application:

Household Air Conditioner/Refrigerator/Auto AC/Auto Water Tank

Color:

Aluminum Original Color/Blue/Golden

Highlight:

colored aluminum foil

aluminum foil containers

Product Description

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer

Quick Details:

1 , Products : Hydrophilic Aluminum Fin Stock/Aluminum foil

2 , Alloy : 1000 series , 3000 Series , 8000 series

3 , Aluminum Thickness (mm) : 0.08 ~ 0.2 mm

4 , Temper : O,H22, H24 , H26

5 , Width : 60-1440mm

6 , Coil wight : < / = 5000 kg

7 , I D : 75/150/200/300/400

Remarks : 1 . The alloy , temper & size can be negotiated by buyer and seller

2 , Width can be 50 ~ 800mm as per customer's requirement.

Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code	temper	Tensile Strength Rm(MPa)	Yield Strength Rp_0.2(Mpa)	Extend Ratio A₅₀(%)
TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc.	O	95-135*	≥35*	≥15*
	H14	140-185	≥125	≥1.5
	H24	140-185	≥125	≥3.0
	H16	185-225	≥160	≥1.0
	H18	≥185	-	≥0.5
TR-166 Etc.tube material	H24	185-235	≥150	≥8
TR-116,TR-316 Etc.tube material	H14	140-185	≥125	≥3
TR-116,TR-316 Etc.tube material	H24	140-185	≥125	≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer 0

Production standard :

As per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other		Al
Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Single	Total	Al
1050	0.25	0.4	0.05	0.05	0.05	_	0.05	0.03	0.03	_	≥99.5
1060	0.25	0.35	0.05	0.03	0.03	_	0.05	0.03	0.03	_	≥99.6
1100	Si+Fe:0.95		0.05~0.40	0.05	_	_	0.1	_	0.05	0.15	≥99
1200	Si+Fe:1.00		0.05	0.05		_	0.1	0.05	0.05	0.15	≥99

8011

0.5~0.9

0.6~1.0

0.1

0.2

0.05

0.1

0.08

0.05

0.15

Remainder

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer 1

Quality Assurance :
We have strictly quality control system from aluminium coil to finish aluminium products,to make sure that only qualified product will be deliveried to clients .And our production process is approved by SGS and TS16949 ,

Our advantages:

1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in copper cable industry;

3. We have our own development department for new material research;

4. Good experience and cooperation with big client in the world;

5. With Certificate ISO9001-2008;

6. High performance cost ratio;

7. Fast delivery time;

8. Good communication skills, and good service and understandings for customers;.

8011 Hydrophilic Blue Aluminum Fin Stock For Air-conditioner Heat Transfer 2
