Product Details:
|
| Alloy: | 1100 | Temper: | H18 |
|---|---|---|---|
| Thickness: | 0.1-500mm | Width: | 300-1510mm |
| Technical: | Mill Finish | Other Requirement: | As Customers |
| High Light: | aluminum foil roll,heavy duty aluminum foil |
||
1.Quick Details ;

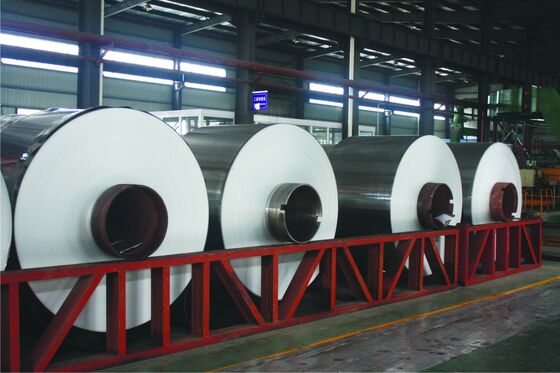

1 , Products : Aluminum coil for exchanger&condensator for A/C
2 , Alloy : 8000 series , 3000 Series , 1000 series
3 , Aluminum Thickness (mm) : 0.1 ~ 0.5 mm
4. Width:300-1510mm
5, Temper : H14 , H16 , H18 ,O
6 , Width : 300 ~ 1510 mm
7 , Coil wight : < / = 5000 kg
8 , I D : 75 mm , 105 mm,300mm,400mm
Remarks : 1 . The alloy , temper & size can be negotiated by buyer and seller
2 , Width can be 50 ~ 800mm as per customer's requirement.
2. production standard
As per international standard ASTM OR EN standard ,
all chemical composition ,mechanical property ,size tolerance ,flat tolerance ,etc strictly as per ASTM OR EN standard
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al | |
| Single | Total | ||||||||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | _ | 0.05 | 0.03 | 0.03 | _ | ≥99.5 |
| 1100 | Si+Fe:0.95 | 0.05~0.40 | 0.05 | _ | _ | 0.1 | _ | 0.05 | 0.15 | ≥99 |
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
|
TR-116,TR-316 Etc.tube material |
H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..
| Since 1988, we have rich experience in this industry in China; |
| Good reputation in copper cable industry; |
| We have our own development department for new material research; |
| Good experience and cooperation with big client in the world; |
| With Certificate ISO9001-2008; |
| High performance cost ratio; |
| Fast delivery time; |
| Good communication skills, and good service and understandings for customers;. |
1, Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
4. Q:What is your MOQ?
A: Normally 5 metric ton.
5. Q: What is your payment term?
A: 30% deposit in advance viaT/T, balance before shipment.
