Product Details:
|
| Name: | Thermal Conductive Pad | Thermal Conductivity: | 1.5-12W/m*K |
|---|---|---|---|
| Application: | EV Battery Pack | Hardness: | 5~80Shore 00 |
| Density: | 1.8-3.5g/cc | Voltage Resistance: | 6-10 KV/mm |
| Volume Resistivity: | 10^12 Ω*cm | Flame Rating: | V0 UL-94 |
| Color: | Gray/Customize | Size: | Customize |
| High Light: | Customized Thermal Conductive Pad,3W/MK Thermal Gap Pad,Lithium Battery Electric Vehicle Conductive Pad |
||

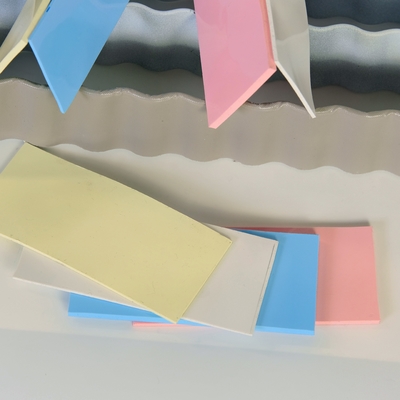

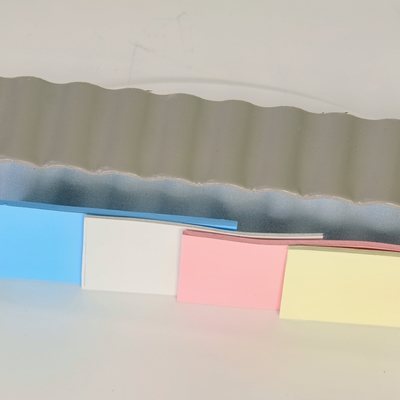

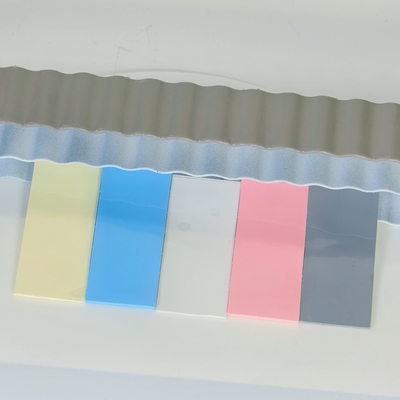

3W / M * K Thermal Gap Pads Conductive Pad for Lithium Battery Electric Vehicle
| Thermal Pads Series | ||||||
| Item No. |
Thermal Conductivity (W/m*K)
|
Hardness (Shore 00) |
Density (g/cc) |
Voltage Resistance (KV/MM) |
Volume Resistivity (Ω*cm) |
Flame Rating (UL-94) |
| 301-0150 | 1.5 | 5~80 | 1.8 | 10 | 10^12 | V0 |
| 301-0200 | 2 | 5~80 | 2 | 10 | 10^12 | V0 |
| 301-0300 | 3 | 15~80 | 3.0 | 8 | 10^12 | V0 |
| 301-0400 | 4 | 15~80 | 3.3 | 8 | 10^12 | V0 |
| 301-0600 | 6 | 20~80 | 3.5 | 8 | 10^12 | V0 |
| 301-0800 | 8 | 30~80 | 3.6 | 8 | 10^12 | V0 |
| 301-1000 | 10 | 30~80 | 3.3 | 6 | 10^12 | V0 |
| 301-1200 | 12 | 30~80 | 3.2 | 6 | 10^12 | V0 |
1.The thermal conductivity is adjustable and the thermal conductivity stability is better
2.The process difference in the structure is closed, and the process difference requirements of the radiator and the cooling structure are reduced.
3.It is easy to install, test and reuse.
4.The material is soft, good compression performance, good thermal conductivity and insulation performance, the thickness of the adjustable range is relatively large, suitable for filling the cavity, both sides have natural viscosity, operability and maintainability.
A)How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B)Sample time?
Within 110-30 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the thermal pads and the packages if you can meet our MOQ.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of thermal conductive pads?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) : Do you accept R & D assignments?
Yes, as long as we can do products, we can according to Your Design Requirements of individual R & D.
