Customized Heavy Duty Aluminium Foil Roll Cold Chain Aluminum Brazing Material

China Customized Heavy Duty Aluminium Foil Roll Cold Chain Aluminum Brazing Material supplier

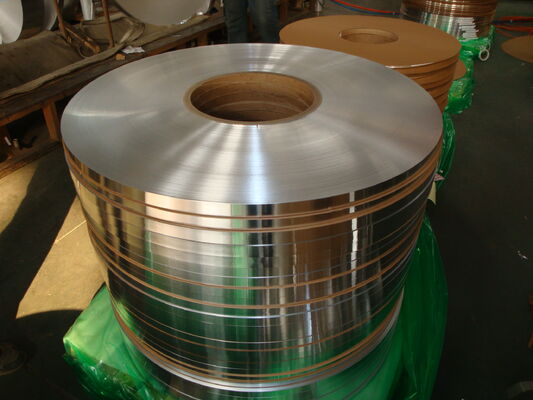

Large Image :  Customized Heavy Duty Aluminium Foil Roll Cold Chain Aluminum Brazing Material

Product Details:

Place of Origin: China
Brand Name: Trumony
Certification: TS16949-2008
Model Number: TR-141

Payment & Shipping Terms:

Minimum Order Quantity: 5 Tons
Price: Negotiable
Packaging Details: Standard export packaging
Delivery Time: 30 working days after received your down payment
Payment Terms: D/P, L/C, T/T
Supply Ability: 100,000 mt per year
Contact Now
Detailed Product Description
Material: Brazing Thickness: 0.05-0.6mm
Width: 5-200mm

1.Specification of aluminium strip:
1) Core Alloy: 1060, 3003, 5052 etc
2) Cladding alloy: 4343, 4045, 7072, 5052 etc
3) Cladding rate: 4%-18%
4) Thickness: 0.2-3.0mm
5) Width: 12 - 1250mm (max)
6) Temper: HO, H14 etc
7) I. D.: 150mm, 200mm, 300mm, 400mm, 500mm
8) Normal O. D.: 900-1450mmm
9) Other sizes is available according to customer's request



2.Description of our production

Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger

Core Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6

                                                       Cladding Material

Alloy Si Fe Cu Mn Mg Zn Zr Ti code
4343 6.8-8.2 0.8 0.25 0.1 0.2 0.05 1
4343+1%Zn 6.8-8.2 0.8 0.25 0.1 0.5-1.5 0.05 2
4045 9.0-11.0 0.8 0.3 0.05 0.2 0.2 3
4045+1%Zn 9.0-11.0 0.8 0.3 0.05 0.5-1.5 0.2 4
4004 9.0-10.5 0.8 0.25 0.1 1.0-2.0 0.2 0.2 5
7072 0.7 0.1 0.1 0.1 0.8-1.3 6
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.5-1.0 0.03 7



Main mechanical of aluminum alloy and composite-material for welding heat exchanger

Alloy Code temper

Tensile Strength

Rm(MPa)

Yield Strength Rp0.2(Mpa)

Extend Ratio

A50(%)

TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3.0
H16 185-225 ≥160 ≥1.0
H18 ≥185 - ≥0.5
TR-166 Etc.tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8

Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..

Additional: We can produce special specification according to customer’s request.

Produce capability

  Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
Sheet 500-1070 0.5-5.0 500-2500 -
Strip 12-1070 0.2-3.0 - 150,200,300,400,500
Foil 12-1070 0.05-0.2 - 150,200,300,400,500



Composite ratio 4-18%(per side)



Percent Clad(per side) 4-8% > 8-18%
Cladding tolerance ±1.5% ±2.0%



3.Our advantage



1. We have rich experience in this industry in China since 1988 ;



2. We own good reputation in Aluminum and Copper Areas;



3. We can control the quality as well , due to we start our productions from aluminum ingot,;



4. We have our own development department for new material research;



5. Good experience and cooperation with big client in the world;



6. With Certificate TS16949, ISO14001 and OHSAS 18001;



7. High performance cost ratio;



8. Fast delivery time;



9. Good communication skills, and good service and understandings for customers;.
