Product Details:
|
| Alloy: | 3003 | Temper: | H14,H16,H18 |
|---|---|---|---|
| Thickness: | 0.08-0.2mm | Shape: | Rolled |
| Highlight: | aluminium foil rolls,thermal transfer foil |
||

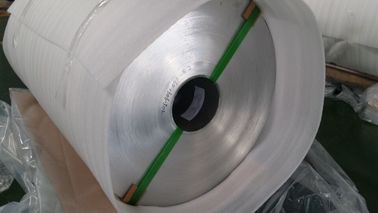

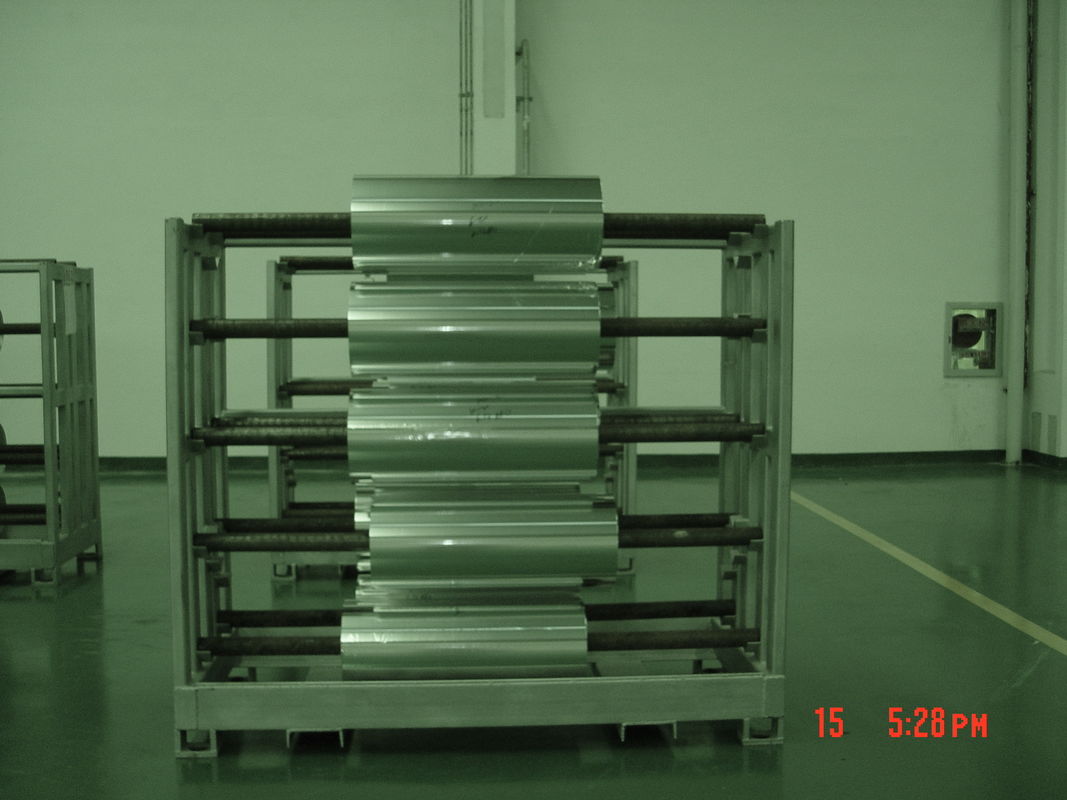

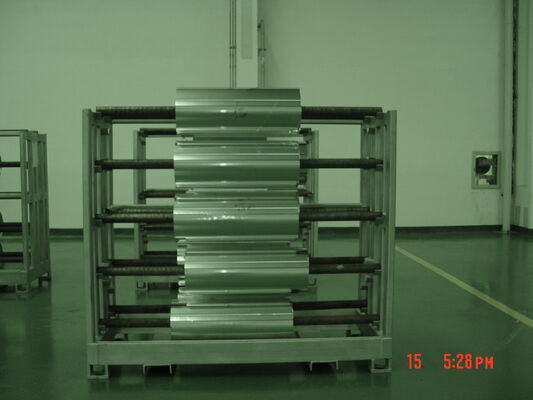

Aluminum Heat Exchanger Foil Fin With 0.08 - 0.2 Thickness Alloy 4343 / 3003 For Engine Oil Coolers
Description of our production ( Ony For Reference )
Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger
Core Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 3003 | 0.6 | 0.7 | 0.05-0.20 | 1.0-1.5 | ן¼ | 0.1 | 0.05 | 0.03 | 1 |
Cladding Material
| Alloy | Si | Fe | Cu | Mn | Mg | Zn | Zr | Ti | code |
| 4343 | 6.8-8.2 | 0.8 | 0.25 | 0.1 | ן¼ | 0.2 | ן¼ | 0.05 | 1 |
Main mechanical of aluminum alloy and composite-material for welding heat exchanger
| Alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| 4343 / 3003 / 4343 | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
Remark:“*”in the above file means the tensile strength will be 120-150Mpa , yield strength will be ≥45Mpa , and elongation will be ≥20% if the material of TR-050 , TR-150 , TR-151,TR-156 etc . with temper O contain Cu .
Additional: We can produce special specification according to customer’s request.
