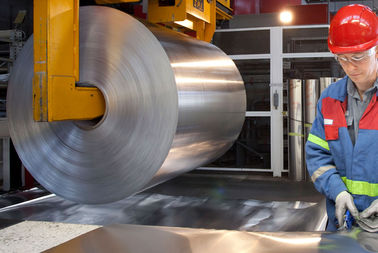

H14 Non - Clad Aluminium Foil Roll for Heat Exchangers 0.08mm Thickness

H14 Non - Clad Aluminium Foil Roll for Heat Exchangers 0.08mm Thickness

    • H14 Non - Clad Aluminium Foil Roll for Heat Exchangers 0.08mm Thickness
    • H14 Non - Clad Aluminium Foil Roll for Heat Exchangers 0.08mm Thickness
  • H14 Non - Clad Aluminium Foil Roll for Heat Exchangers 0.08mm Thickness

    Product Details:

    Place of Origin: China
    Brand Name: Trumony
    Certification: TS16949 , ISO14001 and OHSAS 18001
    Model Number: TR-FR190

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 metric tons
    Price: negotiation

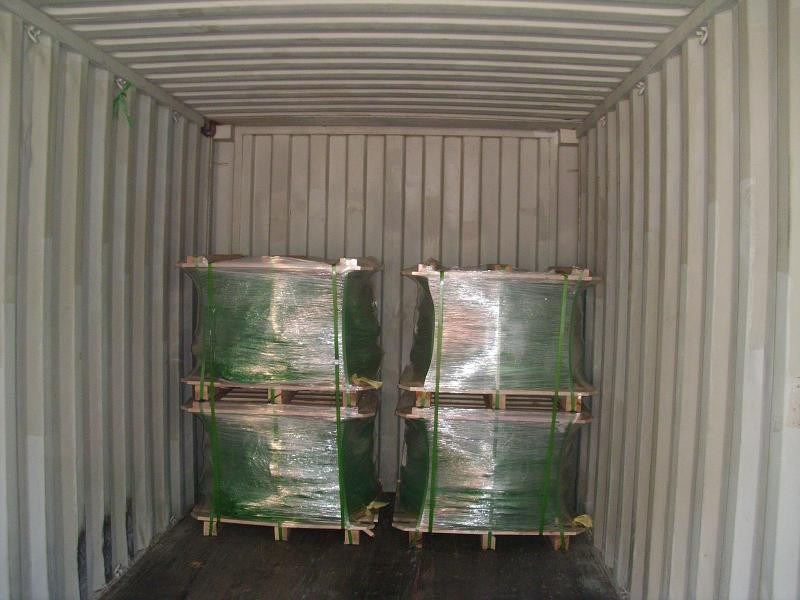

    Packaging Details: Standard export packaging
    Delivery Time: 30 working days after received your down payment
    Payment Terms: T/T or LC
    Supply Ability: 100,000 mt per year
    Contact Now
    Detailed Product Description
    Core Alloy: 3003+1.5%Zn Thickness: 0.08mm
    Width: 14.55mm I.D.: 254mm
    O.D.: ≤1500mm Packaging: Eye To Sky
    Temper: H14

    3003 + 1.5%Zn H14 0.08 x 14.55mm Aluminum Non-clad Foil Roll for Heat Exchangers





    1. Description of our production



    Chemical composition of core material, cladding material about aluminum alloy and composite-material for welding heat exchanger



    1) Core Material



    Alloy Si Fe Cu Mn Mg Zn Zr Ti code
    3003 0.6 0.7 0.05-0.20 1.0-1.5 0.1 0.05 0.03 1
    3003+1%Zn 0.6 0.7 0.05-0.20 1.0-1.5 0.5-1.50 0.05 0.05 2
    3003+1.5%Zn 0.6 0.7 0.05-0.20 1.0-1.5 1.0-2.0 0.05 0.05 3
    3003+1.5%Zn+Zr 0.5-1.0 0.7 0.05-0.20 1.0-1.6 1.0-2.0 0.05-0.2 - 4
    3003+0.5%Cu 0.6 0.7 0.30-0.70 1.0-1.5 0.10 0.05 0.1 5
    3005 0.6 0.7 0.20-0.40 1.0-1.5 0.20-0.60 0.25 0.01 6



    2) Main mechanical of aluminum alloy and composite-material for welding heat exchanger



    Alloy Code temper

    Tensile Strength

    Rm(MPa)

    Yield Strength Rp0.2(Mpa)

    Extend Ratio

    A50(%)

    TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. O 95-135* ≥35* ≥15*
    H14 140-185 ≥125 ≥1.5
    H24 140-185 ≥125 ≥3.0
    H16 185-225 ≥160 ≥1.0
    H18 ≥185 - ≥0.5
    TR-166 Etc.tube material H24 185-235 ≥150 ≥8

    TR-116,TR-316 Etc.tube

    material

    H14 140-185 ≥125 ≥3
    H24 140-185 ≥125 ≥8



    Remark:“*”in the above file means the tensile strength will be 120-150Mpa,yield strength will be ≥45Mpa,and elongation will be ≥20% if the material of TR-050,TR-150,TR-151,TR-156 etc. with temper O contain Cu..



    Additional: We can produce special specification according to customer’s request.



    3) Produce capability



      Width(mm) Thickness(mm) Length(mm) Inside Diameters(mm)
    Sheet 500-1070 0.5-5.0 500-2500 -
    Strip 12-1070 0.2-3.0 - 150,200,300,400,500
    Foil 12-1070 0.05-0.2 - 150,200,300,400,500



    Composite ratio 4-18%(per side)



    Percent Clad(per side) 4-8% > 8-18%
    Cladding tolerance ±1.5% ±2.0%





    2. Application:



    1. Oil Cooler



    2. Automobile Radiator



    3. Automobile Heater Core



    4. Condenser



    5. Evaporator





    3. Features



    Uncladded/Cladded aluminum material is suitable for a variety of brazing processes, such as Nocolok brazing and vacuum brazing, It’s widely used in engine cooling and air conditioner systems in automotive industry; such as radiator;condenser;evaporator;intercooler; oil cooler and heater; In home electrics industries;such as HVAC heat exchanger; water heater;PTC heating unit; In the industrial field;such as power plant cooling systems;construction machinery and air separation equipment; Our cladded aluminum material highly recommended in the market for its stable mechanical properties;stable cladded percentage and excellent corrosion resistance.





    4. F&Q



    1, Q: Are you manufacturer?

    A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.



    2, Q: Do you accept customized orders?

    A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.



    3. Q: How can I get one quotation faster?

    A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.



    4, Q: What's your MOQ?

    A: Normally 5 metric tons are requested as the minimum order quantity on our side.



    5, Q: What's your payment term?

    A: 30% deposit in advance via T/T,balance before shipment.
