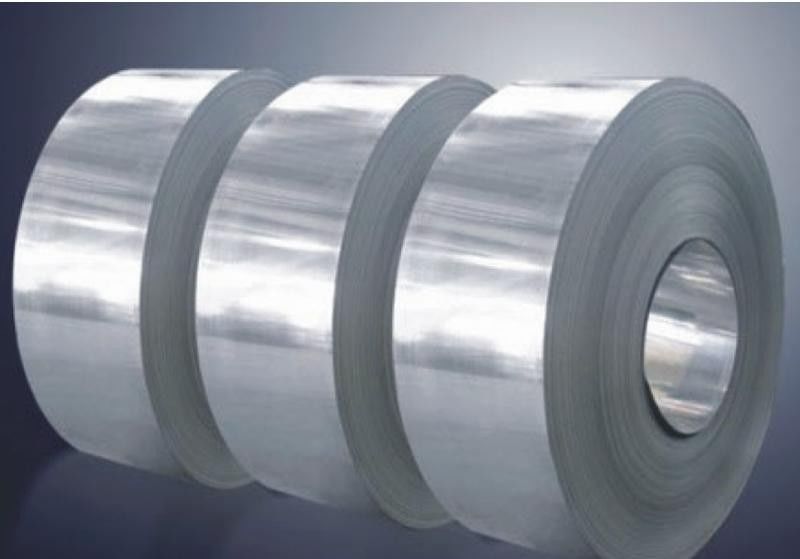

H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D

H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D
H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D

Large Image :  H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: ISO9001-2008
Model Number: TR-3003
Payment & Shipping Terms:
Minimum Order Quantity: 5 Ton
Price: Negociation
Packaging Details: Standard Export Packages
Delivery Time: 30 Working days
Supply Ability: 800,000 Per Year

H26 Temper Architecture Aluminum Coils Grey Colour Coated 405 / 505 mm I.D

Description
Alloy: 3003 Temper: H26
Inside Diameter: 405 / 505 Mm Size: 0.18mm * 1240mm
Front Side: Grey , PE > 8 Um Back Side: Mill Finish
High Light:

aluminium coil

,

aluminium sheet coil

Alloy 3003 H26 Temper Aluminium Coil Coated With Grey Colour For Architecture





Quick Details ;



Products Aluminum Color Coated Coil & Sheets
Alloy 1000 series , 3000 Series , 5000 series
Aluminum
Thickness (mm)
0.2 ~ 1.5 mm
Temper H44 , H46 , H48
Dry Coating Thickness Top Coating : 8 ~ 22 um ;
Pros and cons single bottom coating : 7 ~ 20
Width 700 ~ 1600 mm
Coil wight < / = 5000 kg
I D 405 mm , 505 mm

Remarks : 1 . The alloy , temper & size can be negotiated by buyer and seller

                  2 , Width can be 50 ~ 800mm as per customer's requirement.



Coating Characteristic Table





Inspection items Coating Types
PVDF PE Ceiling Top Lacquer
No natural clear lacquer With natural clear lacquer
Coating Thickness 26 + /-1 18 + / - 1 20 + / - 1
Glossy Tolerance 60O glossy value ≥ 80 unit , tolerance + / - 10 unit glossy value ≥ 80 unit , tolerance + / - 10unit
60O glossy value ≥ 20 ~ 80 unit , tolerance + / - 7 unit glossy value≥20 ~ 80 unit , tolerance + / - 7 unit
60O glossy value >20 unit , tolerance + / - 5unit 60O glossy value >20 unit , tolerance + / - 5unit
Pencil Hardness ≥ IH ≥ 2H ≥2H
Flexible ≤2T ≤3T ≤2T
Impact Resistance No failing , No crack No failing , No crack
Adhesive Quality 0 grade and 1 grade 0 grade and 1 grade
Acid Resistance No Change Coating no change
Alkalistability No change -
Solventresistance Bottom not appearance after 100 times Bottom not appearance after 100 times Bottom not appearance after 100 times Bottom not appearance after 100 times
Color Difference The coating color is almost same as confirmed by buyer and seller , the color difference tested by colorimeter between single coating and sample is less tan 1.2 , same lot products color difference



Introduction of Products



Aluminum Color Coated Coil produced by nice coated equipment, advantaged technology , coated by various color and different thickness , appearance colorful and shining products.

The products mainly used to produce aluminum composite panels , aluminum single sheet, aluminum beehive sheets, veined coating aluminum coil and mainly used in aluminum rooler shutter and roller blinds , aluminum ceiling , aluminum door and widows, scan sign , decorating car , boat , aluminum container, home appliances , kitchen ware and cabinet, control panel , light - fixture , furniture sun power reflector panel and so on .





Order Procedure



Color Comfirmation



Customer provides sample or color card and code -- Painter matches the color as per the sample -- Coating and getting sampl -- Customer  confirms the sample



Mill Finish Aluminum Coil comfirmation



Customer provides technical standard --- Technology confirms to meet the technical requirement



Above two confirmed , arranging production as per order
