Product Details:
|
Alloy: | 8011 , 3003 , 1100 | Appliction: | Demostic Heat Exchanger |
---|---|---|---|
Thickness: | 0.2 - 3.0 Mm | ||
High Light: | aluminum sheet roll,aluminium sheet coil |

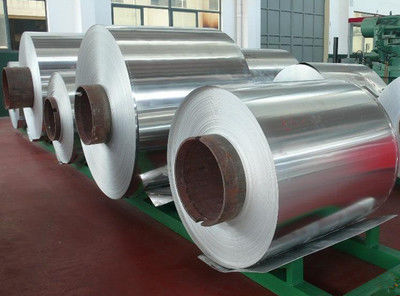

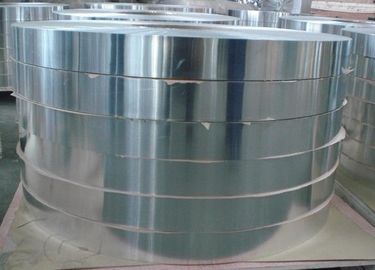

Alloy 8011 With Customized Thickness Of Aluminium Coil For Home Heat Exchanger
Quick Details ,
1 ) Alloy: 8011,3003,3A21,5052,1060, 1145 and etc.,
2 ) Temper: HO, H22, H14, H24 and etc.,
3 ) Thickness: 0.06-3.0mm
4 ) Width: 12 - 1250mm (max)
5 ) I. D.: 150mm, 200mm, 300mm, 400mm, 500mm
6 ) Normal O. D.: 900-1450mmm
7 ) coating material: hydrophilic coating;epoxy coating;
8 ) coating color: blue, gold, green and etc,.
9 ) Other sizes and specifications are available according to customer's request
Description of our production
Our chemical composition:
Alloy |
Si | Fe | Cu | Mn | Mg | Zn | Cr | Ti | code |
8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.1 | 0.05 | 0.08 | 1 |
3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | - | 0.1 | - | - | 2 |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.1 | 0.15-0.35 | - | 3 |
1060 | 0.25 | 0.35 | 0.05 | 0.03 | 0.03 | 0.05 | - | - | 4 |
1145 | Si+Fe:0.55 | 0.05 | 0.05 | 0.05 | - | - | 0.03 | 5 | |
3A21 | 0.6 | 0.7 | 0.2 | 1.0-1.6 | 0.05 | 0.1 | - | 0.15 | 6 |
