PRODUCTS DETAILS

Home > Products >

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Products

Aluminum Air Battery

sales4@trumony.com

+86 18018119117

Contact Now

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

MOQ:	500KG for mass quantity,sample quantity can also be arranged
Price:	Negotiation
Standard Packaging:	Standard export packaing
Delivery Period:	30days including tooling time
Payment Method:	T/T, L/C, D/A, D/P
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

SGS/IATF/ISO

Model Number

TR-AEP001

Alloy:

Temper:

Thickness:

1-10mm

Width:

100-200mm

Length:

600-3000mm

Surface Treatment:

Extruded Finish

Application:

Automobile Heat Exchangers

Packing:

Ply-wood Box Specialized For Export

Highlight:

aluminium foil safety

aluminum foil sheets

Product Description

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Product Introduction:

Micro-multiport extrusion aluminum tube (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, MPE tube is particularly well suited for the use in evaporators & condensers. MPE tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated MPE tubes, it can be supplied in the form of coils, or fixed length by non-cutting separation method.

The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality

Our strength is based on three solid pillars:
1) Strong Mold R&D ability: our independent mold center, which enables to master the core technology with fast response, it not only meets customer's demands, but also ensures timely delivery.
2) High-quality product: We adopt the ISO9001:2000 quality management system.
3) Outstanding service: Providing technical support for the customers and aftersale service for the customer all around the world whenever they need.

Equipment introduction:

Production Line	Number	Equipment Details	Annual Output
Heat Extruding Line	6	800T/one to one/ 1 set 2000T/one to four/2 sets 2500T/one to six/3 sets (Phase II)	12000 Tons
Decoiling Cutting Line	12	Double Tubes	10000 Tons
Tooling Center	1	Series devices	5000 sets
Industrial Profiles Production Line	1	1650T	4500 Tons
Integrated Productivity	Micro channel aluminum flat tube: 12000 Tons Industrial Profiles: 4500 Tons

Typical Chemical composition:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Mechanical properties:

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Surface Treatment : With Zinc spraying or without Zinc spraying.

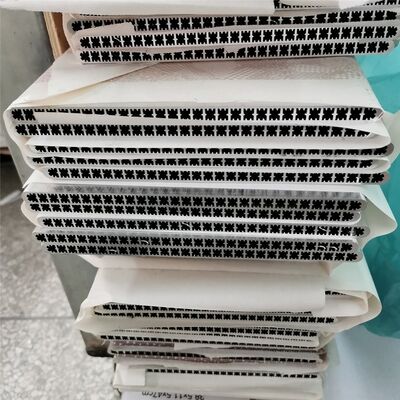

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer 0

Tags:

Products

MOQ:	500KG for mass quantity,sample quantity can also be arranged
Price:	Negotiation
Standard Packaging:	Standard export packaing
Delivery Period:	30days including tooling time
Payment Method:	T/T, L/C, D/A, D/P
Supply Capacity:	100000 tons yearly

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

SGS/IATF/ISO

Model Number

TR-AEP001

Alloy:

3003

Temper:

H112

Thickness:

1-10mm

Width:

100-200mm

Length:

600-3000mm

Surface Treatment:

Extruded Finish

Application:

Automobile Heat Exchangers

Packing:

Ply-wood Box Specialized For Export

Minimum Order Quantity:

500KG for mass quantity,sample quantity can also be arranged

Price:

Negotiation

Packaging Details:

Standard export packaing

Delivery Time:

30days including tooling time

Payment Terms:

T/T, L/C, D/A, D/P

Supply Ability:

100000 tons yearly

Highlight

aluminium foil safety

aluminum foil sheets

Product Description

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Product Introduction:

The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

Equipment introduction:

Production Line	Number	Equipment Details	Annual Output
Heat Extruding Line	6	800T/one to one/ 1 set 2000T/one to four/2 sets 2500T/one to six/3 sets (Phase II)	12000 Tons
Decoiling Cutting Line	12	Double Tubes	10000 Tons
Tooling Center	1	Series devices	5000 sets
Industrial Profiles Production Line	1	1650T	4500 Tons
Integrated Productivity	Micro channel aluminum flat tube: 12000 Tons Industrial Profiles: 4500 Tons

Typical Chemical composition:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Mechanical properties:

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Surface Treatment : With Zinc spraying or without Zinc spraying.

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer 0
