3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer
3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer 3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Large Image :  3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: SGS/IATF/ISO
Model Number: TR-AEP001
Payment & Shipping Terms:
Minimum Order Quantity: 500KG for mass quantity,sample quantity can also be arranged
Price: Negotiation
Packaging Details: Standard export packaing
Delivery Time: 30days including tooling time
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 100000 tons yearly

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer

Description
Alloy: 3003 Temper: H112
Thickness: 1-10mm Width: 100-200mm
Length: 600-3000mm Surface Treatment: Extruded Finish
Application: Automobile Heat Exchangers Packing: Ply-wood Box Specialized For Export
High Light:

aluminium foil safety

,

aluminum foil sheets

3003 Aluminum Extruded Tube 100-200mm Width For Heat Transfer



Product Introduction:

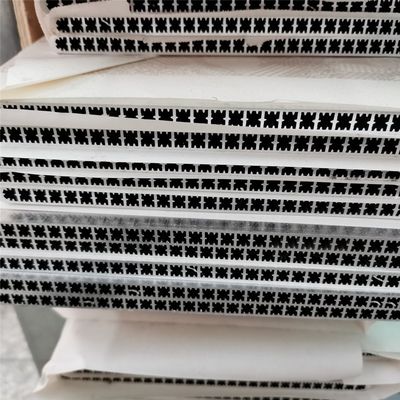

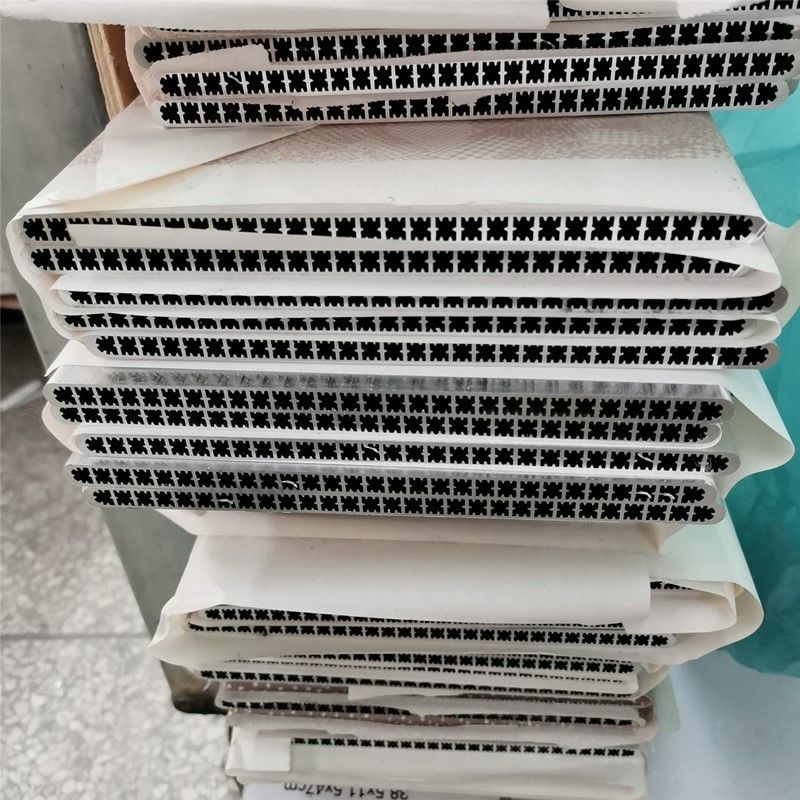

Micro-multiport extrusion aluminum tube (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, MPE tube is particularly well suited for the use in evaporators & condensers. MPE tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated MPE tubes, it can be supplied in the form of coils, or fixed length by non-cutting separation method.


The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:

1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality


Our strength is based on three solid pillars:
1) Strong Mold R&D ability: our independent mold center, which enables to master the core technology with fast response, it not only meets customer's demands, but also ensures timely delivery.
2) High-quality product: We adopt the ISO9001:2000 quality management system.
3) Outstanding service: Providing technical support for the customers and aftersale service for the customer all around the world whenever they need.



Equipment introduction:

Production Line Number Equipment Details Annual Output
Heat Extruding Line 6 800T/one to one/ 1 set
2000T/one to four/2 sets
2500T/one to six/3 sets (Phase II)
12000 Tons
Decoiling Cutting Line 12 Double Tubes 10000 Tons
Tooling Center 1 Series devices 5000 sets
Industrial Profiles Production Line 1 1650T 4500 Tons
Integrated Productivity Micro channel aluminum flat tube: 12000 Tons
Industrial Profiles: 4500 Tons



Typical Chemical composition:

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Mechanical properties:

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%



Surface Treatment : With Zinc spraying or without Zinc spraying.
