Product Details:
|
| Temper: | H*2/H*4/T4/T6 | Application: | Automobile Manufacturing |
|---|---|---|---|
| Specification: | As Customize | Transport Package: | Wooden, As Customize |
| Highlight: | polished aluminium sheet,aluminium composite sheet |
||

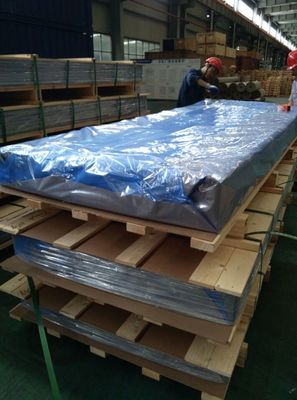

Eorrosion Proof 6063 H*2/H*4/T4/T6 Aluminum Plate Used in Automobile Manufacturing and Rail Transit.
1.Introduction
As aluminum reserves in the crust is very rich, It has more advantages over other metals. Aluminum in the future will still have a wide range of applications, for example, the car manufacturers are currently exploring the use of aluminum instead of steel, and make the car lighter. With the progress of technology, aluminum products not only in the aerospace, transportation, electronic power, construction and other traditional applications but also continue to grow rapidly in the new areas.
6063 aluminum alloy
6063 Aluminum Alloy is widely used in frame construction aluminum doors and windows, curtain walls, doors and windows, in order to ensure the curtain has a high wind resistance performance, assembly performance, corrosion resistance and decorative properties, the comprehensive performance of the Aluminum Alloy profile requirements is much higher than the standard industrial profiles. 6063 Aluminum Alloy composition range specified in the national standard GB/T3190 in the value of different chemical components, will get different material properties, chemical composition when the range is large, the difference of the performance fluctuates in a large range, so that the performance profiles will be unable to control.
Thickness:0.8-7.0mm
Width:1000-1350mm
Length:2000-13000mm
2.Metal content
Si: 0.20-0.60
Fe: 0.35
Cu: 0.10
Mn: 0.10
Mg:0.45-0.9
Zn: 0.10
Cr:0.10
Ti:0.10
Al: Remainder
| Alloy NO. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other | Al |
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | ≥99.5 | |
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | 0.05 | Remainder | |||
| 4047 | 11.0-13.0 | 0.8 | 0.3 | 0.15 | 0.1 | 0.2 | Remainder | |||
| 5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | 0.1 | Remainder | ||
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | Remainder | |
| 7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | 5.1-6.1 | 0.2 | Remainder |
| alloy Code | temper |
Tensile Strength Rm(MPa) |
Yield Strength Rp0.2(Mpa) |
Extend Ratio A50(%) |
| TR-010,TR-020,TR-030,TR-040,TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156 Etc. | O | 95-135* | ≥35* | ≥15* |
| H14 | 140-185 | ≥125 | ≥1.5 | |
| H24 | 140-185 | ≥125 | ≥3.0 | |
| H16 | 185-225 | ≥160 | ≥1.0 | |
| H18 | ≥185 | - | ≥0.5 | |
| TR-166 Etc.tube material | H24 | 185-235 | ≥150 | ≥8 |
|
TR-116,TR-316 Etc.tube material |
H14 | 140-185 | ≥125 | ≥3 |
| H24 | 140-185 | ≥125 | ≥8 |
3.The flow chart
4.Company
Trumony Aluminum Limited is committed to providing clean aluminum material solution to the market. 'Through the discovery and creation, to bring value to customers' is the company philosophy. A manufacturer of aluminum materials with many years' experience, it was established in 2006. Through years of developing, we have supplied products to many large companies with different series of materials. Now we are widely engaged in transportation, heat exchange, cable, packaging, construction, electronics, environmental protection and other fields, Apart from our current production, we are also actively developing new aluminum materials and searching for customers solutions which is best suited for different industries to meet the precise needs of customers.
If you have the need about slitting, cutting and deep-producing, you can contact us.
Hope we can build the relationship in the future.
