MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102

MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102
MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102 MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102

Large Image :  MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102

Product Details:
Place of Origin: China
Brand Name: Trumony
Certification: ISO 9001:2000,ISO/TS16949:2002
Model Number: 3003
Payment & Shipping Terms:
Minimum Order Quantity: 5 ton
Price: negotiable
Packaging Details: woods
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T
Supply Ability: 600000mt per year

MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102

Description
Alloy: 3003 Temper: H111
Shape: Round Application: Automotive Heat Transfer
Packing: Woods Other Requirement: As Customers
High Light:

aluminium alloy tube

,

round aluminum tubing

Detailed Product Description



Alloy: 3003,3102,1100,1050 Temper: O,F,H111,H112
Shape: Flat Oval Applications: Radiators,Condensers,Evaporators
Surface: Zinc-spraying Or Mill Finished

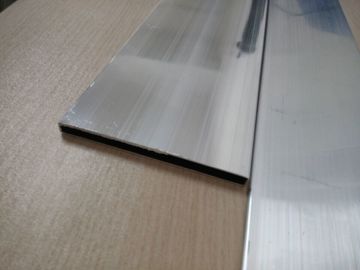

Micro-Channel Flat Aluminum Tube / Micro-Multiport Extrusion Aluminum Tube / MPE Aluminum Tube



Product Introduction:

Micro-multiport extrusion aluminum tube (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, MPE tube is particularly well suited for the use in evaporators & condensers. MPE tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated MPE tubes, it can be supplied in the form of coils, or fixed length by non-cutting separation method.


The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:



1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤0.25 ≤0.40 ≤0.05 ≤0.05 ≤0.05 --- ≤0.05 ≤0.05 ≤0.03
2 1100 ≤0.95(Si+Fe) 0.05-0.20 ≤0.05 --- --- ≤0.10 --- ---
3 3102 ≤0.40 ≤0.70 ≤0.10 0.05-0.40 --- --- ≤0.30 --- ≤0.10
4 3003 ≤0.15 ≤0.15 ≤0.01 0.90-1.10 ≤0.03 ≤0.03 ≤0.05 ≤0.05 ≤0.05


Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%


The corrosion resistance performance
Salt spray test ≥750hours

The pressure resistance performance

Automobile Condensers Household Condensers Evaporators
≥9MPa ≥13.5 MPa ≥3.5 MPa



Applications:

Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.



The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.



MPE Width 7-120mm
Height 1-10mm
Wall thickness 0.2-0.5mm
Other non-standard dimensions are available upon request.


Package: In coil or Straight with fixed length.


Surface Treatment : With Zinc spraying or without Zinc spraying.

MPE Flat Aluminium Tube with Low Weight Micro - Channel Aluminum Radiator Tube 3003 /3102 0





Features



1. Insulation shield for cable; It can be used for protecting the high frequency transmission of telecommunication cable; power cable and electric wire from the interference of electromagnetic and radio wave;
2. Copper foil are widely used for coaxial cable shield and electronic product like EHV cables and RF cables; shielding layer of many other kinds cables;telephone lines and ventilation ducts, etc;
3. Electromagnetic interference shielding;isolate electromagnetic waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to peel; stick force resistance;





FAQ:



1, Q: Are you manufacturer?

A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.



2, Q: Do you accept customized orders?

A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.



3. Q: How can I get one quotation faster?

A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
