Product Details:
|
| Alloy: | 3003 | Temper: | H111 |
|---|---|---|---|
| Shape: | Round | Application: | Automotive Heat Transfer |
| Packing: | Woods | Other Requirement: | As Customers |
| Highlight: | aluminium alloy tube,round aluminum tubing |
||
| Alloy: | 3003,3102,1100,1050 | Temper: | O,F,H111,H112 |
|---|---|---|---|
| Shape: | Flat Oval | Applications: | Radiators,Condensers,Evaporators |
| Surface: | Zinc-spraying Or Mill Finished |

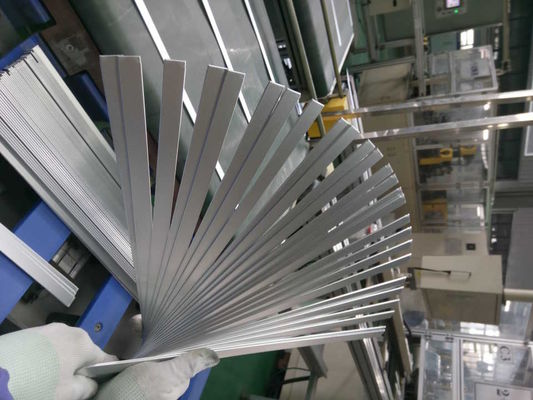

Micro-Channel Flat Aluminum Tube / Micro-Multiport Extrusion Aluminum Tube / MPE Aluminum Tube
Micro-multiport extrusion aluminum tube (MPE tube) is mainly used for the production of heat exchangers. Due to its high corrosion-resistance & good heat conductivity, MPE tube is particularly well suited for the use in evaporators & condensers. MPE tube is required increased burst strength and better heat conductivity for an optimized product size. To meet the market requirement, we developed zinc-coated & flux coated MPE tubes, it can be supplied in the form of coils, or fixed length by non-cutting separation method.
The Micro-multiport extrusion aluminum tube (MPE tube) is unique tubes developed with the highest manufacturing quality and is characterized by the following properties:
1. Low weight
2. Good thermal and electricity conductivity
3. Good forming and bending capability
4. Good corrosion and pressure resistance
5. High recycling value
6. Narrow tolerance range
7. High surface quality
| No. | Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | V | Ti |
| 1 | 1050 | ≤0.25 | ≤0.40 | ≤0.05 | ≤0.05 | ≤0.05 | --- | ≤0.05 | ≤0.05 | ≤0.03 |
| 2 | 1100 | ≤0.95(Si+Fe) | 0.05-0.20 | ≤0.05 | --- | --- | ≤0.10 | --- | --- | |
| 3 | 3102 | ≤0.40 | ≤0.70 | ≤0.10 | 0.05-0.40 | --- | --- | ≤0.30 | --- | ≤0.10 |
| 4 | 3003 | ≤0.15 | ≤0.15 | ≤0.01 | 0.90-1.10 | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.05 |
| Alloy | Temper | Tensile Strength | Yield Strength | Elongation |
| 1050 | O/F/H111/H112 | ≥65MPa | ≥20MPa | ≥25% |
| 1100 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3102 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| 3003 | O/F/H111/H112 | ≥75MPa | ≥20MPa | ≥25% |
| Automobile Condensers | Household Condensers | Evaporators |
| ≥9MPa | ≥13.5 MPa | ≥3.5 MPa |
Our aluminium tubes are found mainly in applications such as condensers and evaporators for air conditioning systems as well as liquid lines for air conditioning, heater cores and radiators for engine cooling systems, charge air coolers and other cooling systems.
The Multi Port Extruded profiles are available in various sizes and alloys, ensuring the best properties for the purpose required.
| MPE | Width | 7-120mm |
| Height | 1-10mm | |
| Wall thickness | 0.2-0.5mm | |
| Other non-standard dimensions are available upon request. | ||
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.
1. Insulation shield for cable; It can be used for protecting the high frequency transmission of telecommunication cable; power cable and electric wire from the interference of electromagnetic and radio wave;
2. Copper foil are widely used for coaxial cable shield and electronic product like EHV cables and RF cables; shielding layer of many other kinds cables;telephone lines and ventilation ducts, etc;
3. Electromagnetic interference shielding;isolate electromagnetic waves to prevent damage to the human
4. Good insulativity and shielding effectiveness to reduce attenuation;avoid the voltage or current influence function;
5. Good thermal insulation; waterproof; cold resistance;Easy to peel; stick force resistance;
1, Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.
2, Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.
3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.
