3003 / 3102 Micro-channel Multiport Aluminum Extruded Tube For Automobile Condenser

MOQ:	3-5 Ton
Price:	negotiation
Standard Packaging:	plywood case
Delivery Period:	15-20days

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

ISO 9001:2000,ISO/TS16949:2002

Model Number

3003/3102

Alloy:

3003/3102/1100

Temper:

Shape:

Tube Width:

8-200mm

Tube Height:

1-10mm

Tube Length:

300-3000mm

Usage:

Automobile Condenser

Surface Treatment:

Zinc Spraying

Highlight:

aluminium alloy tube

round aluminum tubing

Product Description

3003 / 3102 Micro-channel Multiport Aluminum Extruded Tube For Automobile Condenser

Product Description:

Aluminum flat tube is an important spare part for auto radiators. Good quality aluminum flat oval tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

Commonly used material chemical composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Supply state and mechanical properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Multiport Extruded Aluminum Tube(MPE)- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, has the following properties:

1. Lower energy costs
2. Higher performance
3. Less space and weight
4. High corrosion and pressure resistance
5. High recycling value
6. Pressure drop and silent solution

Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for the following applications:

Condensers
Evaporators

Oil coolers

Radiators
Heater cores

Multiport Extruded Aluminum Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.

Dimensions: Designed to customer specification

Package: coils or Straight with fixed length

Surface Treatment : Zinc spray / without Zinc spray

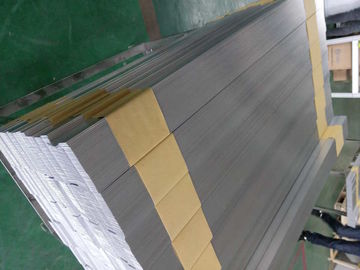

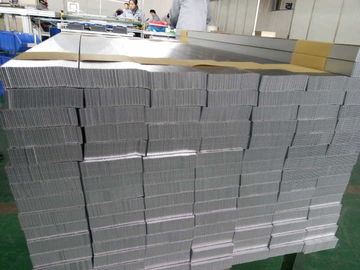

3003 / 3102 Micro-channel Multiport Aluminum Extruded Tube For Automobile Condenser 0
