3003 Flat Extruded Aluminum Radiator Tube For Automobile Intercooler

Name: 3003 Flat Extruded Aluminum Radiator Tube For Automobile Intercooler
Brand: Trumony Aluminum Limited
SKU: TR-ART001
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Trumony

Certification: IATF/ISO/SGS

Model Number: TR-ART001

Trading Properties

Minimum Order Quantity: 3003 Flat Extruded Aluminum Radiator Tube For Automobile Intercooler

Price: negotiation

Payment Terms: T/T, L/C, D/A, D/P

Supply Ability: 100000 tons yearly

stock aluminum extrusion profiles

profile aluminum extrusion

Specifications

Alloy:	3003/3102	Temper:	H112
Shape:	Flat	Production process:	Extrusion
Thickness:	1-10mm	Width:	8-200mm
Length:	500-3000mm	Surface coating:	Zinc Spraying/without Zinc Spraying
Packing:	Ply-wood Box Specialized For Export	Application:	Car Air Conditioning
High Light:	aluminium alloy tube , round aluminum tubing

Product Description

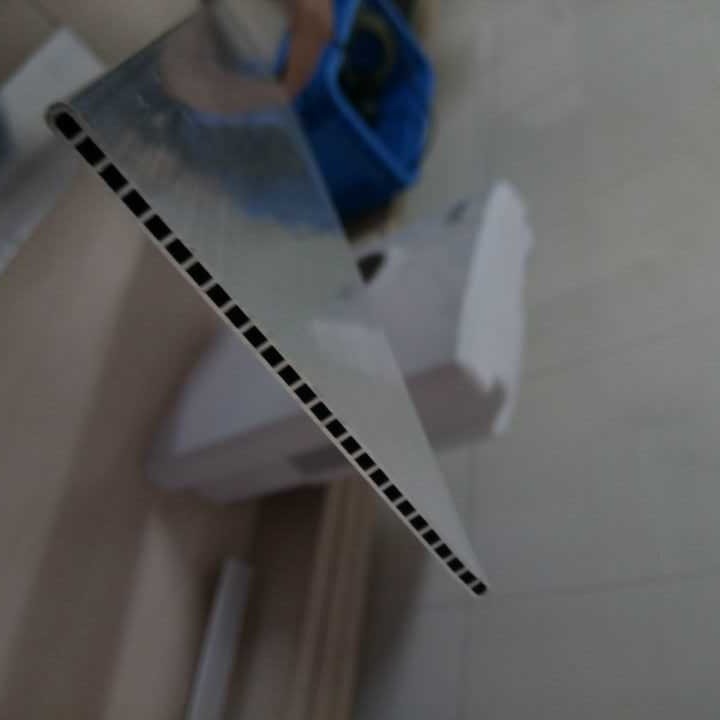

3003 Flat Extruded Aluminum Radiator Tube For Automobile Intercooler

1. Product Description:

Aluminum radiator tube is an important spare part not only for auto radiators,but also for auto condensers,intercoolers etc.Good quality aluminum extruded tubes can protect auto engine, as it ensure your radiator with high efficient cooling performance.

2. Commonly used material chemical composition:

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

3. Supply state and mechanical properties:

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

4. Aluminum extruded tube- which is used for automobile air conditioner condenser has larger internal section area, better effectiveness for heat transfer. At the same time, aluminum extruded tube has the following properties:

1) Lower energy costs
2) Higher performance
3) Less space and weight
4) High corrosion and pressure resistance
5) High recycling value
6) Pressure drop and silent solution

5. Besides increased global performances, an all-aluminium brazed heat exchanger using Aluminum Extruded Flat Tube will also present better corrosion resistance. Aluminum Extruded Flat Tubes are primarily used for the following applications:

Intercoolers
Condensers
Evaporators

Oil coolers

Radiators
Heater cores

6. Aluminum Extruded Flat Tube are available in various sizes and alloys, ensuring the best properties for the purpose required.

7. Dimensions: Designed to customer specification

8. Finished form: Coils or Straight with fixed length

9. Surface Treatment : Zinc spraying / without Zinc spraying

10.Our aluminum extruded radiator tube will be coiled like the picture in below during our production process:

3003 Flat Extruded Aluminum Radiator Tube For Automobile Intercooler 0
