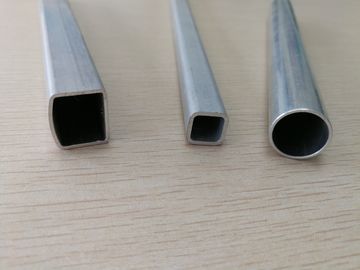

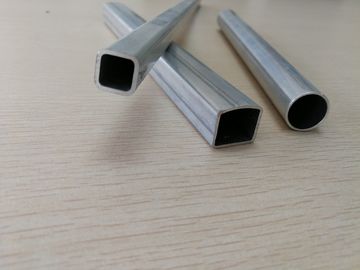

Round / Rectangular / D Type Welded Aluminum Radiator Tube For Automobile Cooling System

Round / Rectangular / D Type Welded Aluminum Radiator Tube For Automobile Cooling System

MOQ: 5 ton
Price: negotiated
Standard Packaging: ply wood case
Delivery Period: 15-20 working days
Payment Method: L/C, T/T
Supply Capacity: 20000 ton
Detail Information
Place of Origin
China
Brand Name
Trumony
Certification
ISO 9001:2000,ISO/TS16949:2002
Model Number
3003/4343
Core Alloy:
3003
Clad Alloy:
4045/4343
Outside Diameter:
4-45mm
Wall Thickness:
0.5-3mm
Highlight:

aluminium alloy tube

,

oval aluminum tubing

Product Description



Round / Rectangular / D Type Welded Aluminum Radiator Tube For Automobile Cooling System

Specification:

Outside diameter 4-45mm
Wall thickness 0.5-3mm
Clad alloy 4045/4343
Core alloy 3003
Shape round/square/D


Commonly used material chemical composition

No. Alloy Si Fe Cu Mn Mg Zn Zr Ti
1 3003 ≤0.6 ≤0.7 ≤0.05-0.2 1.0-1.5 - ≤0.1 ≤0.05 ≤0.03



Supply state and mechanical properties

Alloy Temper Tensile Strength Yield Strength Elongation
1050 O/F/H111/H112 ≥65MPa ≥20MPa ≥25%
1100 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3102 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%
3003 O/F/H111/H112 ≥75MPa ≥20MPa ≥25%




Commonly used specificaitons:

Diameter 16 16 20 20 20 20 22 22 22 22 25 25 25 25 27 30
Thickness 1.3 1.5 1.2 1.15 1.3 1.5 1.15 1.2 1.3 1.5 1.15 1.3 1.5 1.8 1.5 1.5



High precision welded tube has the following advantages:


Low material cost
High heat transfer rate
Reliable brass solder
Light weight
Strong anti-corrosion
High precision
High surface finish


Application:Evaporator;Condenser;Connection tube

Application field:
Air condition,
refrigeration and cooling system;
Automotive air condition;
Solar application


Production time:15-20days



Our advantage:



1. Since 1988, we have rich experience in this industry in China;

2. Good reputation in copper cable industry;

3. We have our own development department for new material research;

4. Good experience and cooperation with big client in the world;

5. With Certificate ISO9001-2008;

6. High performance cost ratio;

7. Fast delivery time;

8. Good communication skills, and good service and understandings for customers;.



FAQ:

1. Q: Are you manufacturer?
A: Yes, we are established in 2003. As a manufacturer our customers are welcome to visit our factory.

2. Q: Do you accept customized orders?
A: Yes, we do. Your customized orders are always welcomed. Please kindly offer us your technical perfrmances or samples so that we can customize the products according to your preferences. About any further detail, please feel free to contact us.

3. Q: How can I get one quotation faster?
A: Pls offer details about your demands as more as possible,insulation thickness,over diameter,nominal voltage,working temperature,color,quantity,application,etc.

4. Q: If I can not offer above information,what should I do?
A: Try your best to offer more information,we will help you design suitable wires&cables.

5. Q: What is your company sample policy?
A: As one supplier,we see that sample is necessary for our both sides,our policy is to offer free sample as possible as we can,just one situation is exception,sample is with very complex structure,besides,we have no it in stock.

About sample shippment,you need to pay for the freight,usually freight collect by express.
