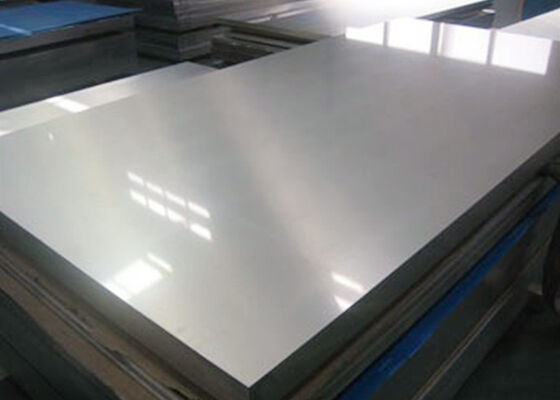

Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
| Color: | Silver | Application: | Transportation Tools |
| Technology: | Hot Rolling | Temper: | T3-T8 |
| Surface Treatment: | Mill Finish | Alloy or not: | Alloy |
| Transport Package: | Standard Export Packaging | Specification: | Thickness: 0.2~3.5mm |
| High Light: | aluminium coil,aluminium sheet coil |
||
Trailer Use Thin Aluminum Sheet , Aluminium Sheet 3mm Mill Finish Surface Treatment
3003,3004,5052 Aluminum alloy wide sheet products suitable for proof and side wall of Van Trailer.
Max Width:2650mm
Length≥10000mm
Three Advantages of Trailer Aluminum Sheet:
1,Large size:Max.width reaches 2650mm and the length ≥ 10000mm
2,High Uniformity:annealed by continuous heat treatment line, and the properties differences of the same coil and between coils are small
3,Precise dimension and excellent flatness: dimension and flatness meet EN/ASTM standard.
Chemical Composition:
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Standard |
| 3003 | 0.60 | 0.70 | 0.05-0.2 | 1.0-1.5 | -- | -- | 0.10 | -- | EN/ASTM |
| 3004 | 0.30 | 0.70 | 0.25 | 1.0-1.5 | 0.8-1.3 | -- | 0.25 | -- | |
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.15-0.35 | 0.10 | -- |
Specification:
1.Roof Plate
| Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) |
| 3003 | H14/H16/H24/H26 | 0.2-3.5 | 2000-2650 | ≥10000 |
| 5052 | H32/34 | 0.2-3.5 | 2000-2650 | ≥10000 |
2.Side Walls
| Alloy | Temper | Thickness(mm) | Width(mm) | Length(mm) |
| 3004 | H36/H38 | 0.2-3.5 | 2000-2650 | ≥10000 |
| 5052 | H32/34 | 0.2-3.5 | 2000-2650 | ≥10000 |
Mechanical Properties:
| Alloy | Temper | Yield Strength(Rp0.2/MPa) | Tensile StrengthRm(MPa) | Elongation A(%) | Standard |
| 3003 | H14 | ≥115 | 140-180 | ≥3 | ASTM |
| H24 | |||||
| H16 | ≥145 | 165-205 | ≥3 | ||
| H26 | |||||
| 3004 | H38 | ≥215 | ≥260 | ≥2 | |
| 5052 | H32 | ≥160 | 215-265 | ≥4 | |
| H36 | ≥200 | 255-305 | ≥2 |
Terms and conditions:
1, Trade term: CIF / CFR / FOB
2, Payment term: 30% before production+70% before shipment
100% Irrevocable L/C at sight
Or we can further cummunicate with each other about this part.
3, Shipment: Normally it is about 30-35days.I
4, MOQ: 5 metric tons for each thickness. (Normally it is formed according to the concrete specifications.)
5, Quantity tolerance: +/-10% of total quantity as confirmed PI.
Commercial terms
| Minimum Order Quantity: | 5 metric tons |
| Price: | negotiation |
| Payment Terms: | T/T or LC |
| Supply Ability: | 50,000 mt per year |
| Delivery Time: | 30 working days after received your down payment |
| Packaging Details: | Standard export packaging |
Applications:
| A variety of applications |
| 1, Transportation(aircraft,high-speed train, ships, cars, etc.) |
| 2, Construction(walls, ceiling, platforms, roofs,aluminum glass spacer, etc.) |
| 3, Digital home appliances(refrigerators, air conditioners, freezers, computers, etc.) |
| 4, Electronic(circuit board pads,capacitors, etc.) |
| 5, Home(cooking utensils,household foil,lunch boxes, etc.) |
| 6, Print(PS sheet, CTP sheet, etc.) |
| 7, Other(tape,pipe packaging,anti-slip pedals, etc.) |
