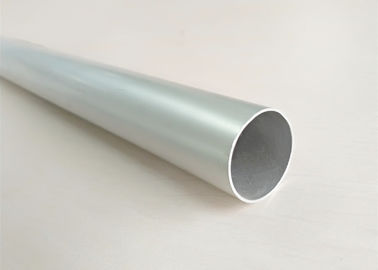

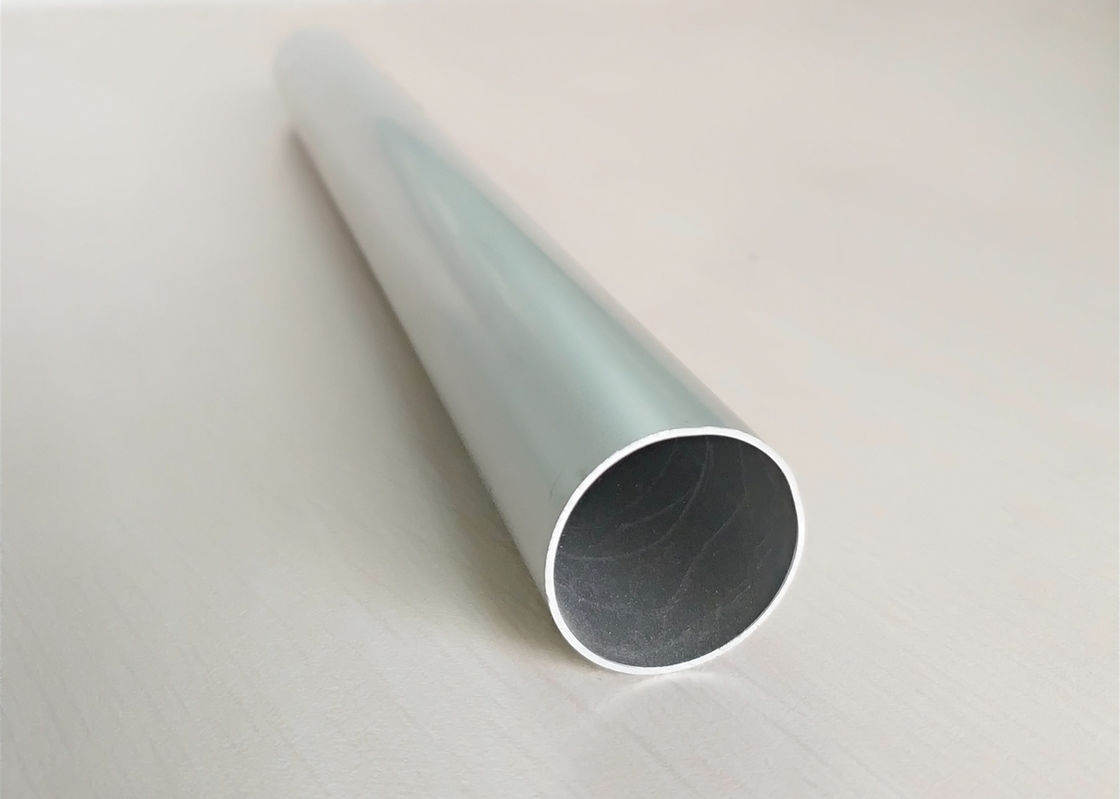

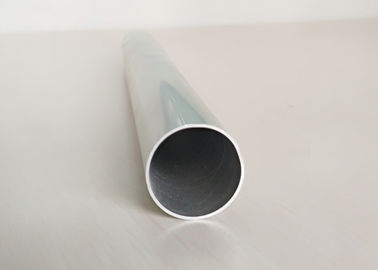

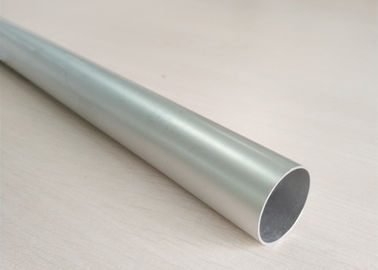

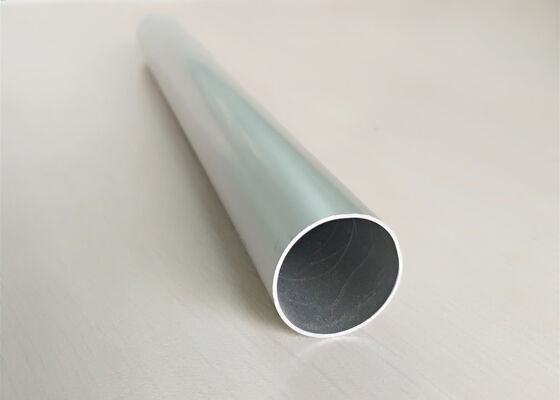

Mill Finished Extruded Aluminum Tube Profile Round Shaped Standard Export Packaging

Basic Properties
Place of Origin: China
Brand Name: Trumony
Certification: SGS, ISO9001-2008,En, Astmb, ASTM, JIS, GB/T
Model Number: TR-268
Trading Properties
Minimum Order Quantity: 5ton
Price: US Dollar+2500+Ton
Payment Terms: L/C, T/T
Supply Ability: 60, 000+Ton+Year
Tags

extruded aluminum profiles

stock aluminum extrusion profiles

profile aluminum extrusion
Specifications
Pin Hole: According To GB/T3198-2010 Packing: Standard Export Packaging
Technique: Extruded Material: Aluminum
Cnc machining or not: CNC Machining Application: Excavator,furniture,Auto /medical/agricultural/train/valve/textile,machine And AUTO
Tolerance: Customized Size: Customer's Requst
High Light:

aluminum radiator parts

,

aluminum car radiator
Product Description



Mill Finished Extruded Aluminum Tube Profile Round Shaped Standard Export Packaging



Features

The luster is luminous,

Withstand high heat and extreme cold,
Minimize cleanup and ensure food fresh.
Non-toxic, odorless, impermeable,

Environment friendly, recoverable and recyclable



Our advantage

Since 2004, we have rich experience in this industry in China;
Good reputation in household foil areas;

We start our productions from aluminum ingot,so we can control the quality as well;
We have our own development department for new material research;
Sample order is acceptable

All parts of ladder is self manufacturing, we have price advantage.
High performance cost ratio;
Good experience and cooperation with big client in the world;
With Certificate ISO9001-2008;

Fast delivery time;
Good communication skills, and good service and understandings for customers



Mechanical property
Alloy Code Temper Tensile Strength Rm(Mpa) Yield Strength(Mpa) Elongation(%)
TR-010,TR-020,TR-030,TR-040TR-050,TR-110,TR-310,TR-116,TR-316,TR-111,TR-313,TR-121,TR-131,TR-141,TR-150,TR-151,TR-156Etc. O 95-135* ≥35* ≥15*
H14 140-185 ≥125 ≥1.5
H24 140-185 ≥125 ≥3
H16 185-225 160 ≥1
H18 ≥185 —— ≥0.5
TR-166Etc. Tube material H24 185-235 ≥150 ≥8
TR-116,TR-316 Etc.tube material H14 140-185 ≥125 ≥3
H24 140-185 ≥125 ≥8



Chemical Composition
No Alloy Si Fe Cu Mn Mg Cr Zn V Ti
1 1050 ≤ 0.25 ≤ 0.40 ≤ 0.05 ≤ 0.05 ≤ 0.05 --- ≤ 0.05 ≤ 0.05 ≤ 0.03
2 1100 ≤ 0.95(Si+Fe) 0.05-0.20 ≤ 0.05 --- --- ≤ 0.10 --- ---
3 1197 ≤ 0.15 ≤ 0.20 0.40-0.55 0.10-0.20 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05 ≤ 0.05
4 3102 ≤ 0.40 ≤ 0.70 ≤ 0.10 0.05-0.40 --- --- ≤ 0.30 --- ≤ 0.10
5 3R03 ≤ 0.15 ≤ 0.15 ≤ 0.01 0.90-1.10 ≤ 0.03 ≤ 0.03 ≤ 0.05 ≤ 0.05 ≤ 0.05



Our chemical composition:

Alloy Si Fe Cu Mn Mg Zn Cr Ti code
8011 0.5-0.9 0.6-1.0 0.1 0.2 0.05 0.1 0.05 0.08 1




Our mechanical property:

Alloy Code temper Tensile Strength Yield Strength Rp0.2(Mpa) Extend Ratio
　 　
Rm(MPa) A50(%)
8011 O 60-100 ≥45 ≥4



All type can be customized made.
