Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser

MOQ:	500KG for mass quantity
Standard Packaging:	Export Standard Packing
Delivery Period:	30days including tooling time
Supply Capacity:	negotiation

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Trumony

Certification

Model Number

3003 series

Item:

Parallel Flow Aluminium Flat Tube

Grade:

3003/6061

Temper:

Application:

Raidator/ Condenser/ Evaporator/ Oil Cooler/ Intercooler/ Water Tank

Surface Treatment:

Mill Finished

100kg

Highlight:

3003 Aluminum Microchannel Tube

Condenser Aluminum Microchannel Tube

Brazing Aluminum Extruded Tube

Product Description

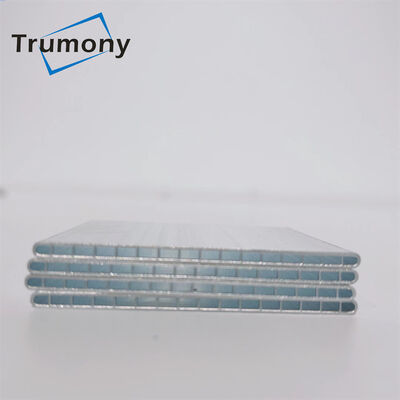

Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser

Aluminum parallel flow micro channel flat tube is widely used in heat exchangers of condensers, evaporators of auto air conditioning systems, and radiators in engine cooling systems. We can customize the aluminum channel cold tube according to customer blueprints, specifications or samples.

Commonly used material chemical composition

No.	Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	V	Ti
1	1050	≤0.25	≤0.40	≤0.05	≤0.05	≤0.05	---	≤0.05	≤0.05	≤0.03
2	1100	≤0.95(Si+Fe)		0.05-0.20	≤0.05	---	---	≤0.10	---	---
3	3102	≤0.40	≤0.70	≤0.10	0.05-0.40	---	---	≤0.30	---	≤0.10
4	3003	≤0.15	≤0.15	≤0.01	0.90-1.10	≤0.03	≤0.03	≤0.05	≤0.05	≤0.05

Supply state and mechanical properties

Alloy	Temper	Tensile Strength	Yield Strength	Elongation
1050	O/F/H111/H112	≥65MPa	≥20MPa	≥25%
1100	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3102	O/F/H111/H112	≥75MPa	≥20MPa	≥25%
3003	O/F/H111/H112	≥75MPa	≥20MPa	≥25%

Characteristics:
1. Low weight
2. Good thermal and electricity conductivity
3. Excellent corrosion resistance
4. High cycle reuse value
5. High surface quality
6. Narrow tolerance range

Application:
Beside increased global performances, an all-aluminium brazed heat exchanger using MPE will also present better corrosion resistance. MPEs are primarily used for Condensers Evaporators Oil coolers Radiators Heater cores .
Package: In coil or Straight with fixed length.
Surface Treatment : With Zinc spraying or without Zinc spraying.

Customized 3003 Parallel Flow Aluminium Flat Tube For Condenser 0
